Components of Search V2

The Search V2 UI is composed of web components called search components. This guide explains how to use the Search V2 UI search components. Follow along to learn about the different types of search components, their styling options, and extendable features.

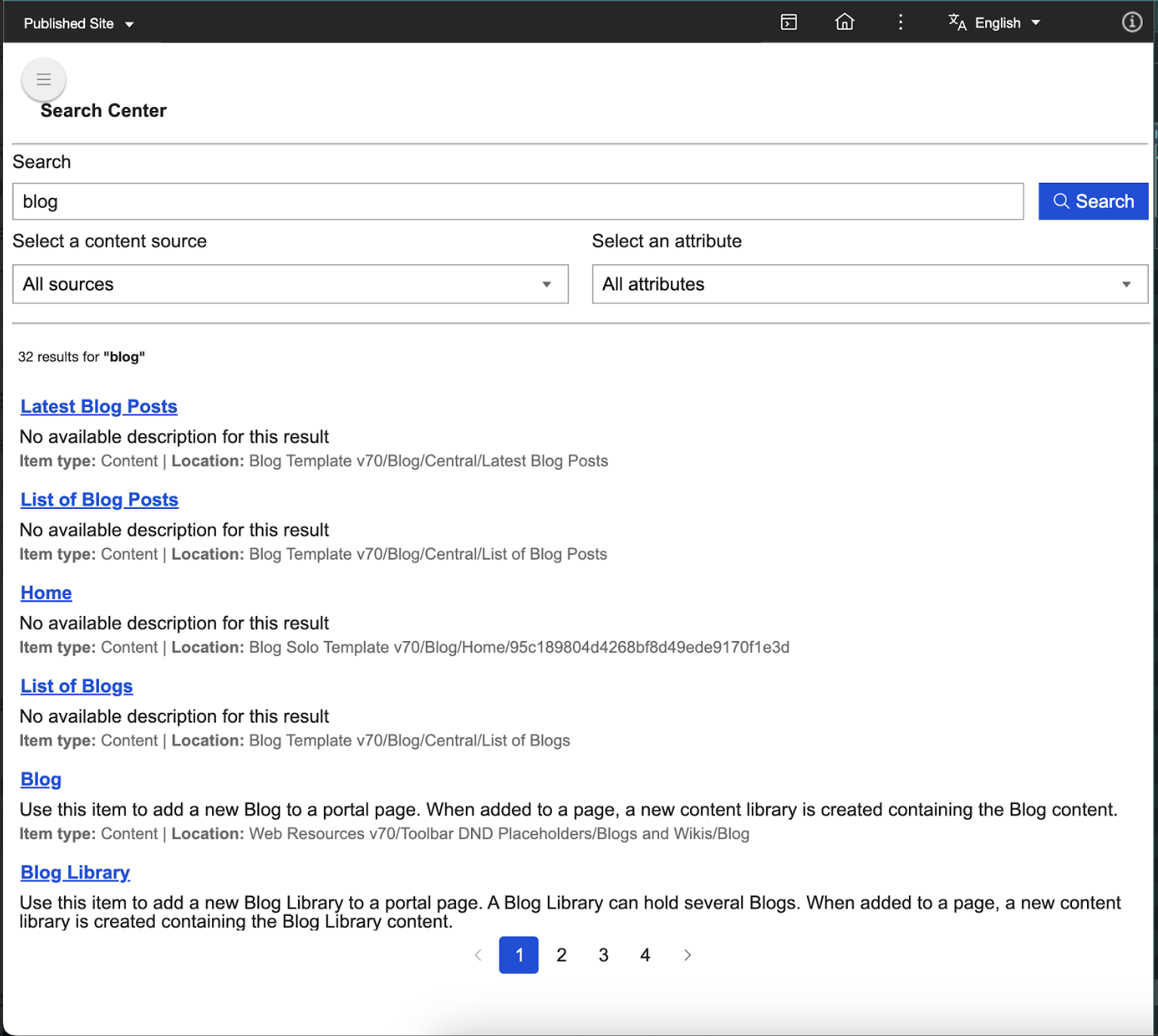

The default search component for Search V2 is designed to be user-friendly, customizable, and extendable. It offers intuitive search interactions, allows user-defined styling and extensions, and can be integrated anywhere in your application. See an example of the search component below.

Screenshot

Search component features and benefits

Search V2 components provide the following benefits:

Encapsulation: Styles and functionality are isolated from the rest of your application using Shadow DOM.
Reusability: Build once and reuse across different parts of your application.
Customizability: Use attributes, properties, and part selectors to customize components without altering their core code.

Search components overview

Search V2 components has two distinct types: Atomic Components (AC) and Functional Composite Components (FCC).

Atomic Components

Atomic Components (AC) are the smallest possible building blocks of the search functionality. These components include buttons, input fields, and chips, and are built using Web Components standards such as Shadow DOM for encapsulation and reusability. Refer to the table below each component for the list of compatible properties associated with them.

dx-ac-base-element: his class creates a foundational element for developing custom web components. It supports internationalization and localization, and uses the Shadow DOM to encapsulate its internal structure, ensuring high reusability.

Properties	type	Description	Default
id	String	A unique identifier for the component instance. This property is automatically assigned using a UUID generator when the component is instantiated.	Generated UUID value

dx-button: This customizable button component comes with internationalization support, conditional icon and text rendering, and isolated styling using Shadow DOM and CSS parts.

Properties	type	Description	Default
disabled	Boolean	Indicates whether the button is disabled.	false
outlined	Boolean	Indicates whether the button should be rendered with an outlined style.	false
imgurl	String	The URL of the image to be displayed as the icon of a button.	undefined
buttontext	String	Displays text on a button.	undefined
endicon	Boolean	Determines whether the image is displayed as an end icon instead of a start icon.	false
focused	Boolean	Indicates whether the button currently has focus. This property is managed internally.	false

dx-input-select: This flexible, accessible, and customizable component can handle a variety of user interactions and scenarios.

Properties	type	Description	Default
label	String	The label displayed for the dropdown. Defaults to a context-based message if not provided.	''
disabled	Boolean	Indicates whether the dropdown is disabled.	false
selectedValue	String	The currently selected value.	undefined
selectedId	String	The id of the currently selected option.	undefined
options	String, String[], OptionData[]	List of options to display in the dropdown. The options can be a JSON string, an array of strings, or an array of objects with id and name properties.	[]
field	DxSearchInputFieldType, String	The type of the input field used to determine default labels or handle specific behaviors. You can use `DxSearchInputFieldType` strings such as `contentSource` or `documentObjectType` or leave it blank.	''

dx-list: This component wraps an unordered list (<ul>) and uses a slot to insert content such as list items into the component. The part="unordered-list" attribute allows external styling of the <ul>.

dx-switch: This fully accessible and customizable custom component separates behavior (toggle state and events) from appearance (CSS styling through the dynamic part attribute). This component is currently not in use.

Properties	type	Description	Default
isChecked	Boolean	Indicates whether the switch is toggled on (true) or off (false).	false
isDisabled	Boolean	Indicates whether the switch is disabled.	false

dx-anchor: This versatile anchor component supports pagination and custom actions, and is designed for navigation menus and paginated lists.

Properties	type	Description	Default
url	String	Specifies the URL the anchor element navigates to.	''
weight	Number	Represents a custom weight value for the anchor. Ensure to use case-specific values.	0
title	String	Specifies the title attribute, providing additional information about the link.	''
name	String	The text content or label of the anchor element.	''
rel	String	Specifies the relationship between the current document and the linked document. Sample values include `noopener` or `nofollow`.	''
disabled	Boolean	Indicates if the anchor element is disabled.	false
selected	Boolean	Indicates if the anchor is currently selected and is typically used in scenarios such as pagination.	false
value	Number	Represents a custom numeric value associated with the anchor. Ensure to use case-specific values.	0
mode	String	Specifies the mode of the anchor, controlling its behavior and styling. You can use the mode values `pagination` or `result-title`, or leave it blank.	''
imgurl	String	Specifies the URL of an image to be displayed inside the anchor if no text label is provided.	''
target	String	Specifies where to open the linked document. Sample values include `_blank` or `_self`.	undefined

dx-chip: This component allows you to display a "chip" or "tag" with a numerical count, such as notification counters, tag lists, or pill-style labels. It also comes with built-in localization support.

Properties	type	Description	Default
name	String	Specifies the name or label of the chip.	''
count	Number	Represents a numeric count associated with the chip.	0
showChipCount	Boolean	Determines whether `count` should be displayed alongside the chip name.	false

dx-input-textfield: This component allows you to create rich input fields with enhanced user experience such as search bars or forms. You can also use it for fields where text input with optional icons and labels is required.

Properties	type	Description	Default
value	String	The current value of the textfield.	''
type	String	Specifies the input type. Sample values include `text`, `password`, or `email`.	'text'
label	String, undefined	The label displayed above the textfield.	undefined
placeholder	String	The placeholder text displayed inside the textfield.	''
disabled	Boolean	Indicates whether the textfield is disabled.	false
iconStartUrl	String, undefined	URL of the icon displayed at the start of the textfield.	undefined
iconEndUrl	String, undefined	URL of the icon displayed at the end of the textfield.	undefined
field	DxSearchInputFieldType, String	A field identifier for the input that is useful in custom events or associating the input with specific data. You can use the `DxSearchInputFieldType` string `queryString` or provide your own field name.	''

dx-search-center-layout: This customizable web component provides a structured layout for a search interface. It includes slots for adding content, such as a header, search input, and search output.

dx-toggle-button: This component supports customizable icons for each button and adjusts its style based on the selection and outlined setting. It includes separate styles for selected and unselected buttons and allows easy integration into other UI components.

Properties	type	Description	Default
disabled	Boolean	Determines if the button is disabled.	false
outlined	Boolean	Indicates whether the button should be rendered with an outlined style.	false
selectedValue	String	The currently selected value of the toggle button.	''
iconUrls	String[]	Array of URLs for the icons displayed on the buttons.	[]
values	String[]	Array of values corresponding to each button's selection state.	[]

dx-avatar: This component allows you to customize your avatar's appearance and uses placeholder assets if you have not provided specific URLs. The renderAvatarContent method dynamically decides what to render based on the variant. This component is currently not in use.

Properties	type	Description	Default
variant	String	Defines the avatar's visual variant. Sample values include `avatar-letter`, `avatar-icon`, or `avatar-img`.	undefined
imgUrl	String	The URL of the image to be displayed as the avatar when the variant is set to `avatar-img`.	undefined
iconUrl	String	The URL of the icon to be displayed as the avatar when the variant is set to `avatar-icon`.	undefined
avatarText	String	The text to be displayed in the avatar when the variant is set to `avatar-letter`.	undefined

dx-header: This component offers a flexible and responsive header solution with various customization options and localization support.

Properties	type	Description	Default
color	String	Sets the color for the header's text and other elements.	'rgba(0, 0, 0, .32)'
title	String	The title displayed in the header.	''
showBackIcon	Boolean	Determines whether the back icon is shown.	false
isSideNavOpen	Boolean	Indicates whether the side navigation is open.	false
disabled	Boolean	Determines whether certain components in the header are disabled.	false
variant	HEADER_VARIANT	The predetermined structure and styling of the header according to its use-case. You can use the value `header-endUser`.	undefined

dx-list-item: This component allows you to mark items as selected and apply different styles accordingly. It also includes a slot element, allowing you to insert content into the item when the component is used.

Properties	type	Description	Default
key	String	A unique key for the list item that is typically used to identify it within a list.	''
isSelected	Boolean	Used to track whether the list item is selected.	false

dx-svg-icon: This component allows you to display scalable vector icons with customizable colors and sizes. You can use this component for dynamic UIs where the icon might need to change based on context or state.

Properties	type	Description	Default
color	String	The color of the SVG icon. If `useCurrentColor` is set to `false`, this color will be applied directly to the SVG's fill.	''
size	String	The size of the icon. Used for both width and height.	''
useCurrentColor	Boolean	Determines whether the icon will inherit the color of the parent element's color property (using CSS currentColor).	false
icon	TemplateResult	The SVG icon content passed as a template to render the icon.	undefined

Functional Composite Components

Functional Composite Components (FCC) combine ACs to deliver higher-level functionality, such as displaying search results or managing pagination. Refer to the table below each component for the list of compatible properties associated with them.

dx-circular-progress: This component is a customizable radial progress bar that uses SVG graphics and CSS animations to display a loading state. It supports various styling options such as size, stroke width, and color, and can be integrated into any web application to visually indicate progress.

Properties	type	Description	Default
size	Number	The diameter of the circular progress element.	100
strokewidth	Number	The width of the circle's stroke.	4
trailcolor	String	The color of the inactive portion (trail) of the circle.	#D6D6D6
valuecolor	String	The color of the active portion of the circle.	#0550DC

dx-search-input-query: This component allows you to customize a set of properties related to search input such as disabling the input and defining placeholder and label text. It also checks the URL for existing query parameters on load, making it ideal for dynamic search-driven applications.

Properties	type	Description	Default
field	String	The field name for the search input.	''
queryString	String	The query string value for the search input.	''
disabled	Boolean	Indicates whether the input field is disabled.	false
label	String	The label for the input field.	''
placeholder	String	The placeholder text for the input field.	''

dx-search-output-item-attribute: This component is a flexible and reusable element that you can use to display specific attributes of search results. By consuming the outputContext, it dynamically renders different types of information, such as links, document types, and descriptions based on the attribute specified. This allows the component to be integrated into larger search result display systems with different content sources and attributes.

Properties	type	Description	Default
attribute	String	The attribute to fetch from the search result item.	''
index	String	The index of the search item in the result list.	''
outputContext	OutputContextType	Consumed from context and contains the search result data. This property is internally managed by the component and should not be used.	undefined

dx-fcc-base-element: This is a base class in the FCC framework that integrates the Broadcast Channel API for component communication and ensures no shadow DOM is used. It also cleans up resources when components are disconnected.

dx-search-input-scope: This LitElement-based component allows you to manage and display a list of content sources for a search input. It fetches data from an external service, allows you to select a content source, and updates the search scope dynamically. You can use it as part of a larger search interface to provide filtering options based on available content sources.

Properties	type	Description	Default
field	String	The field associated with the input.	''
contentSources	DxSearchGetContentSource[]	List of content sources fetched from the service. This property is internally managed by the component and should not be used. To be converted to internal state in the next release.	[]
scope	String[]	The current selected scope or content source. This property is internally managed by the component and should not be used. To be converted to internal state in the next release.	['All Sources']
disabled	Boolean	Indicates whether the input is disabled.	false
label	String	The label for the input field.	''
placeholder	String	The placeholder text for the input field.	''

dx-search-output-pagination: This flexible pagination component supports multiple pagination types, including infinite scroll and numbered pagination, and can handle different languages and locales. It also allows debouncing scroll events and a clean separation of concerns, making it efficient and maintainable.

Properties	type	Description	Default
outputConfig	Object	Contains the search configuration, including the current page, page size, total number of items, and a function to load a new page (`loadPage`). It is injected from the `outputContext`. This property is internally managed by the component and should not be used.	{}
type	SEARCH_PAGINATION_TYPE_ENUM	Defines the type of pagination. Sample values include `numbered-pagination`, `show-more-button`, or `infinite-scroll`.	''

dx-search-input-button: This customizable search button component uses the Broadcast Channel to trigger search actions on click. It supports properties to disable the button and change its text. Debouncing is also used to optimize search requests, making it a reusable UI element for web applications.

Properties	type	Description	Default
disabled	Boolean	Indicates whether the button is disabled.	false
buttontext	String	Custom text to display on the button. Reverts to default localized text if not provided.	''

dx-search-input-type: This dynamic dropdown component allows you to select document types in a search interface. Built with LitElement for efficient rendering and reactivity, it fetches searchable fields from a backend service, updates the selected document type, and communicates changes using searchChannel to update search parameters.

Properties	type	Description	Default
field	String	The field name for the search input.	''
documentObjectType	String	The selected document object type.	''
disabled	Boolean	Indicates whether the search input is disabled.	false
label	String	The label text for the search input.	''
placeholder	String	The placeholder text for the search input.	''
options	OptionData[]	The list of options for the input select dropdown. This property is internally managed by the component and should not be used.	[]

dx-search-output: This search result display component integrates with backend search services. It manages various search states such as loading, results, no results, or error, and updates the UI dynamically based on search parameters. It is designed for applications that require real-time search with pagination, filtering, and error handling.

Properties	type	Description	Default
templateItemId	String	The ID of the template element used to render individual search results.	''
templatePaginationId	String	The ID of the pagination template element used for paginated search results.	''
searchValue	String	The current search query or keyword entered by the user.	''
documentObjectType	String	The attribute in the document object being searched.	''
scope	String[]	A list of content source IDs that limit the search query.	[]
searchResults	DxSearchResults	Contains the search results, including hit count, individual hits, and scores.	{ hits: { total: { value: NaN, relation: 'eq' }, max_score: 0, hits: [] } }
isLoading	Boolean	A flag that indicates whether search results are being loaded.	false

Styling the search components

This section explains the default styles for search components and how to customize them.

Default styling

Each component comes with default styles. See the following examples of different default styles below.

/* for dx-search-center-layout */
dx-search-center-layout::part(main) {
  display: flex;
}
/* for dx-input-textfield */
dx-input-textfield::part(div) {
  width: 100%;
  position: relative;
}
/* for dx-button */
dx-button::part(button) {
  @include button;
}
/* for dx-circular-progress */
@keyframes rotateCircularProgress {
  100% {
   transform: rotate(360deg);
  }
}
/* for dx-header */
dx-header::part(div) {
  width: 100%;
  position: relative;
}
/* for dx-chip */
dx-chip::part(chip-div) {
  background-color: $BLACK8P;
  border-radius: 4px;
  display:inline-flex;
  padding:8px 8px 8px 8px;
  align-items: center;
  height: 16px;
}
/* for dx-avatar */
dx-avatar::part(avatar-div) {
  height: 32px;
  width: 32px;
  border: 1px solid $avatar-border-color;
  box-sizing: border-box;
  display: flex;
  justify-content: center;
  align-items: center;
}
// for the input select fields
dx-search-center-layout .search-input-div {
  display: flex;
  flex-direction: row;
  justify-content: space-between;

  dx-search-input-scope,
  dx-search-input-type {
    display: flex;
    align-self: center;
    max-width: 49%;
    width: 49%;
  }
}
// for the input query field and button
dx-search-center-layout div.search-input-div {
  display: flex;
  flex-direction: row;
  justify-content: space-between;

  dx-search-input-query {
    display: flex;
    align-self: center;
    width: calc(100% - 125px);
    max-width: calc(100% - 125px);
  }

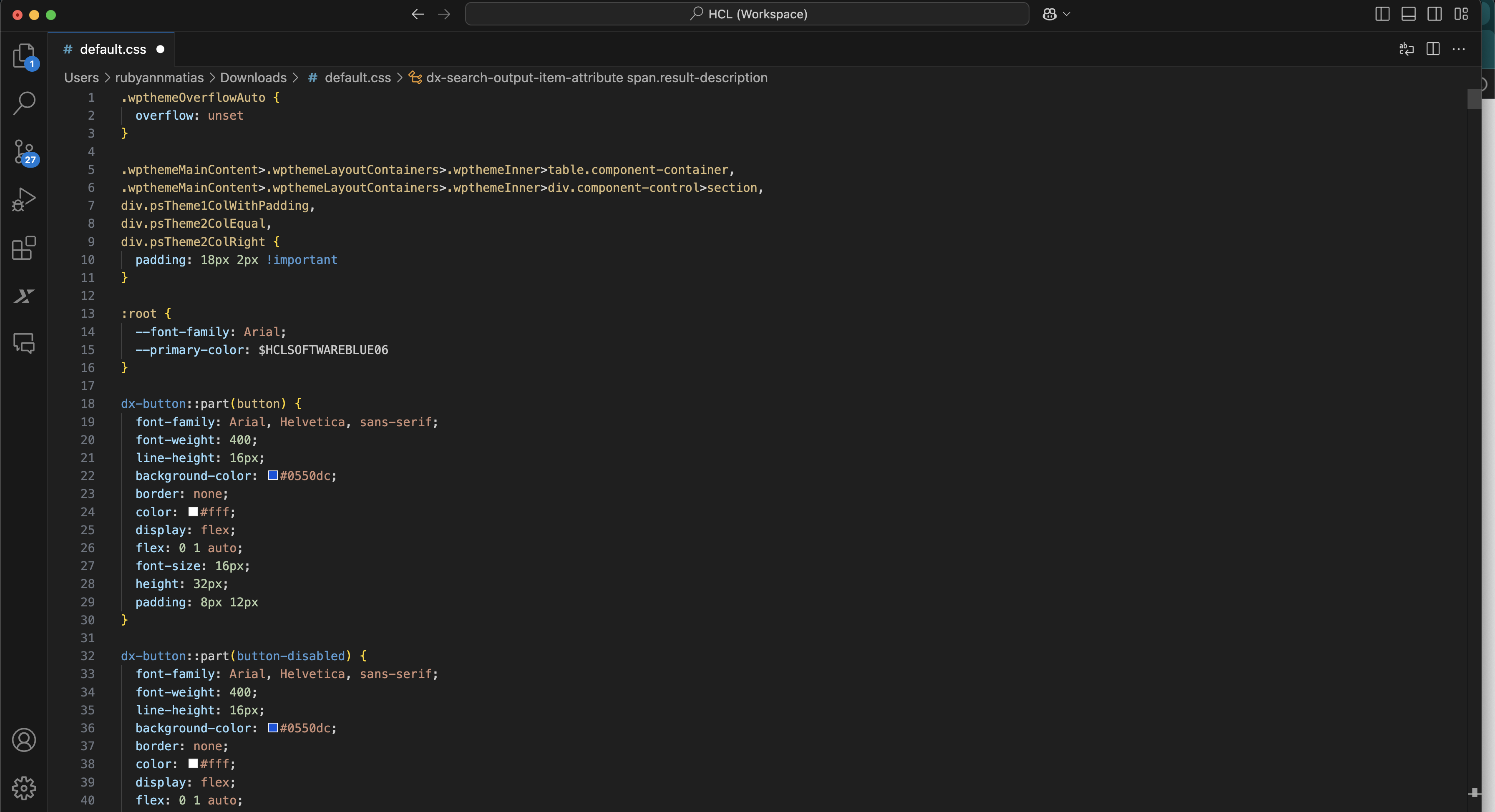

Style customization

You can override styles by targeting the component's class names. Other components can be overridden in a similar manner. Refer to the styling examples below for dx-button and dx-input-textfield.

Note

The part attribute is used to name parts of a shadow tree, which can then be styled from outside the shadow DOM using the ::part() pseudo-element. This allows you to apply CSS styles to shadow tree elements from the parent DOM.

/* for dx-button */
dx-button::part(button-start-icon) {
  color: #FBCD00;    /* change the color as per your requirements and also other things can be changed */
  height: 16px;
  margin-right: 4px;
  width: 16px;
}
/* for dx-input-textfield */
dx-input-textfield::part(label) {
  @include font-default;
  width: 100%;
  margin-bottom: 16px;
  display: red;
  color: #AFC002;
}

Theme modules

Search components are provided using theme modules, allowing users to create custom stylesheets for all components. This flexibility is ideal for adapting the search functionality to match your application's design. For more information about themes and skins in DX, refer to Developing themes and skins.

Getting the default theme modules

You can use the default theme modules (CSS and JS files) provided to you as-is, or customize it to suit your needs. Follow these steps to get the provided theme modules for the Search V2 UI on your own DX deployment instance.

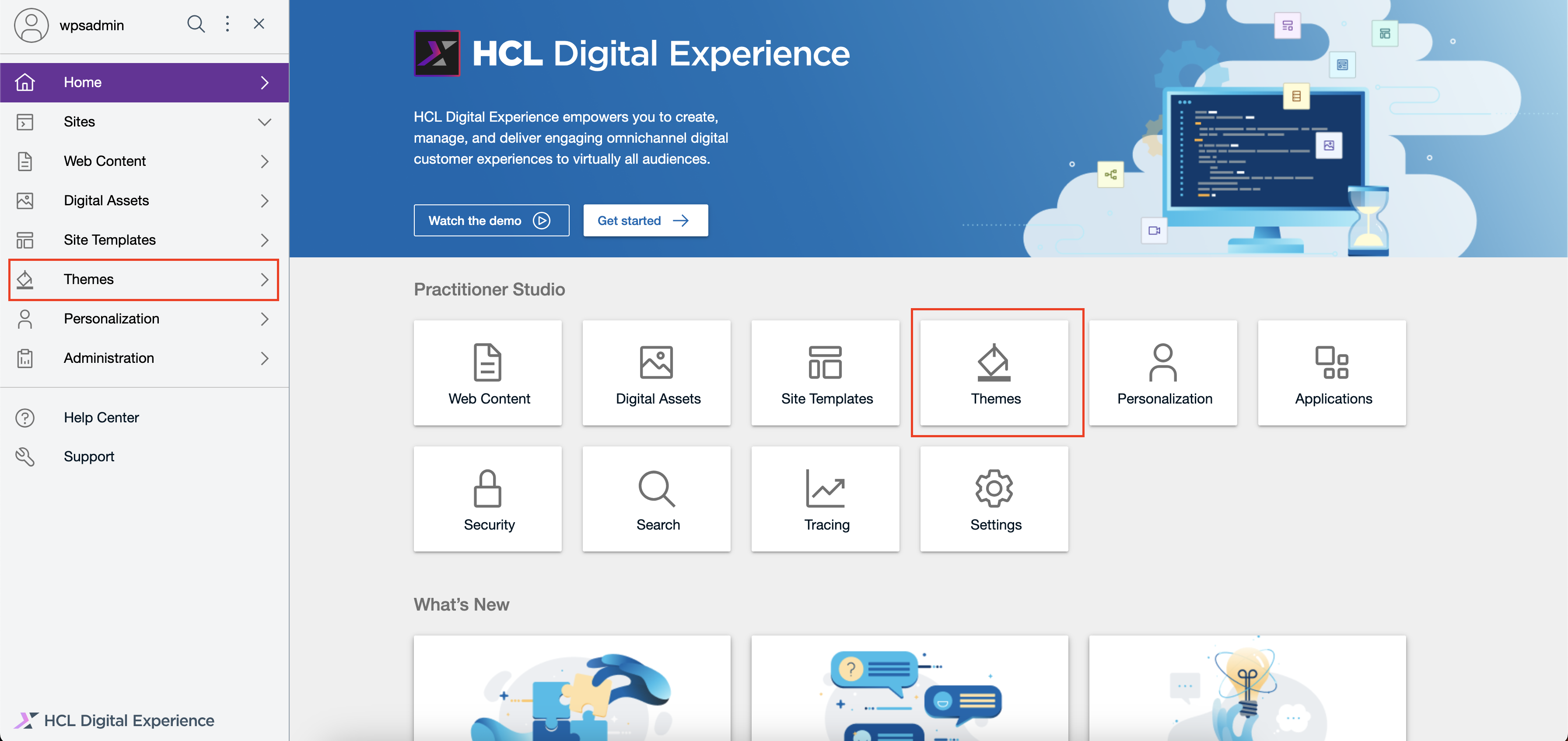

Log in to your HCL DX 9.5 platform then select Themes from the Practitioner Studio homepage or side navigation panel.

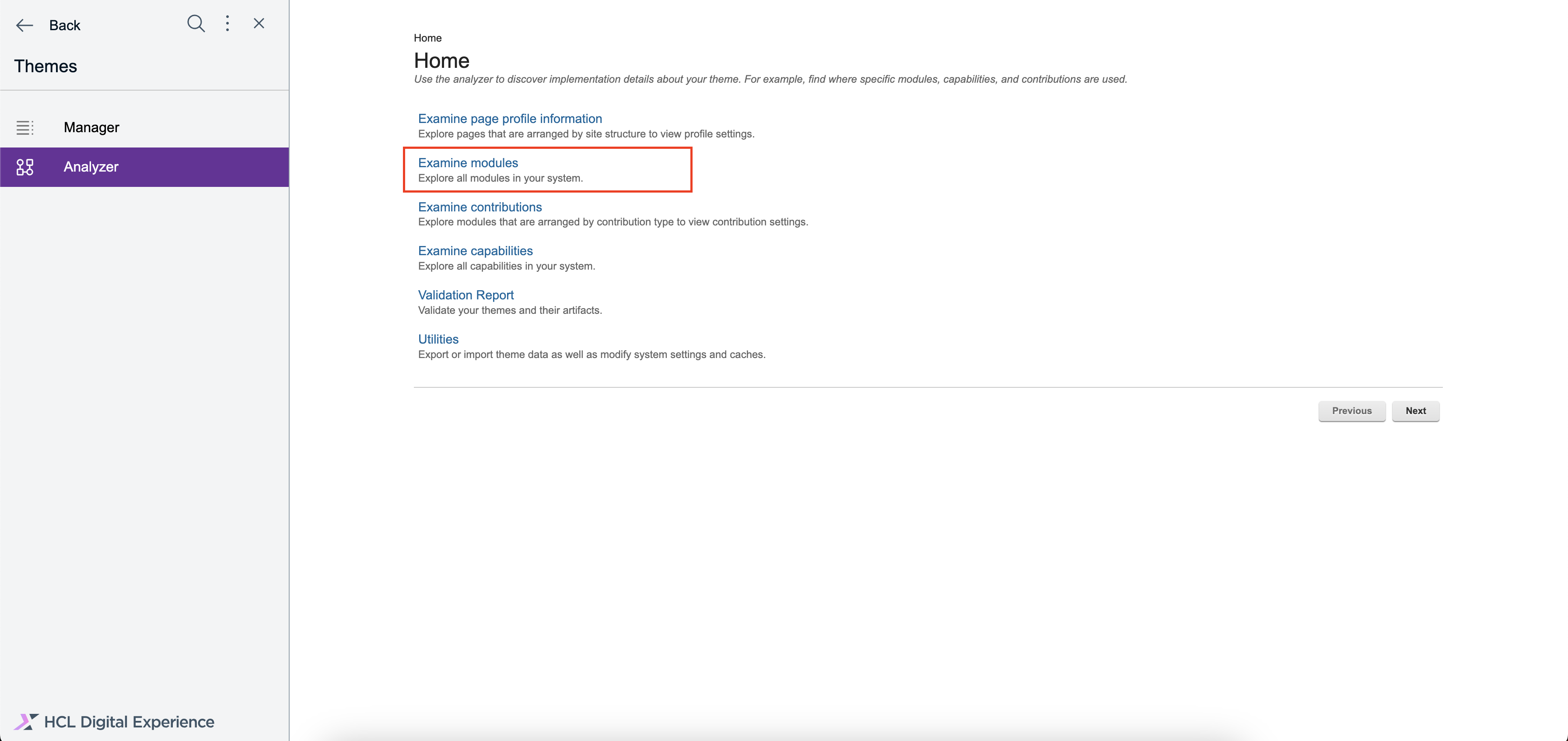

In the side navigation panel, go to Analyzer then click Examine modules.
Click Examine all modules.

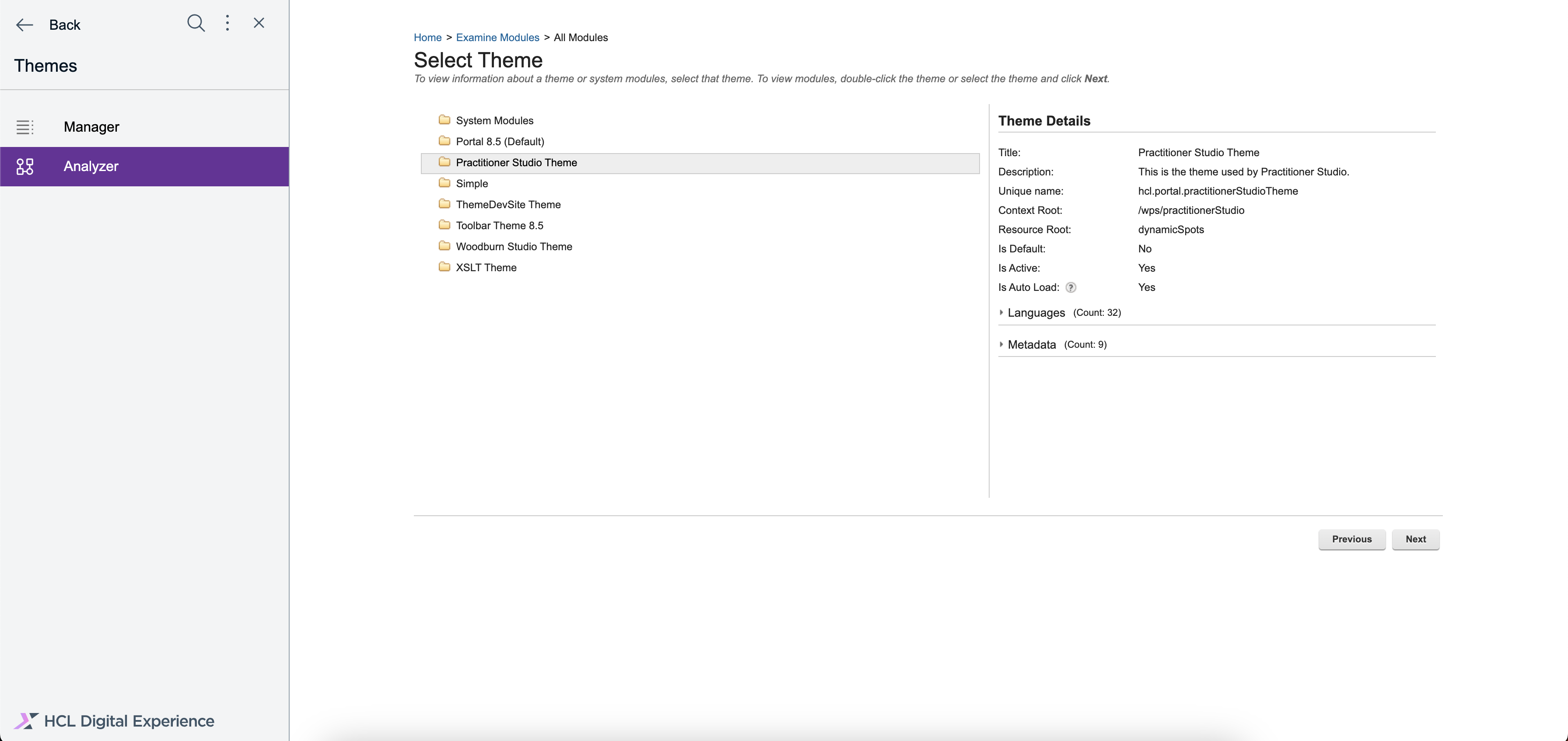

Double-click the Practitioner Studio Theme module.

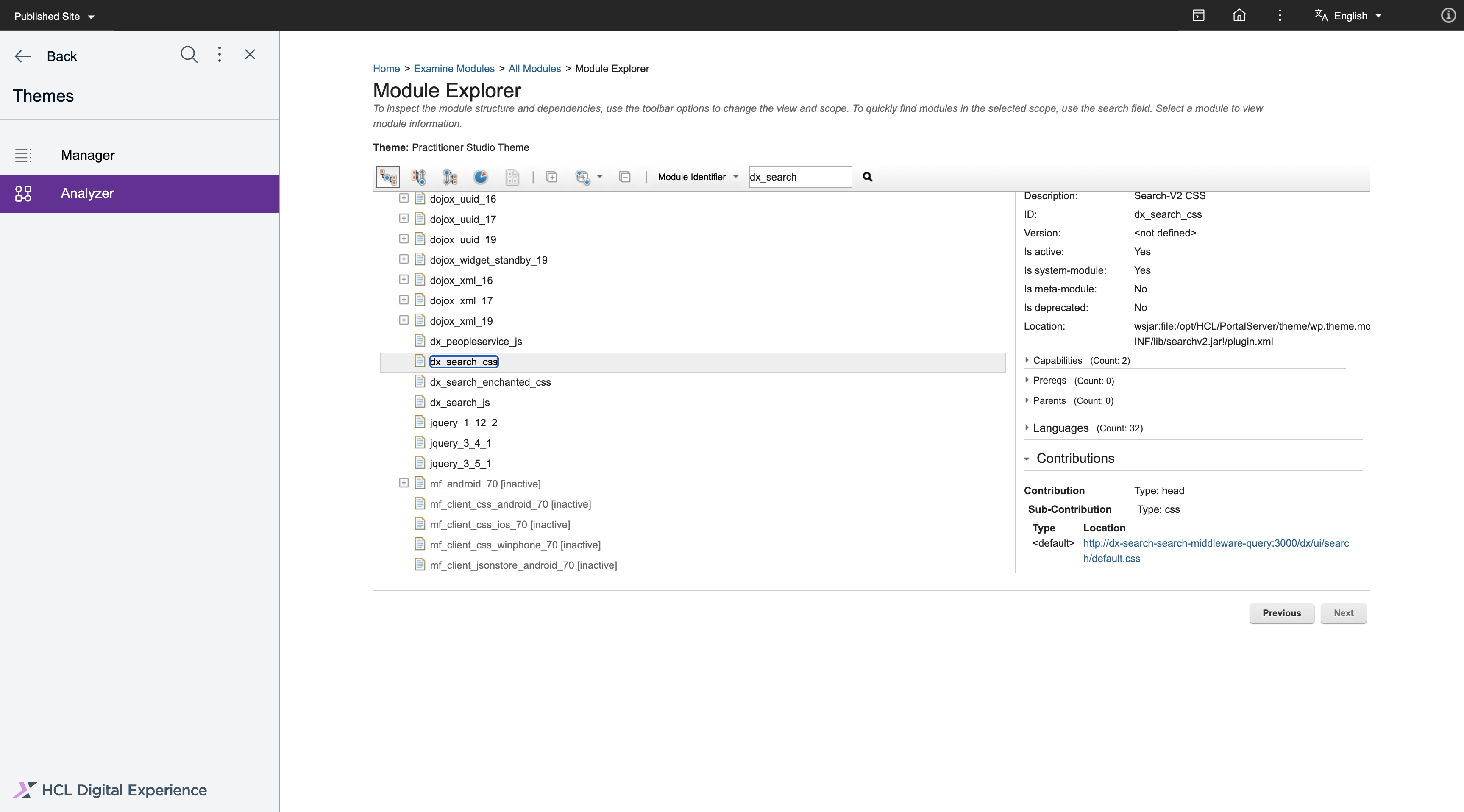

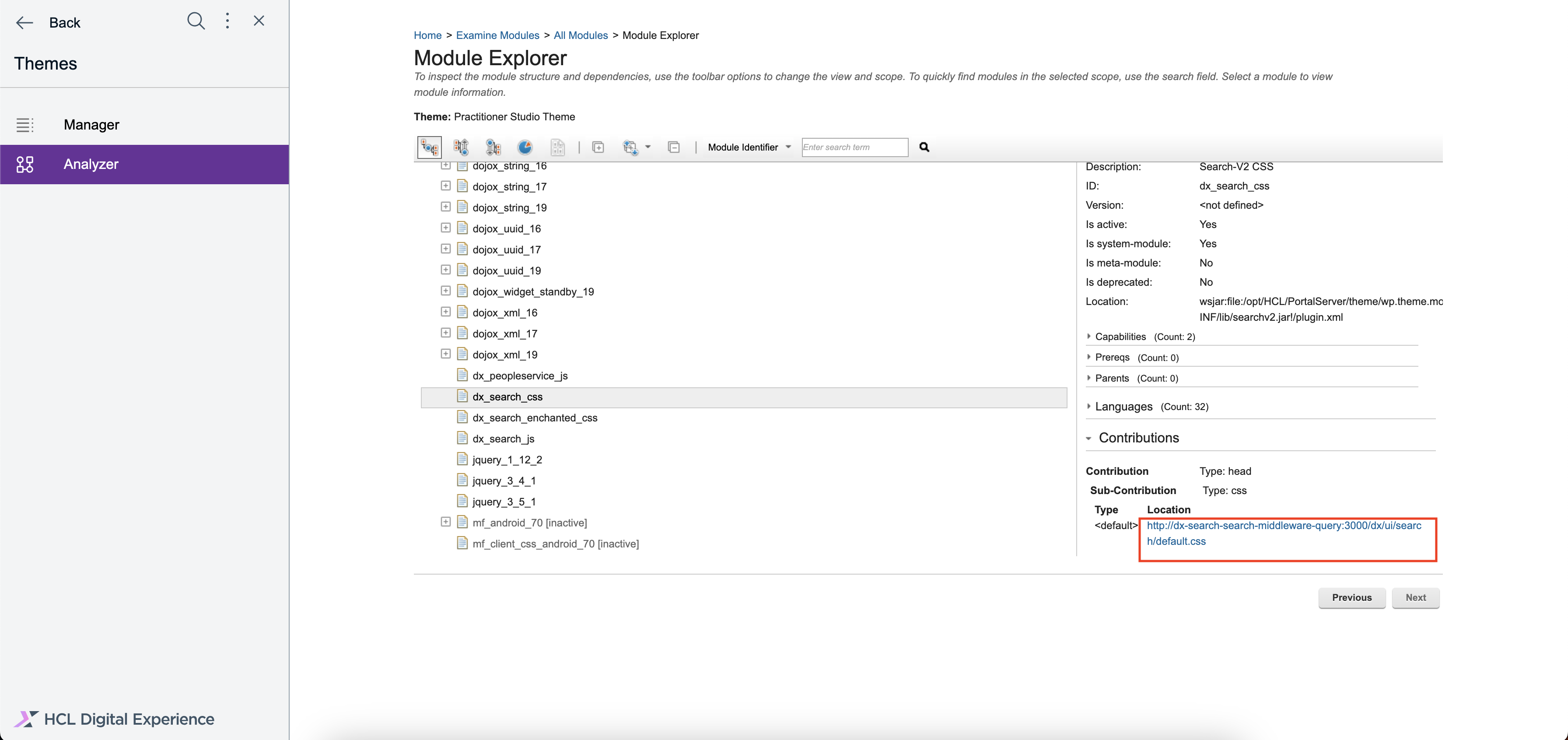

Expand the System Modules folder then locate and click the dx_search_css file.
On the right-side panel that appears, scroll down and click Contributions.

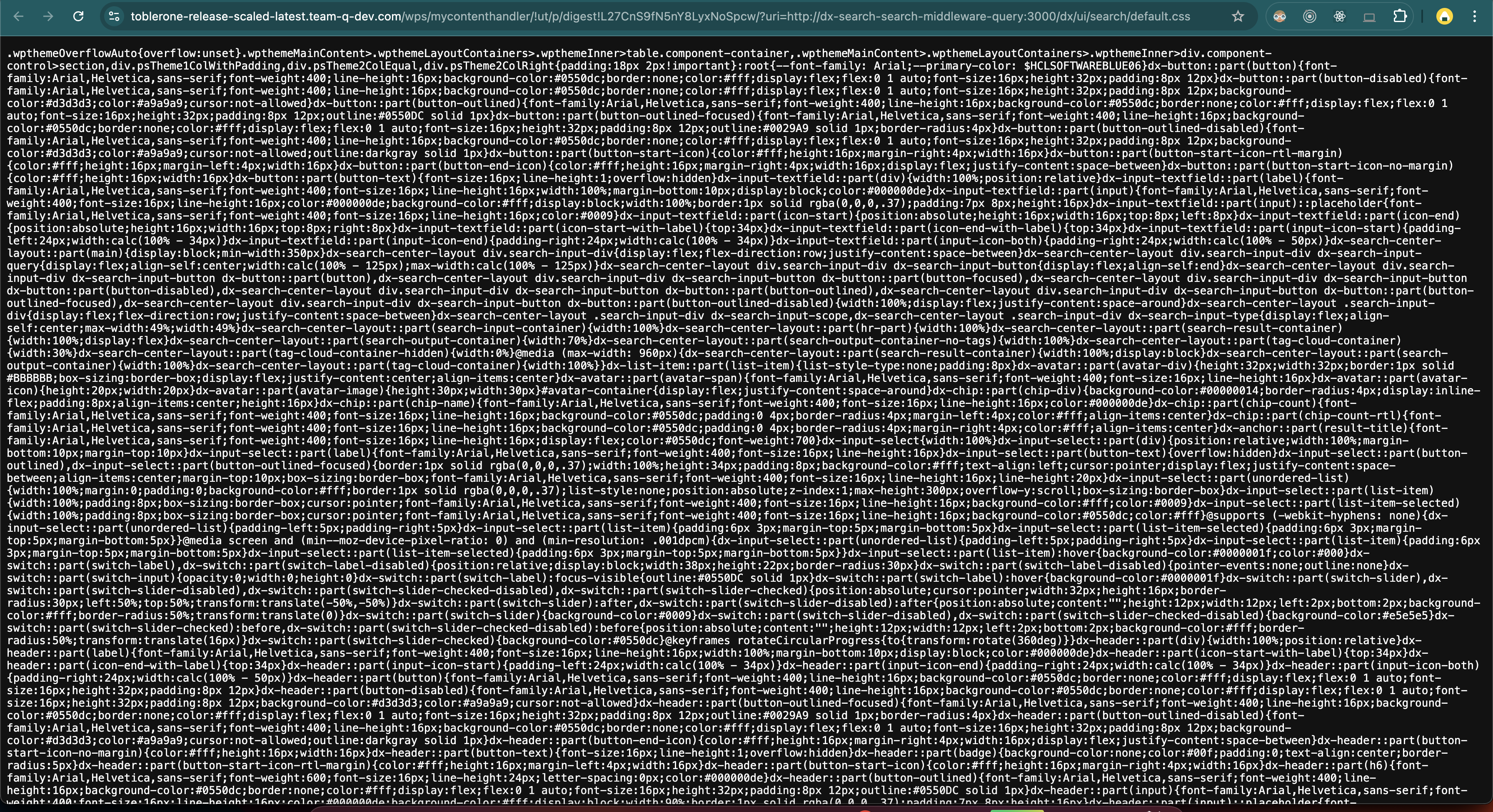

Click the Location URL to view the CSS file.

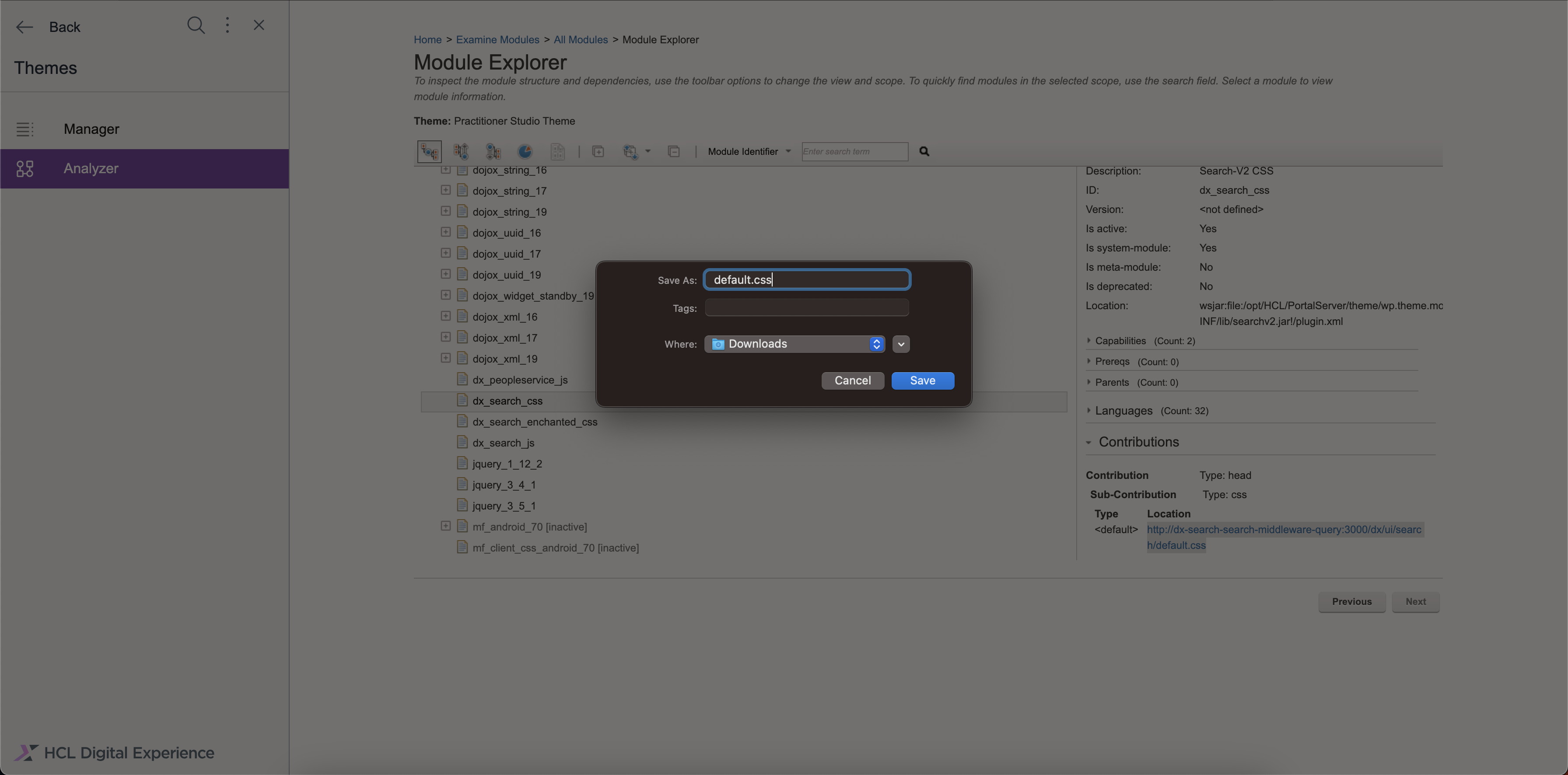

Right click on the Location URL then click Save Link As... and name the file default.css.

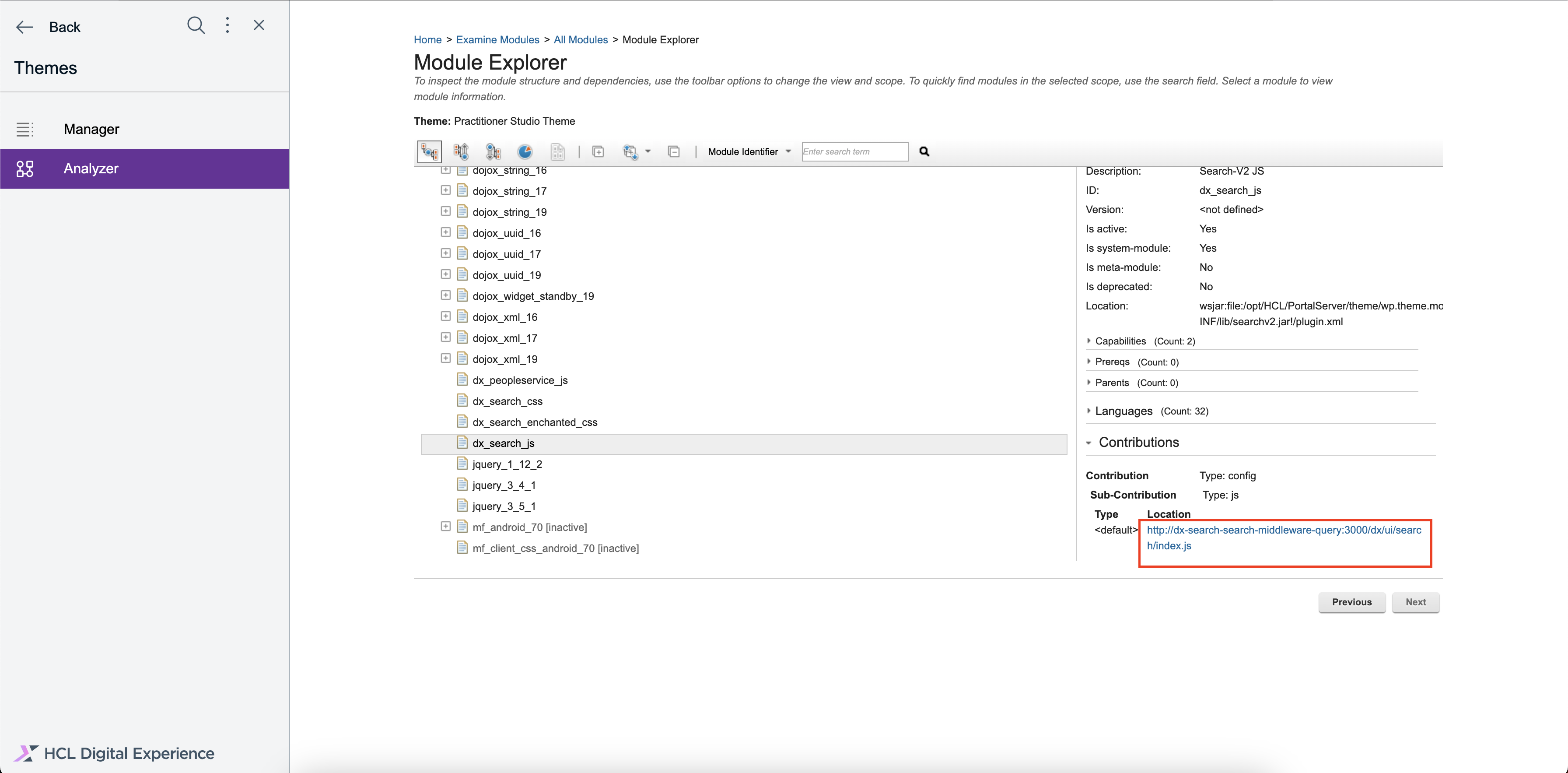

Go back to the System Modules folder then locate and click the dx_search_js file.
On the right-side panel, scroll down and click Contributions again.

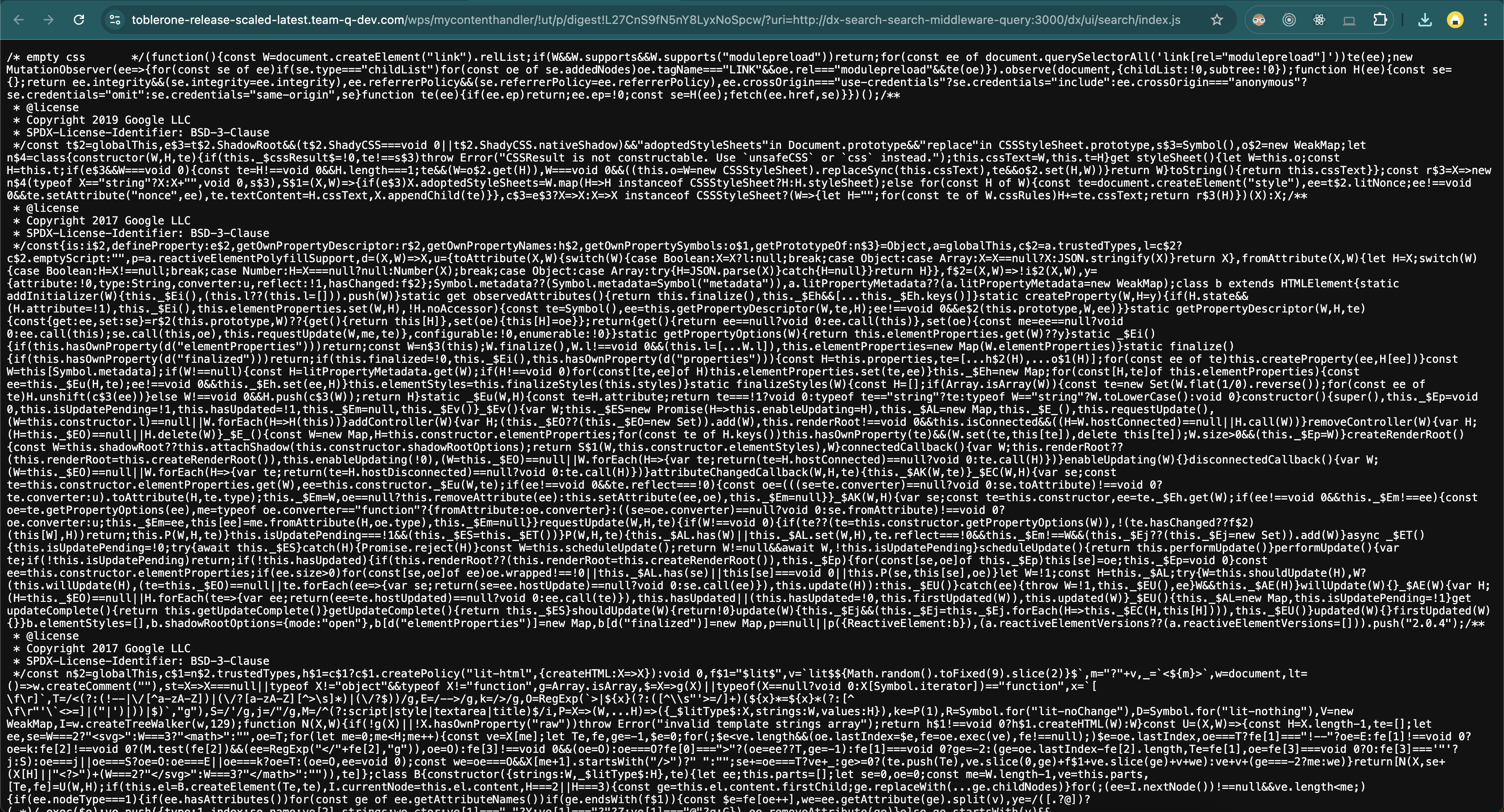

Click the Location URL to view the JS file.
Right click on the Location URL then click Save Link As... and name the file index.js.

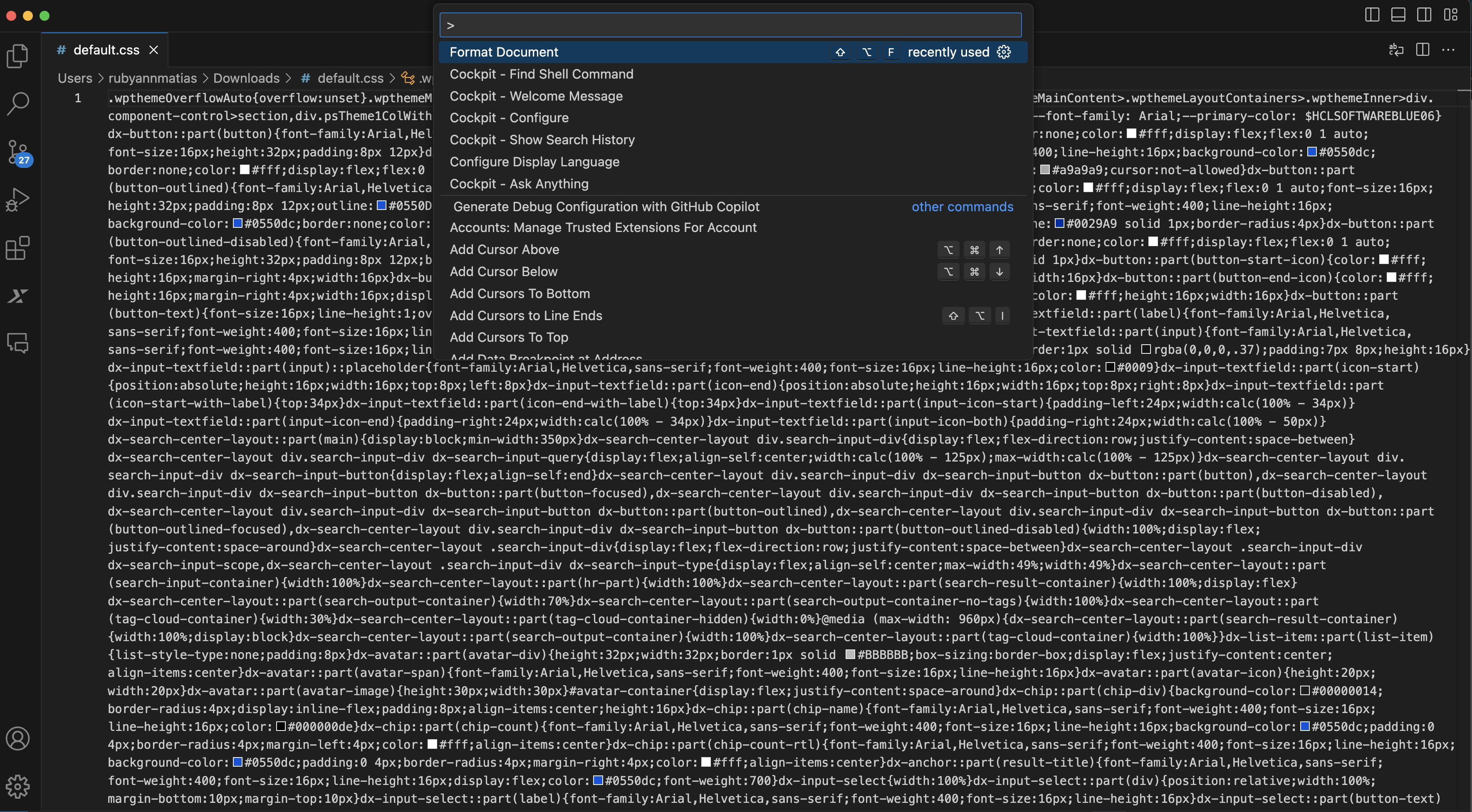

Open the default.cssfile in a code editor such as Visual Studio Code then open the Command Palette. You can open the Command Palette by pressing Cmd + Shift + P for Mac, or Ctrl + Shift + P for Windows.
In the Command Palette, enter > Format Document to format the CSS file in a more structured view. This allows you to read and inspect the code more easily so you can override the styles to your liking. For more information, refer to Styling the search components.

See the sample view of the formatted CSS file.

Using and customizing the theme modules

Follow these steps to use the theme module files you downloaded on your new or existing theme pages.

Note

Ensure you have downloaded the dx_search_css and dx_search_js files from Getting the default theme modules and saved the files as default.css and index.js respectively.

Open the default.css file and update the styles in the file as needed.
You can also create your own CSS file, such as custom-theme.css, where you can add your overrides, using the default.css as your guide for the base styles.

Link the default and custom CSS files in your application's HTML code as follows.

  <link rel="stylesheet" href="/path/to/default.css">
  <link rel="stylesheet" href="/path/to/custom-theme.css">

Download the default theme CSS dx_search_js from the provided location as index.js.
Add the script to your application's html head.
```
  <script type="module" src="/path/to/index.js"></script>
```
See the sample customized CSS code which changed the background color dx-search-center-layout component.
```
dx-search-center-layout::part(main) {
    background-color: #f0f0f0;
}
```

Communication between components using the Broadcast Channel API

Search V2 utilizes the Broadcast Channel API for its components. The Broadcast Channel API provides real-time synchronization, updating search search results when a new query is entered. It has a decoupled design that allows FCC components to work independently and communicate without direct references.

This API also enables seamless communication between different FCC components, even when they are placed in separate areas of your application such as themes, JSPs, portlets, or WCM. This functionality is already present in the provided JS theme module.
