Configuring HCL Leap for integration with HCL DX

This page provides information on how to configure the integration of HCL Leap with the existing Digital Experience (DX) environment.

Access Layer for HCL DX and HCL Leap

You have two options for implementing the Access Layer in the DX deployment and Leap: Ingress and Gateway API. Choose the option that fits your specific needs and preferences.

Ingress for HCL DX and HCL Leap

Refer to the following steps to implement a generic Ingress on your Kubernetes cluster for use with DX and Leap. The actual implementation might vary depending on the cluster's setup and configuration.

Prerequisites

Ensure you follow the guidelines provided in the optional Ingress documentation to set up Ingress for DX.

Implementing Ingress for HCL DX and HCL Leap

  1. Create a separate Ingress resource for Leap or extend the existing DX Ingress configuration. In Kubernetes, Ingress resources manage how external HTTP(S) traffic is routed to services within the cluster. You can either define a dedicated Ingress for Leap or incorporate its routes into the existing DX Ingress.

  2. Ensure the Ingress resource is configured to match Leap’s deployment path. The specified path (for example, /apps) should align with Leap’s context route so that incoming requests are correctly routed to the Leap service as accessed by end users.

The following YAML file demonstrates how to define an Ingress resource that routes traffic to the Leap backend service based on a specific path (for example, /apps):

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
    name: custom-routes
spec:
    ingressClassName: nginx
    tls:
    - secretName: dx-tls-cert
        hosts:
        - your-kube-deployment.com
    rules:
    - host: your-kube-deployment.com
        http:
        paths:
        - path: /apps
            pathType: Prefix
            backend:
            service:
                name: leap-deployment-leap
                port:
                number: 9080
  • The metadata section identifies the Ingress resource.
  • The spec section outlines the routing configuration.
  • The tls block sets up HTTPS for the specified domain.
  • Within the rules section, requests to the /apps path (including sub-paths) for the defined host are directed to the Leap service deployed in the cluster.

Gateway API for HCL DX and HCL Leap

Refer to the following steps to configure the optional Gateway API for DX and Leap. The Gateway API allows you to route requests to both products under the same hostname, enhancing the deployment's efficiency and management.

Prerequisites

Ensure you follow the guidelines provided in the optional Gateway API documentation to set up the Gateway API for HCL DX.

Implementing Gateway API for HCL DX and HCL Leap

  1. Create a separate Gateway API resource for Leap or extend the existing DX Gateway configuration. The Gateway API offers a more flexible and expressive approach to traffic management than traditional Ingress. Consolidating routing for both DX and Leap under a single configuration can simplify access layer management.

  2. Ensure the Gateway API configuration accurately reflects the context route used in the Leap deployment (for example, /apps). This ensures that incoming requests to that path are properly routed to the Leap backend service.

The following YAML file demonstrates how to define a Gateway API HTTPRoute resource for routing requests to the Leap backend service:

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: leap-http-api-route
spec:
  parentRefs:
  - name: gateway
    sectionName: https
  hostnames:
  - your-kube-deployment.com
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /apps
    backendRefs:
    - name: leap-deployment-leap
      port: 9080
  • The metadata section assigns a name to the HTTPRoute resource.
  • The spec section outlines the routing configuration.
  • The parentRefs section links the route to a specific Gateway and its section (for example, https).
  • The hostnames section indicates the domain this route is intended for.
  • Within rules, the matches block defines the path prefix condition (such as /apps)
  • The backendRefs section specifies the target backend service and port where Leap is hosted.

Configuring HCL Leap for integration with HCL DX

You can enable single sign-on (SSO) between HCL Leap and HCL Digital Experience (DX) in Kubernetes by using either the Lightweight Third-Party Authentication (LTPA) protocol or the modern OpenID Connect (OIDC) protocol.

Implementing LTPA SSO

Note

You can set up LTPA SSO using the Configuration Sharing feature described in Configuration Sharing for co-deployments. This method simplifies the process by automatically sharing LTPA keys between DX and Leap. If you prefer to manually configure LTPA SSO, follow the steps outlined in this section.

This guide explains how to enable SSO between HCL DX and HCL Leap on Kubernetes using LTPA. The process works by sharing a single LTPA encryption key between the DX and Leap pods. By storing this common key in a Kubernetes Secret, both applications can trust each other's login tokens, allowing users to sign in once and access both platforms seamlessly. The following steps are based on a community post from the HCLSoftware Community:

  1. Ensure both DX and Leap use an identical user registry configuration.

  2. Ensure both DX and Leap use the same realm name.

    To set the realm name for DX:

    1. Log in to the WebSphere Integrated Solutions Console (your-domain.com/ibm/console) as an administrator.

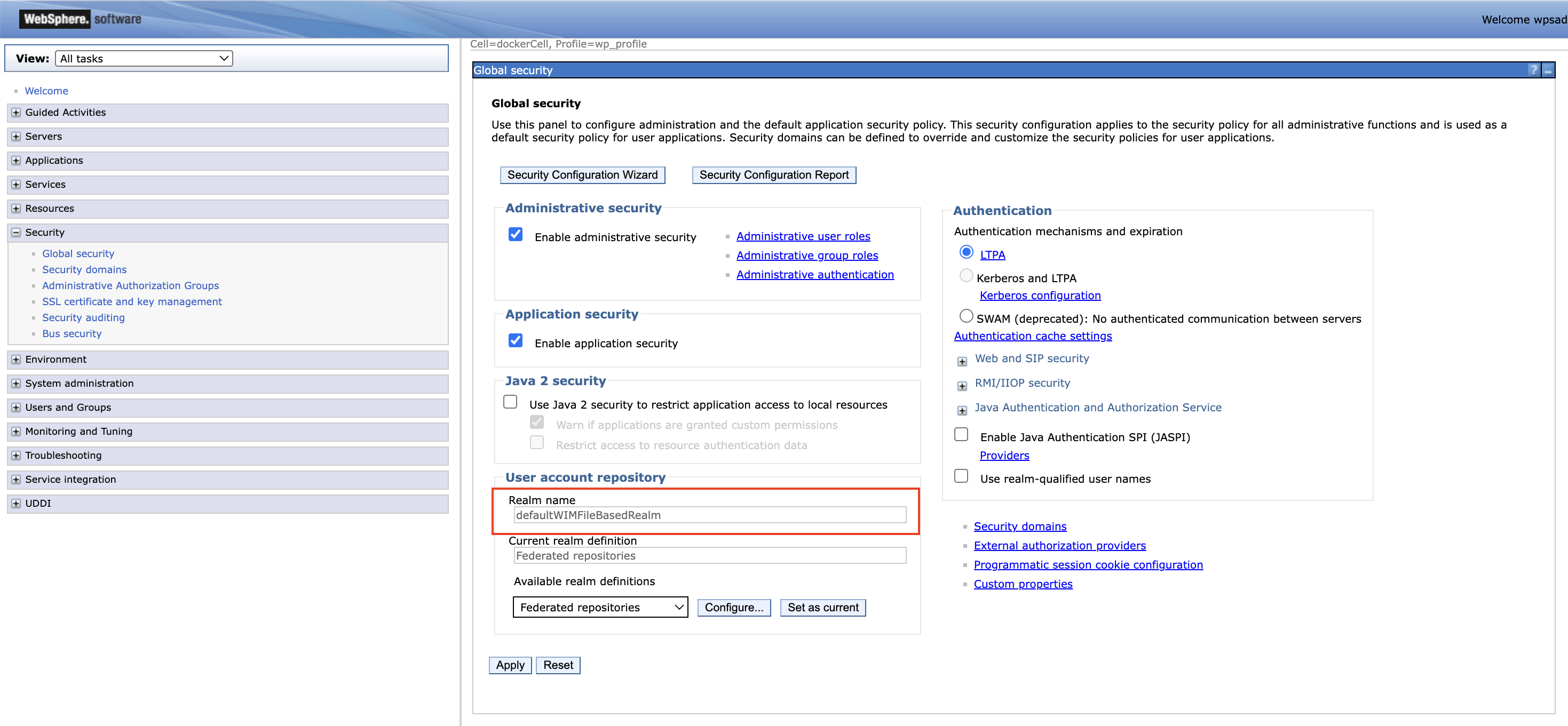

    2. Click Security > Global Security > User Account Repository > Realm Name.

    3. Under User account repository, set the Realm name (for example, defaultWIMFileBasedRealm).

    4. Click Apply.

    5. Click Save at the top of the console messages.

    To set the realm name for Leap:

    1. Edit the configOverrideFiles section in your Helm chart's values.yaml file. In the following example, the realm name for Leap is set to defaultWIMFileBasedRealm, similar to the realm name set in DX.

      configuration:
    leap:
        configOverrideFiles:
            mycustomoverride: |
                <server description="leapServer">
                <federatedRepository id="leapRepo">
                    <primaryRealm name="defaultWIMFileBasedRealm" allowOpIfRepoDown="true">
                    <participatingBaseEntry name="o=defaultWIMFileBasedRealm" />
                    </primaryRealm>
                </federatedRepository>
                <basicRegistry id="leapRegistry" realm="defaultWIMFileBasedRealm" ignoreCaseForAuthentication="true">
                    <user id="<my-user-id>" name="uid=<my-user-id>,o=defaultWIMFileBasedRealm" password="<my-password>" />
                </basicRegistry>
                </server>

    2. Perform a Helm upgrade to apply your changes.

    Note

    For more information regarding Leap's configOverrideFiles parameter, refer to Open Liberty server customizations.

  3. Ensure both DX and Leap use the same DNS domain. Refer to these steps for details.

  4. Ensure LTPA cookies flow only over HTTPS.

    To limit the flow of LTPA cookies to SSL only on the traditional WebSphere Application Server (WAS):

    1. Log in to the WebSphere Integrated Solutions Console (your-domain.com/ibm/console) as an administrator.
    2. Click Security > Global security > Web and SIP security > Single sign-on (SSO).
    3. Select the Requires SSL checkbox.
    4. Click Apply.
    5. Click Save at the top of the console messages.

    To limit the flow of LTPA cookies to SSL only on Liberty:

    1. Add the following parameter to the configOverrideFiles section of your values.yaml file

      <webAppSecurity ssoRequiresSSL="true"/>

    2. Perform a Helm upgrade to apply your changes.

  5. Ensure both DX and Leap use the same LTPA keys.

    1. Export the LTPA keys from WAS:
      1. Log in to the WebSphere Integrated Solutions Console (your-domain.com/ibm/console) as an administrator.
      2. Click Security > Global security > LTPA.
      3. In the Cross-cell single sign-on section, enter values for the following fields:
        1. Under Password, enter and confirm a secure password. You will require this password later.
        2. Under Fully qualified key file name, specify a name for the file that holds the exported keys (for example, ltpa.keys).
      4. Click Export keys.
    2. Look for the exported ltpa.keys in your DX core pod.
      1. In your cluster, run kubectl exec -it <your-dx-core-pod-name> -- sh.
      2. Run find / -name ltpa.keys to find the location of the ltpa.keys file, e.g. /opt/HCL/profiles/prof_95_CF229/ltpa.keys.
      3. Run cat <ltpa.keys-location> to print the file's contents into the terminal.
    3. Copy the content of the exported LTPA key file into a file named ltpa.keys in your cluster. This file will be used to create the Kubernetes secret.
    4. Exit the DX Core pod shell by running exit.

    5. Run the following command in your cluster to create the Kubernetes secret:

      kubectl create secret generic my-custom-ltpa-key --from-file=/path/to/ltpa.keys --namespace=<namespace>

    6. Update ltpa-key in the Leap custom Helm values.yaml file, then run a helm upgrade:

      configuration:
    leap:
        customSecrets:
            ltpa-key: my-custom-ltpa-key

    7. Look for ltpa.keys in your Leap pod (steps are similar to those that you did to find it in the DX pod). Check that its contents are the same as the ltpa.keys exported in DX. Note the location of the ltpa.keys file for the next step.

    8. Update the LTPA keysFileName and keysPassword parameters by adding this line to the configOverrideFiles section of your Leap values.yaml file:

      <ltpa keysFileName="/path/to/ltpa.keys" keysPassword="<myLtpaKeyPassword>" />

    9. Perform a Helm upgrade to apply your changes.

    Note

    For more details on using custom secrets as key file, refer to Using custom secrets as key file.

    See the resulting values.yaml file after adding the <webAppSecurity ssoRequiresSSL="true"/> and <ltpa keysFileName="/path/to/ltpa.keys" keysPassword="<myLtpaKeyPassword>" /> lines to the configOverrideFiles section:

    ### Leap custom values file
configuration:
  leap:
    configOverrideFiles:
      mycustomoverride: |
        <server description="leapServer">
        <webAppSecurity ssoRequiresSSL="true"/>
        <ltpa keysFileName="/path/to/ltpa.keys" keysPassword="<myLtpaKeyPassword>" />
        <federatedRepository id="leapRepo">
            <primaryRealm name="defaultWIMFileBasedRealm" allowOpIfRepoDown="true">
            <participatingBaseEntry name="o=defaultWIMFileBasedRealm" />
            </primaryRealm>
        </federatedRepository>
        <basicRegistry id="leapRegistry" realm="defaultWIMFileBasedRealm" ignoreCaseForAuthentication="true">
            <user id="<my-user-id>" name="uid=<my-uid>,o=defaultWIMFileBasedRealm" password="<my-password>" />
        </basicRegistry>
        </server>

  6. Restart HCL Leap and HCL DX. You should now be able to log in to DX and open Leap without having to log in again.

Implementing OIDC SSO

This guide explains how to enable SSO between HCL DX and HCL Leap on Kubernetes using OIDC. The OIDC approach connects directly to your preferred Identity Provider (IdP). By configuring DX and Leap to trust your central IdP, users can sign in once and access both applications securely. Authentication and access control are managed in a single location.

  1. Choose and configure your IdP.

    1. Create a client registration for each product (DX and Leap). Your IdP will serve as the single point of truth for credential inputs.

    2. (Optional) Customize the IdP access UI. For more information, refer to IdP Customization and Consideration.

  2. Enable OIDC in HCL DX.

    To enable OIDC on HCL DX using the WebSphere Application Server, refer to Updating WebSphere to support OIDC Authentication for DX.

  3. Enable OIDC in HCL Leap.

    You can configure Leap to use OIDC as the primary authentication mechanism, making it a relying party (RP) to your IdP. When OIDC is enabled, the user and group lookup features in Leap aren’t available and must be disabled as part of the configuration.

    1. Configure the necessary certificates for secure OIDC communication.

      As part of the identity provider configuration process, you must create or obtain a digital certificate for HTTPS. Deploy this certificate to Leap so that both servers can communicate securely.

      Note

      The SSL certificate (.crt) and public key (.key) must be in PKCS12 format.

    2. After copying the .key and .crt to the Kubernetes image, create a secret using the following command:

      kubectl -n <namespace> create secret tls <tls_secret> --key="/tmp/oidc.key" --cert="/tmp/oidc.crt"

      This secret can be referenced in the values.yaml file using the following configuration:

      configuration:
    leap:
        customCertificateSecrets:
            idpCert: <tls_secret>

    3. Add the OIDC definition as a server customization in the values.yaml file.

      The properties you need to specify depend on your identity provider configuration. For more information, refer to the Open Liberty documentation on OIDC.

      Before you begin, verify that the discovery endpoint URL (usually ending with /.well-known/openid-configuration) is valid by opening it in a browser. Then, update the values.yaml file with the client ID and secret that you obtained from your IdP.

      Example of an OIDC definition:

      # Replace placeholder values with your actual OIDC configuration
configuration:
    leap:
        configOverrideFiles:
            openIdConnect: |
                <server description="leapServer">
                <openidConnectClient id="<unique-oidc-id>"
                    clientId="<your-client-id>"
                    clientSecret="<your-client-secret>"
                    signatureAlgorithm="RS256"
                    authFilterRef="interceptedAuthFilter"
                    mapIdentityToRegistryUser="false"
                    httpsRequired="true"
                    scope="openid"
                    userIdentityToCreateSubject="preferred_username"
                    discoveryEndpointUrl="<your-idp-discovery-endpoint>">
                </openidConnectClient>
                <authFilter id="interceptedAuthFilter">
                    <requestUrl id="authRequestUrl" matchType="contains" urlPattern="/apps/secure|/apps/secured"/>
                </authFilter>
                <httpEndpoint id="defaultHttpEndpoint"
                    host="*"
                    httpPort="9080"
                    httpsPort="9443">
                    <samesite none="*" />
                </httpEndpoint>
                </server>

      For more details on defining a server customization, refer to Open Liberty server customizations.

      Important

      The openIdConnectClient redirects to https://<your-domain>/oidcclient/redirect/<unique-oidc-id> after authentication. Make sure the valid redirect URIs in your IdP include an entry that matches this pattern, and use a different ID than the one you use for DX. You might also need to update your Ingress or Gateway API configuration so that /oidcclient/redirect/<unique-oidc-id> redirects to the Leap service.

    4. Add the following config properties related to OIDC in the values.yaml file.

      The following properties must be set to complete the OIDC configuration:

      • userLookups: Set this to false to disable user lookups, which is not available when configured with OIDC.
      • userGroups: Set this to false to disable group lookups, which is not available when configured with OIDC.
      • postLogoutRedirectURL: Set this to the URL to which Leap will redirect the browser after a user logs out. This is necessary to complete the authentication flow with your IdP.
      configuration:
    leap:
        leapProperties: |
            ibm.nitro.NitroConfig.userLookup=false
            ibm.nitro.NitroConfig.userGroups=false
            ibm.nitro.LogoutServlet.postLogoutRedirectURL=<your-idp-logout-endpoint>?client_id=<your-client-id>&post_logout_redirect_uri=https://<your-domain>/apps/secure/org/ide/manager.html

      For more details on setting Leap properties, refer to Leap properties.

    5. Perform a Helm upgrade to apply your changes.

    6. Delete the Leap pod using the following command:

      kubectl -n <namespace> delete pod <leap-pod-name>

      After you complete the configuration, users who access Leap are redirected to your IdP authentication page.
