Sample integrations of HCL Leap with HCL Digital Experience

This section provides an overview of the possibilities offered by the integration of HCL Leap and HCL Digital Experience (DX). Follow the Installation and Configuration steps before following the example guide.

Showing HCL Leap data on HCL DX pages

You can integrate data from HCL Leap to your HCL DX pages using the Digital Data Connector. For more information, see Digital Data Connector.

Integrating the HCL Leap application in HCL DX

By default, the embedding of Leap apps isn't allowed. Set the following properties in the custom Leap values.yaml file to allow it for all domains:

configuration:
    leap:
        leapProperties: |
            ibm.nitro.NitroConfig.embedDomainWhitelist.enabled = false

Note

Read about the embedDomainWhitelist property in the Leap docs for details on how to enable embedding for only some select domains.

After setting the above property, you can now integrate HCL Leap applications into HCL DX in two ways:

Using the embedded JavaScript API
Using the Web Application Bridge (WAB)

Note

To property integrate Leap into DX, it is recommended that you familiarize yourself with the following topics:

Integrating HCL Leap applications using the embedded JavaScript API

Refer to the following steps to embed a Leap application onto a DX site using Leap's Embedding API.

Create the Leap application that you plan to integrate, if you haven't done so. If you're new to creating Leap apps this HCL Software U lesson may help.
Ensure that you can access Leap and DX from the same domain name and Single Sign-On (SSO) is enabled.
Create a Library in DX.
1. Log in to Practitioner Studio as an administrator.
2. Click Applications Menu > Web Content > Web Content Libraries > Create New Library.
3. Under *Web content library name, enter your library name, then click OK.
4. Click Authoring > Preferences > Edit Shared Settings > Library Selection.
5. Select the library you created, click Add > to move it to the Selected Libraries, then click OK.
Create a new Presentation Template in the new library.
1. In the Library Explorer, click your new library.
2. Click New > Presentation Template.
3. Under Name, enter the name of your presentation template.
4. Under Presentation Template Options, enter the following code:
```
[Element context="current" type="content" key="html"]
```
5. Click Save and Close.
Create a Content Template.
1. In your library, click New > Authoring Template > Content Template.
2. Under Name, enter the name of your content template.
3. Click Manage Elements.
4. Under Element type, select HTML from the dropdown.
5. Under Name, enter the name of your element, then click OK.

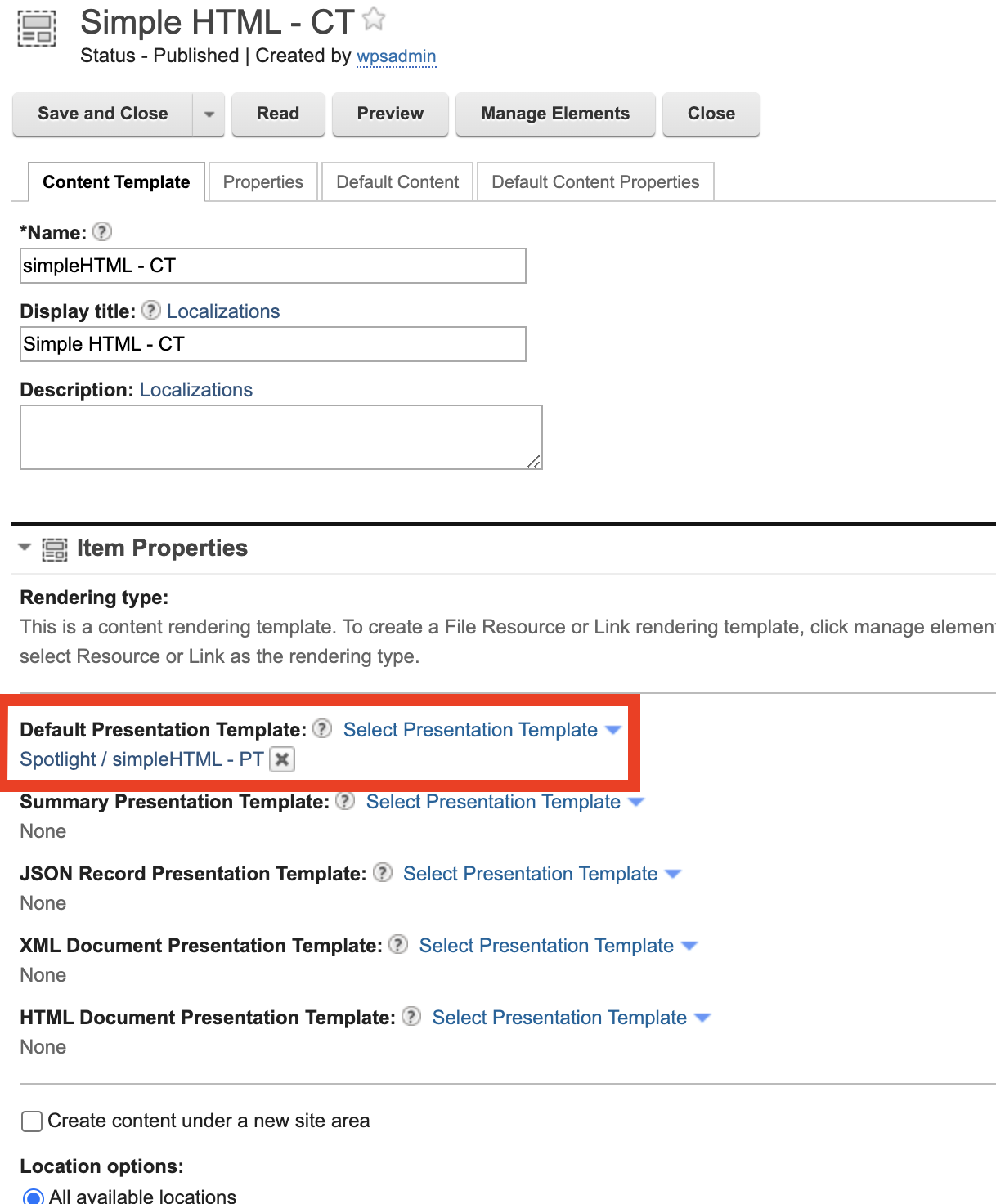

6. In Default Presentation Template, click Select Presentation Template.
7. Select the Presentation Template you created in step 4, then click OK.
8. Click Save and Close.
Create a Site Area using the default template.
1. In your library, click New > Site Area > Default Site Area Template.
2. Under Name, enter the name of your site area.
3. Click Properties > Profile.

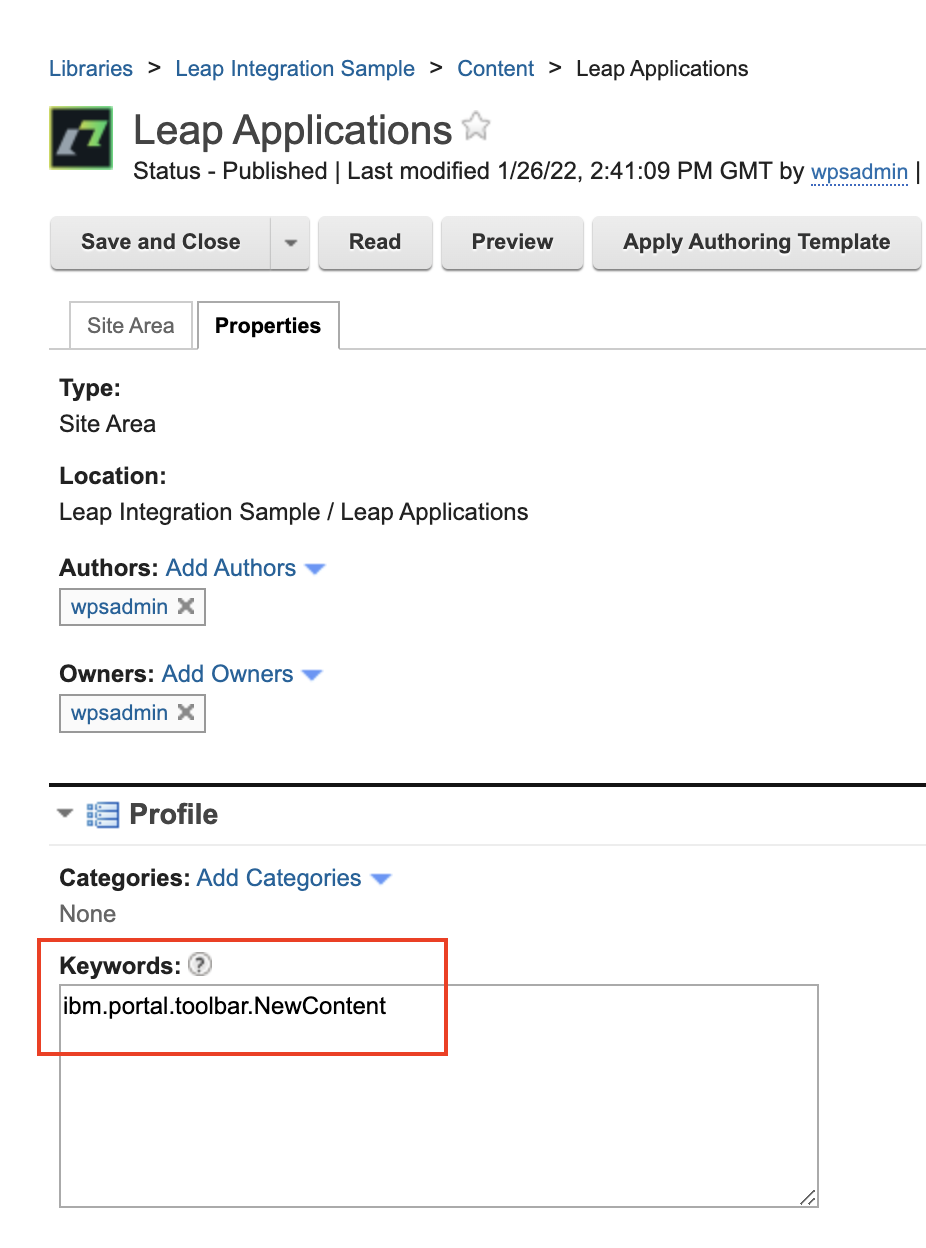

4. Under Keywords, add the following parameter to make your site area is visible when in your DX site's Edit Mode.
```
ibm.portal.toolbar.NewContent
```
5. Click Save and Close.
Create the Content based on your content template.
1. In your library, click Content.
2. You should see the site area you created. Click on it.
3. Inside your site area, click New > Content and select the content template you previously created.
4. Under Name, enter the name of your site area.
5. Open Leap in a different tab and get the Launch link for your app.
6. Compare your Launch link to the pattern sample-hostname.com/.../app/<appId>/launch/index.html?form=<formId>, and note your appId and formId. That is, your appId should come after the word "app" in your link, whereas the formId should come after "form=".

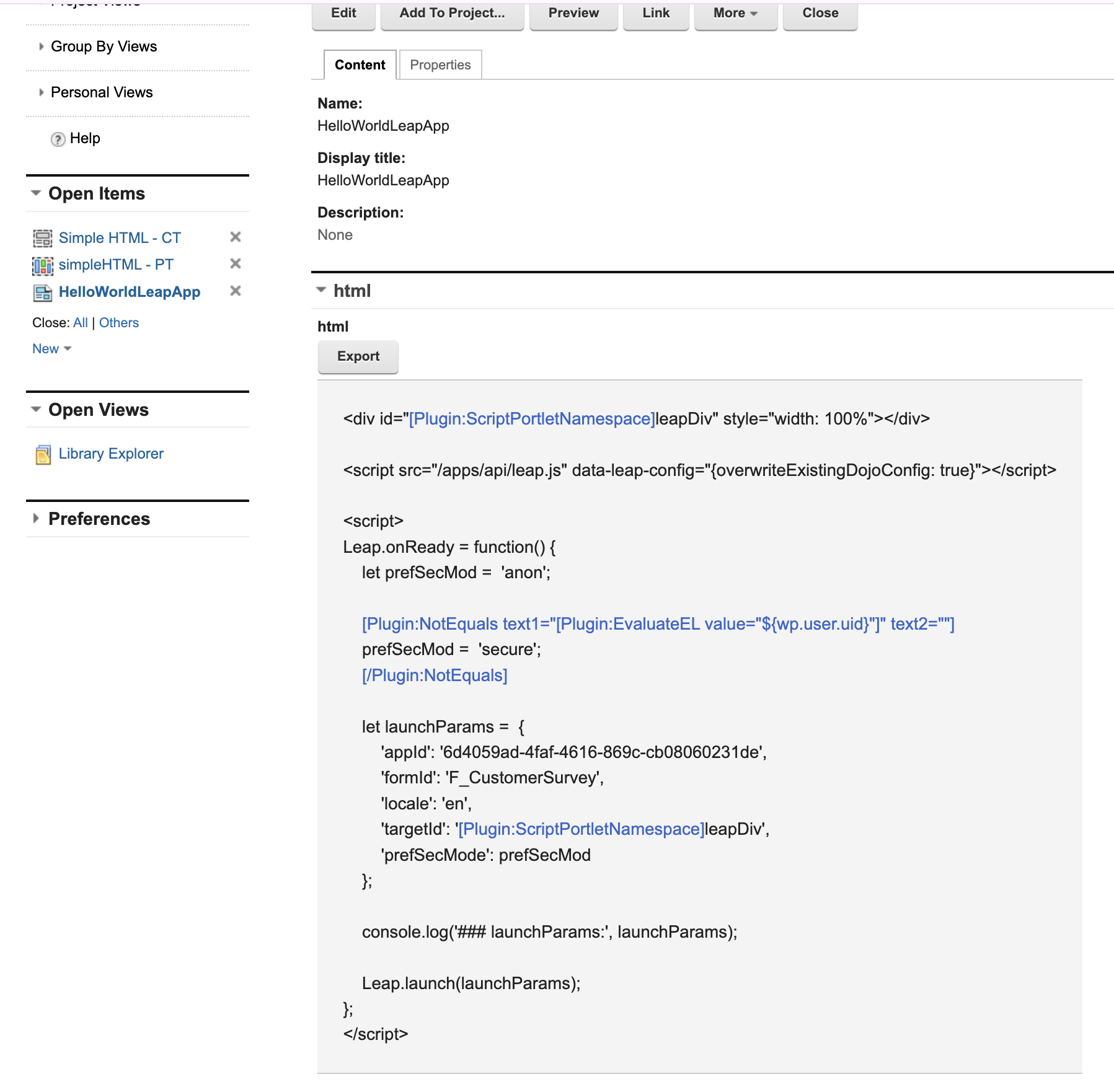

7. Go back to the Content you're creating. Under html, paste the script below:
```
<div id="[Plugin:ScriptPortletNamespace]leapDiv" style="width: 100%"></div>

<script src="/apps/api/leap.js" data-leap-config="{overwriteExistingDojoConfig: true}"></script>

<script>
Leap.onReady = function() {
    let prefSecMod =  'anon';

    [Plugin:NotEquals text1="[Plugin:EvaluateEL value="${wp.user.uid}"]" text2=""]
    prefSecMod =  'secure';
    [/Plugin:NotEquals]

    let launchParams =  {
        'appId': '{appId}',
        'formId': '{formId}',
        'locale': navigator.language,
        'targetId': '[Plugin:ScriptPortletNamespace]leapDiv',
        'prefSecMode': prefSecMod
    };

    console.log('### launchParams:', launchParams);

    Leap.launch(launchParams);
};
</script>
```
1. In the script you pasted, replace {appId} and {formId} with the appId and formId you obtained from your Launch link.
Embed your Leap app.
1. Go to your DX site.
2. Enable Edit Mode by clicking on the Edit Mode toggle on the upper left of the page.
3. Click on the Add page components and applications button (). You should now be able to see the site area you created under "Page Components".
4. Click on your site area. You should now see the Content you created.
5. Add your content to the page by dragging it to your preferred location.
6. You have now embedded your Leap app into your DX page.

Integrating HCL Leap applications with Web Application Bridge

WAB uses reverse proxy technology to integrate web-based content providers such as Leap with DX. Administrators must first create the content providers profiles, policies, and web dock applications. More details are available in Web Application Bridge.

Warning

As described in Troubleshooting the Web Application Bridge, WAB exposes the proxied application on the same context root as the original resource path. This can cause overlaps in the routing if the application (in this case, Leap) is deployed and exposed on the same host as DX.

To prevent this, use and configure an Ingress Controller to expose the applications on different host names or subdomains.

Create content provider profiles.

For information on how to create content provider profiles, policies, and connections, refer to the following:
Follow these steps to create the profile:
1. In the Profile Host, you can set a Unique profile title (for example Leap Content Provider Profile).
2. For the Hostname or IP address, enter http://hostname:port/ which is the host (and port, if required) of the Leap environment. If the Leap deployment is deployed in the same Kubernetes cluster as HCL DX, the Kubernetes Service DNS name can be used here to only access the application through the Web Application Bridge proxy.
3. Save the content provider profile.
Create Web Dock Applications.

For information on how to create web dock applications, refer to Web Dock application.
1. Add a Unique web dock application title (for example, Leap). Make sure the title describes the Web Dock portlet you want to add to the page.
2. In the Content provider profile dropdown, select the newly created profile Leap Content Provider Profile.
3. Add a path to the Leap page to display as the Resource path (for example, /apps/landing/org/app/8a667f9a-aa60-4691-829a-9a8bf4220c04).
4. Save the web dock application.
Add the created Web Dock Application to the DX Page.
1. Enable Edit mode on the DX page you want to include Leap on or create a new page. To create a new page, click the menu icon on the right of the Web Dock Application to open the Context menu. You can create either a child or a sibling page.
2. Click the plus icon on the left navigation panel to Add page components and applications to the page. In the navigation panel, go to the Applications tab and search for the newly created web dock application (in this case, Leap).
3. Click the Add To Page button.

The HCL Leap Page should be visible within the HCL DX page.

Support for this feature is not available in the HCL Support Center. For questions and issues, reach out either in the DXers - The HCL DX User Group on Discord or in the HCL DX forum.

HCLSoftware U learning materials

For an introduction and a demo on how to integrate DX with HCL Leap as a business user, go to DX Integration with HCL Leap for Business Users. To try it out yourself, refer to DX Integration with HCL Leap for Business Users Lab and corresponding DX Integration with HCL Leap for Business Users Lab Resources.

For an introduction and a demo on how to integrate DX with HCL Leap as a developer, go to DX Integration with HCL Leap for Developers. To try it out yourself, refer to DX Integration with HCL Leap for Developers Lab.
