Enabling SSO between HCL DX and HCL Volt MX Foundry Apps

This topic explains how to enable Single Sign-On (SSO) between HCL Digital Experience (DX) and HCL Volt MX Foundry applications, where DX acts as the OAuth 2.0 service provider.

Prerequisites

To enable SSO, ensure you have:

DX and Volt MX Foundry deployed and accessible
Access to the WebSphere Application Server
Access to the Kubernetes CLI
TLS certificates
Admin credentials for both DX and Volt MX Foundry

Setting up SSO

Create the OAuth service provider in HCL DX

Access the DX Core Pod using the following command:

kubectl exec -it <core-pod> core -n <namespace> -- sh

Run the wsadmin utility using the following command to create the OAuth provider:
```
cd /opt/HCL/AppServer/bin
./wsadmin.sh -lang jython -username <username> -password <password>

AdminTask.createOAuthProvider('[-providerName OAuthConfig -fileName /opt/HCL/AppServer/properties/DXProvider.xml]')
AdminConfig.save()
quit
```
- <OAuthProviderName> is the OAuth provider name (typically OAuthConfig).
- <ProviderConfigFile> is the full path to the OAuth provider configuration file. Download and use the DXProvider.xml configuration file which includes Auto Authorize setup for the VoltMX client.

Verify the configuration file using the following command:

# Ensure it exists at:
/opt/HCL/wp_profile/config/cells/dockerCell/oauth20/OAuthConfig.xml

Restart WebSphere Portal using the following command:

./stopServer.sh WebSphere_Portal -profileName wp_profile -username <username> -password <password>
./startServer.sh WebSphere_Portal -profileName wp_profile

Configure Trust Association Interceptors (TAI).
1. Log in to the WebSphere Integrated Solutions Console as an administrator.

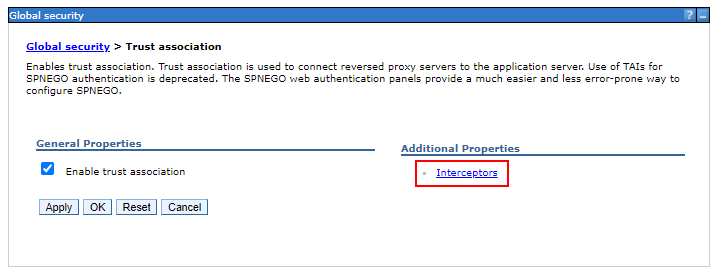

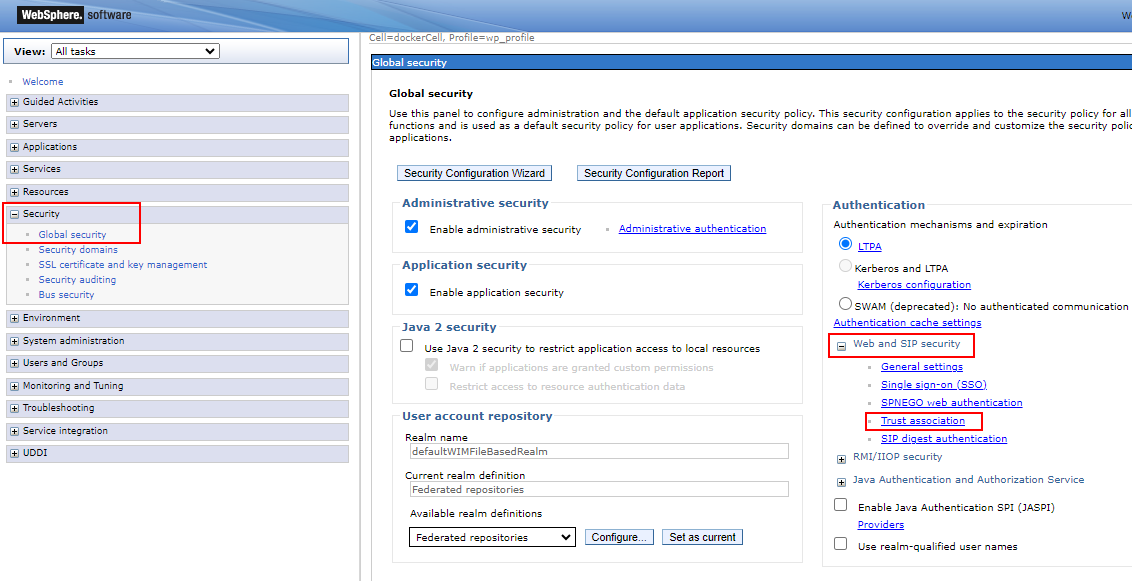

2. Navigate to Security > Global security > Web and SIP security > Trust association > Interceptors.

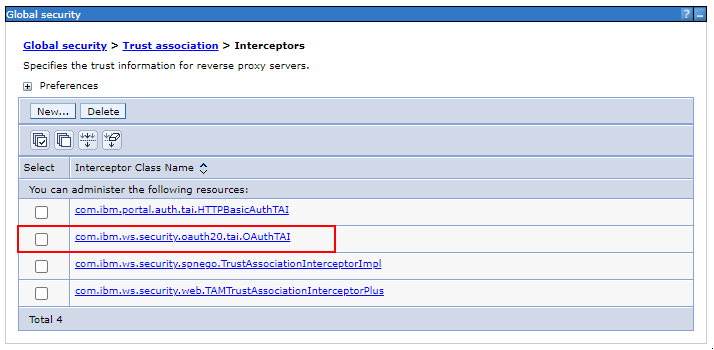

3. Ensure com.ibm.ws.security.oauth20.tai.OAuthTAI is in the list of Interceptors.

  If it is not on the list:

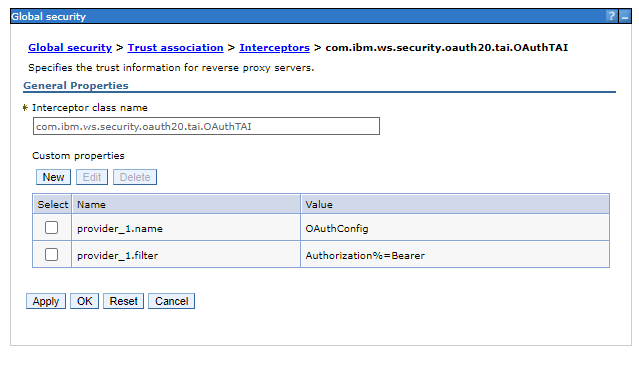

  1. Click New....
  2. Under Interceptor class name, enter com.ibm.ws.security.oauth20.tai.OAuthTAI.
  3. Under Custom properties, add the following property:
    - Name: provider_1.name
    - Value: OAuthConfig
  4. Click New to add a new line. Then, add the following property:
    - Name: provider_1.filter
    - Value: Authorization%=Bearer
  5. Click Apply.
  6. Click Save at the top of the console messages.

Register the OAuth client.

Copy the default client definitions using the following command:

cp /opt/HCL/AppServer/properties/base.clients.xml /opt/HCL/wp_profile/config/cells/dockerCell/oauth20/

Open the base.clients.xml file using the following command:

vi /opt/HCL/wp_profile/config/cells/dockerCell/oauth20/base.clients.xml

Add the following client definitions to the file to add Volt MX:
```
<client id="voltmx" component="<OAUTH_PROVIDER_NAME>" secret="<OAUTH_SECRET>" displayname="Volt MX" redirect="https://<VOLT_MX_HOST>/<CALLBACK_URL_ENDPOINT>" enabled="true">
</client>
```
- <OAUTH_PROVIDER_NAME> is the name of the specified provider (for example, OAuthConfig).
- <OAUTH_SECRET> is a complex, random secret (for example, a UUID). This secret will be required later.
- <VOLT_MX_HOST> is the URL of the Volt MX deployment.
- <CALLBACK_URL_ENDPOINT> endpoint found in the Callback URL under Indentity Service configuration page.
For example:
```
<client id="voltmx" component="OAuthConfig" secret="a2e3d8c3-7875-4512-a0da-8b5fd61f2245" displayname="Volt MX" redirect="https://<voltmx-env.com>/authService/100000002/oauth2/callback" enabled="true">
</client>
```

Install the OAuth application.

Install the OAuth 2.0 provider app using the following command:

./wsadmin.sh -f ./installOAuth2Service.py install dockerNode WebSphere_Portal -profileName wp_profile -username <username> -password <password>

Enable OAuth TAI using the following command:

./wsadmin.sh -lang jython -username <username> -password <password>
AdminTask.enableOAuthTAI()
AdminConfig.save()
quit

Restart the portal again.

Configure Identity Services in Volt MX.
1. Create an application in Volt MX Foundry.

  For instructions, refer to How to Add Applications.

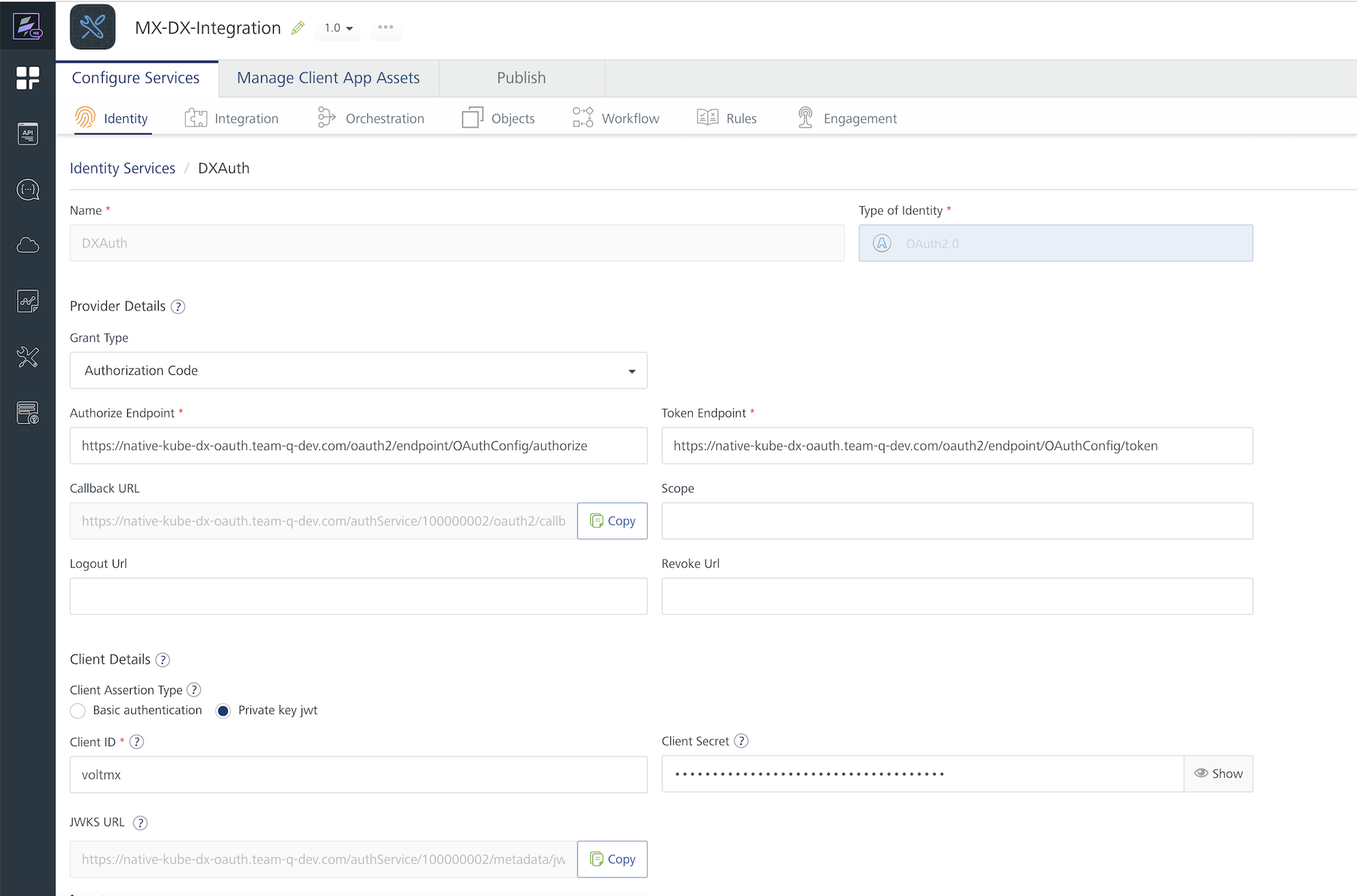

2. Configure the Identity Service settings:

  For instructions, refer to Configure Identity Service.
  - Type: OAuth
  - Authorize Endpoint:
```
https://<dx-host>/oauth2/endpoint/OAuthConfig/authorize
```
  - Token Endpoint:
```
https://<dx-host>/oauth2/endpoint/OAuthConfig/token
```
  - Client ID / Secret: Use values from the OAuth client registration.

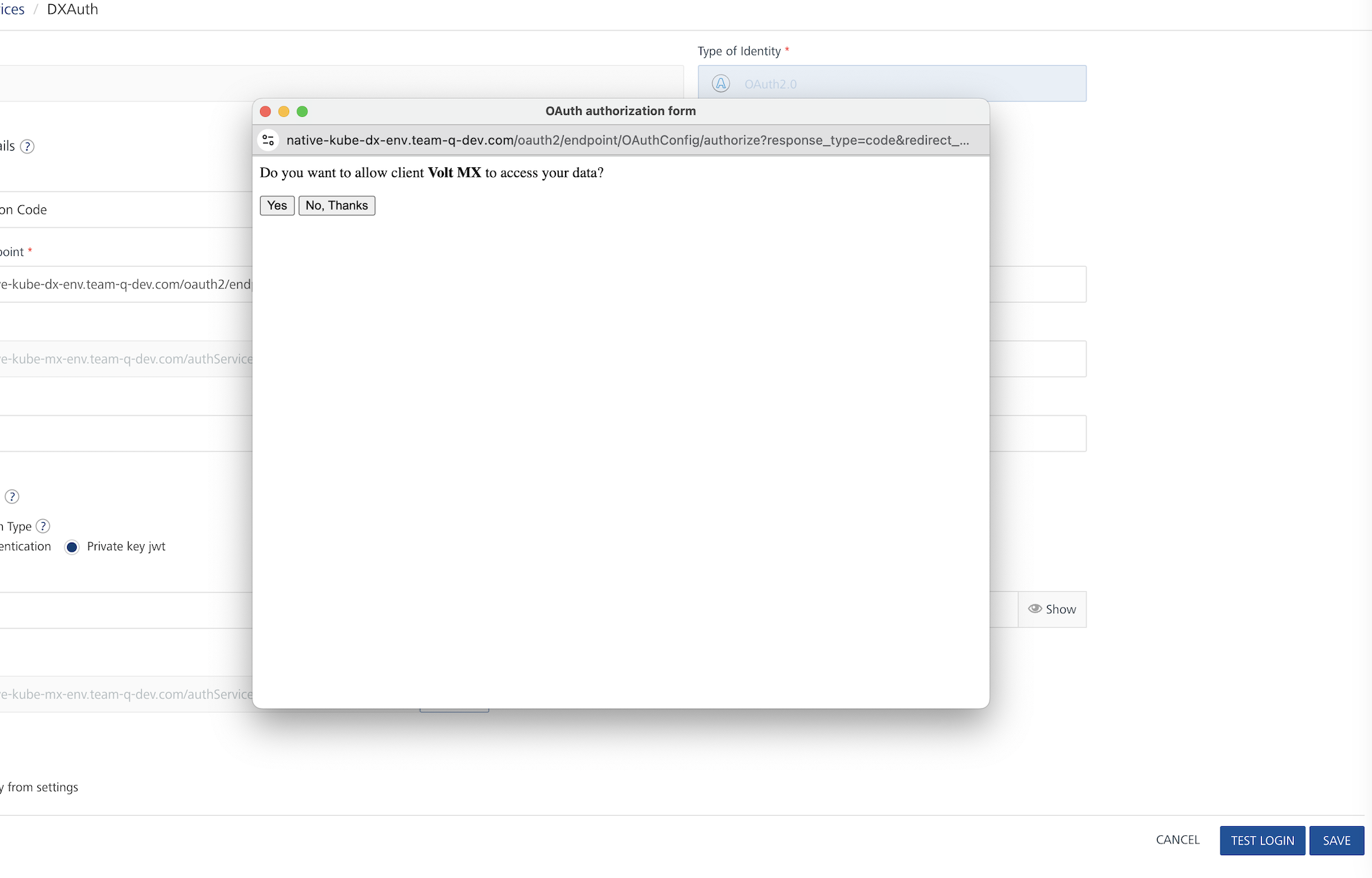

3. Click Test login and confirm the OAuth login screen appears.

  Tip

  If the test login fails due to an SSL handshake error about a missing certification path, you need to add the certificates for the HCL DX host in the administrator console.

  To resolve this error, follow these steps:
  1. Log in to the WebSphere Integrated Solutions Console as an administrator.
  2. Navigate to Security > SSL certificate and key management > Key stores and certificates > NodeDefaultTrustStore > Signer certificates > Retrieve from port.
  3. Enter the HCL DX Host, Port, and Alias.
  4. Click Retrieve signer information then Apply.
  5. Click Save at the top of the console messages.
4. Enable SSO in Volt MX.

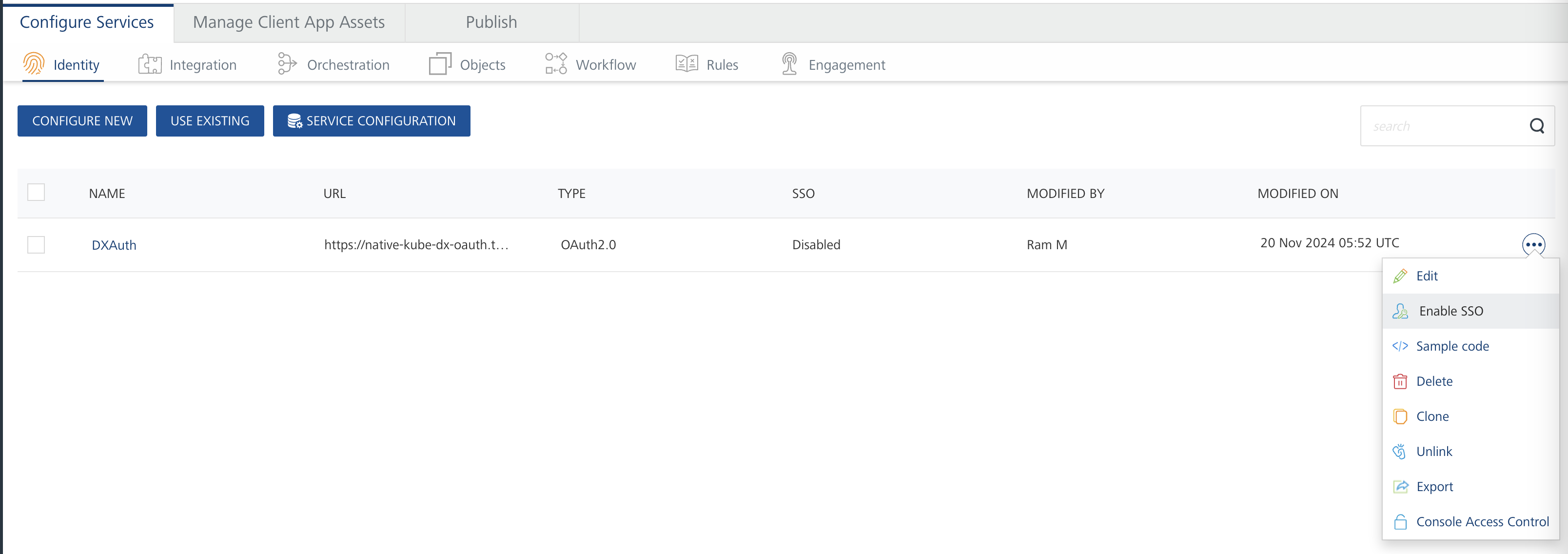

  Go to Identity Service > More Actions > Enable SSO.
For more information on Volt MX Foundry identity services, refer to Configure Identity Service.

Note

If VoltMX and HCL DX environments are hosted on separate instances, there might be issues with Cross-Origin Resource Sharing (CORS). For more information, see the topic CORS Configuration.
Enable SSO in the Iris application.
1. Ensure the Iris is connected to the Foundry application which contains the SSO configurations. For more information on how to create an application, refer to Getting started with Iris.
2. Create login form in Iris using the guide referred in Getting started with Iris.
3. Add the following code to form init:
```
if (!VMXFoundry) return;
var voltmxIdent = VMXFoundry.getIdentityService("DXAuth");
var options = {};
options.loginOptions = { isSSOEnabled: true };

voltmxIdent.login(options,
function(res) {
    alert("SSO success: " + JSON.stringify(res));
    var nav = new voltmx.mvc.Navigation("frmHome");
    nav.navigate();
},
function(err) {
    alert("SSO failed: " + JSON.stringify(err));
}
);
```
4. Deploy the Iris application to HCL DX.

  For more information, see How to Deploy Volt MX portlet into HCL DX.

  After deploying the application, when the user goes to a web page, a window appears asking for permission to allow the client Volt MX to access the data. Click Yes to allow the portlet to login for single sign-on.

You have now successfully enabled SSO integration between HCL DX and Volt MX Foundry.
