Importing and Exporting DX Site

Overview

What You Will Learn In This Tutorial

  • How to export parts of a DX Site
  • How to import parts of a DX Site from exported files
  • What to look out for when exporting and deploying DX sites
  • How to export and import DAM assets between environments

Reference Site

  • WoodBurn Insurance Demo Site could be used as reference to try and test the steps detailed in this guide. You can find it here.

Common Set-up

Config File

  • Create a config file that you can use to set up your frequently used environment variables. Save the config file in your working directory.

    sample.config

    # the protocol with which to connect to the server
export DXPROTOCOL=https
# the hostname of the target server
export HOSTNAME=localhost
# the port on which to connect to the server (for Kubernetes Environment, dxPort is 443)
export DXPORT=10041
# the port number of the cw_profile (for Kubernetes Environment, dxConnectPort is 443)
export DXCONNECTPORT=10202
# the profile name of the DX core server
export DXPROFILENAME=wp_profile

    sample.bat

    :: The protocol with which to connect to the server
set "DXPROTOCOL=https"
:: the hostname of the target server
set "HOSTNAME=localhost"
:: the port on which to connect to the server (for Kubernetes Environment, dxPort is 443)
set "DXPORT=10041"
:: the port number of the cw_profile (for Kubernetes Environment, dxConnectPort is 443)
set "DXCONNECTPORT=10202"
:: the profile name of the DX core server
set "DXPROFILENAME=wp_profile"

    Tip

    For Windows batch files, enabling delayed expansion and using ! (i.e: !DXPROTOCOL!) instead of % (i.e: %DXPROTOCOL%) is encouraged to avoid unwanted reuse of old values from previous runs.

How to export parts of a DX Site

  1. Manual export of a DX Theme via Practitioner Studio
  2. Manual export of a DX site's_page_hierarchy
  3. Export a DX Theme via commandline
  4. Export a DX site's page hierarchy via commandline
  5. Export the DX site's WCM libraries via commandline
  6. Export the DX DAM digital assets via commandline

How to import parts of a DX Site from exported files

Here are the steps in order to deploy your exported DX Site:

  1. Deploy all DX modules required by your DX theme
  2. Deploy the DX theme you created for your site (skip this step if you are using an out-of-the-box theme)
  3. Import DX DAM digital assets from the command line
  4. Import all WCM libraries that contain your components
  5. Import your site page hierarchy
  6. Update all WCM libraries that reference site pages
  7. (Optional) Update Script Applications

XML files

Sample XML files are available in the WoodBurn Insurance reference site. DXClient samples are also available in the DX server located in the following directory: <portal_server_home>/doc/xml-samples.

When using Woodburn Insurance Demo

The following xml files are already included in the demo named theme-export.xml and site-export.xml respectively.

Theme Metadata Export XML

This xml will be used to export the metadata xml of theme.

theme-export.xml

<?xml version="1.0" encoding="UTF-8"?>
<!--
=================================================================
* Licensed Materials - Property of IBM
* (c) Copyright IBM Corp. 2012.  All rights reserved.
*
* US Government Users Restricted Rights - Use, duplication or
* disclosure restricted by GSA ADP Schedule Contract with IBM
* Corp.
*
* DISCLAIMER OF WARRANTIES.  The following [enclosed] code is
* sample code created by IBM Corporation.  This sample code is
* not part of any standard or IBM product and is provided to you
* solely for the purpose of assisting you in the development of
* your applications.  The code is provided "AS IS", without
* warranty of any kind.  IBM shall not be liable for any damages
* arising out of your use of the sample code, even if they have
* been advised of the possibility of such damages.
*
=================================================================
-->

<request
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:noNamespaceSchemaLocation="PortalConfig_8.0.0.xsd"
   type="export">

   <portal action="locate">
      <skin action="export" objectid="custom.portal.skin.Woodburn%20Insurance.Standard" />
      <theme action="export" objectid="custom.portal.theme.Woodburn%20Insurance" />
   </portal>
</request>

  • Modify the objectid to match yours.

       <portal action="locate">
      <skin action="export" objectid="custom.portal.skin.Woodburn%20Insurance.Standard" />
      <theme action="export" objectid="custom.portal.theme.Woodburn%20Insurance" />
   </portal>

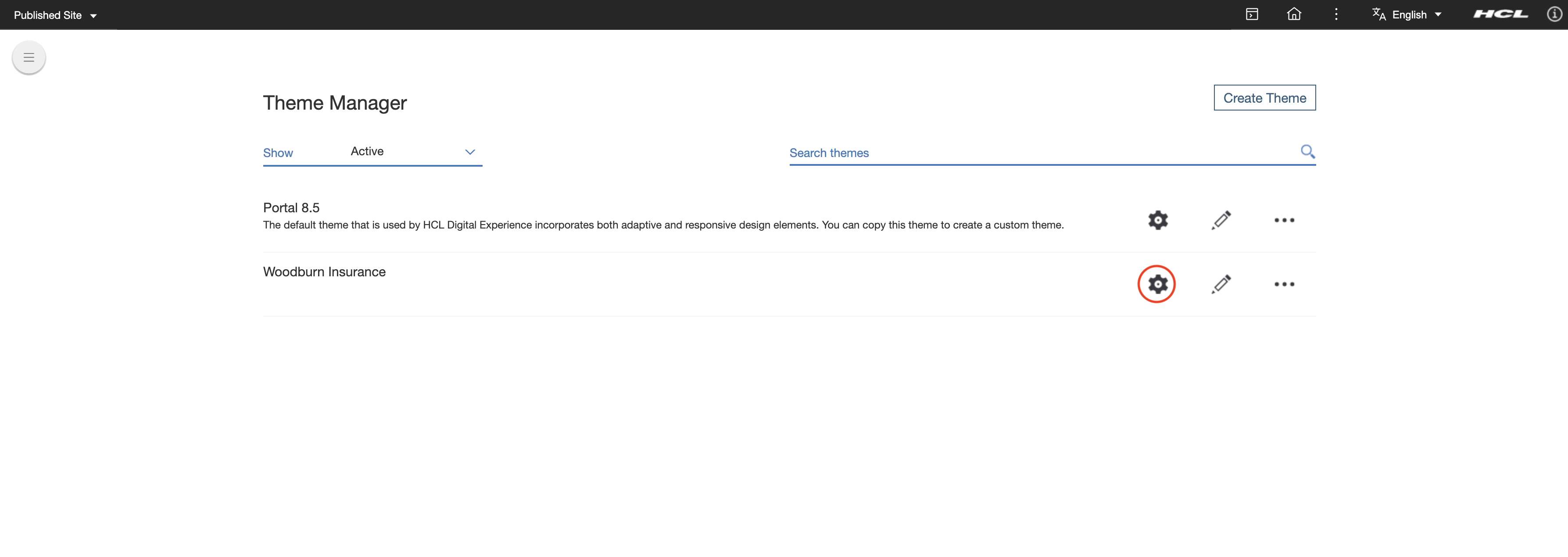

  • You can find the objectid by going to Theme Manager and then clicking the cog. Theme Manager

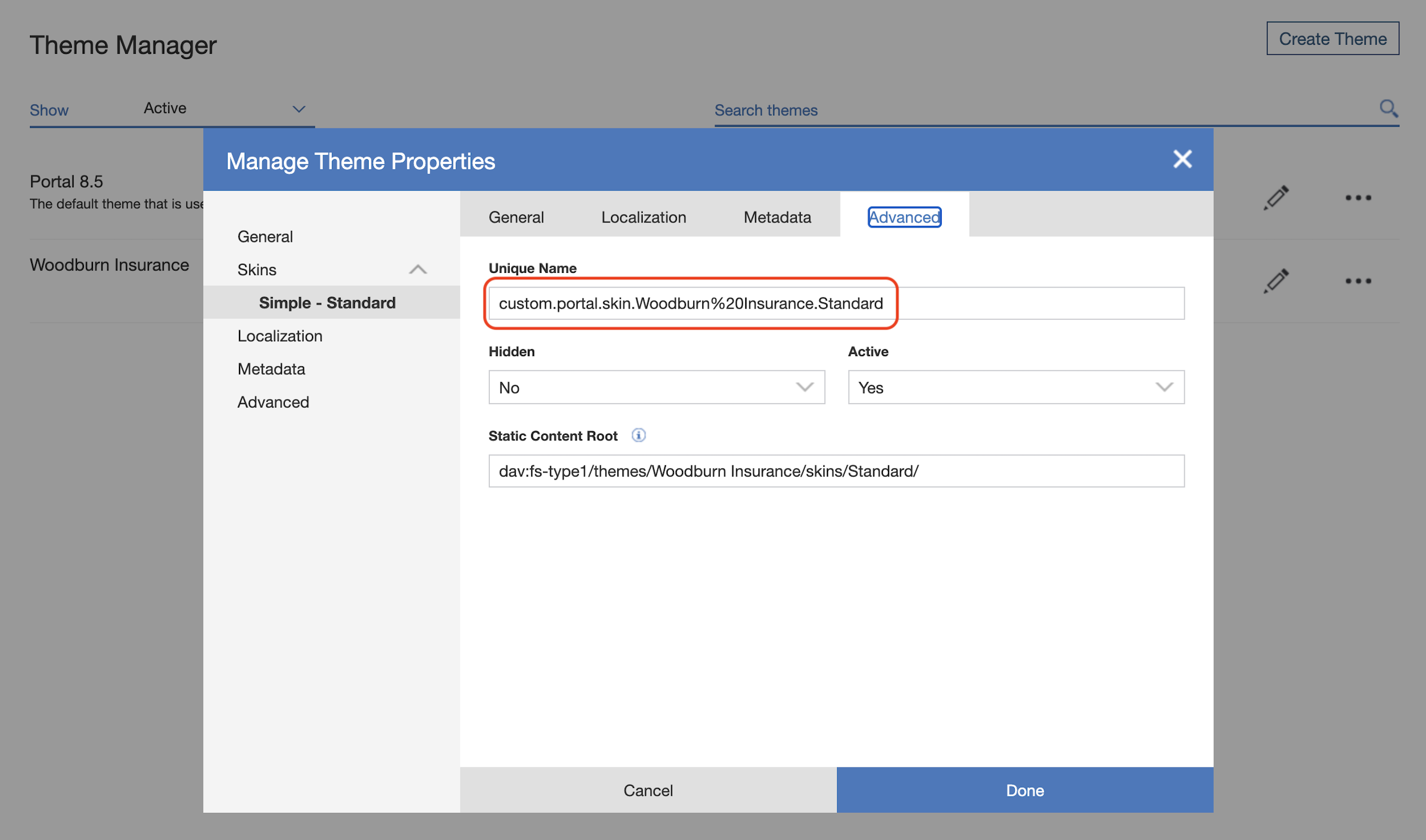

  • Skin objectid. Skin Object ID
  • Theme objectid. Theme Object ID

Page Hierarchy Export XML

This xml is used to export the Page metadata and hierarchy xml of your site.

site-export.xml

<?xml version="1.0" encoding="UTF-8"?>
<!--
=================================================================
*Licensed Materials - Property of IBM
* (c) Copyright IBM Corp. 2003, 2010.  All rights reserved.
*
* US Government Users Restricted Rights - Use, duplication or
*disclosure restricted by GSA ADP Schedule Contract with IBM
* Corp.
*
* DISCLAIMER OF WARRANTIES.  The following [enclosed] code is
*sample code created by IBM Corporation.  This sample code is
* not part of any standard or IBM product and is provided to you
*solely for the purpose of assisting you in the development of
* your applications.  The code is provided "AS IS", without
*warranty of any kind.  IBM shall not be liable for any damages
* arising out of your use of the sample code, even if they have
*been advised of the possibility of such damages.
*
=================================================================
-->

<request
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:noNamespaceSchemaLocation="PortalConfig_8.0.0.xsd"
   type="export">

   <!-- sample for exporting a page -->
   <portal action="locate">

      <content-node action="export" uniquename="Woodburn Insurance"  export-descendants="true"/>

   </portal>
</request>

  • Modify the uniquename to match yours.

          <content-node action="export" uniquename="Woodburn Insurance"  export-descendants="true"/>

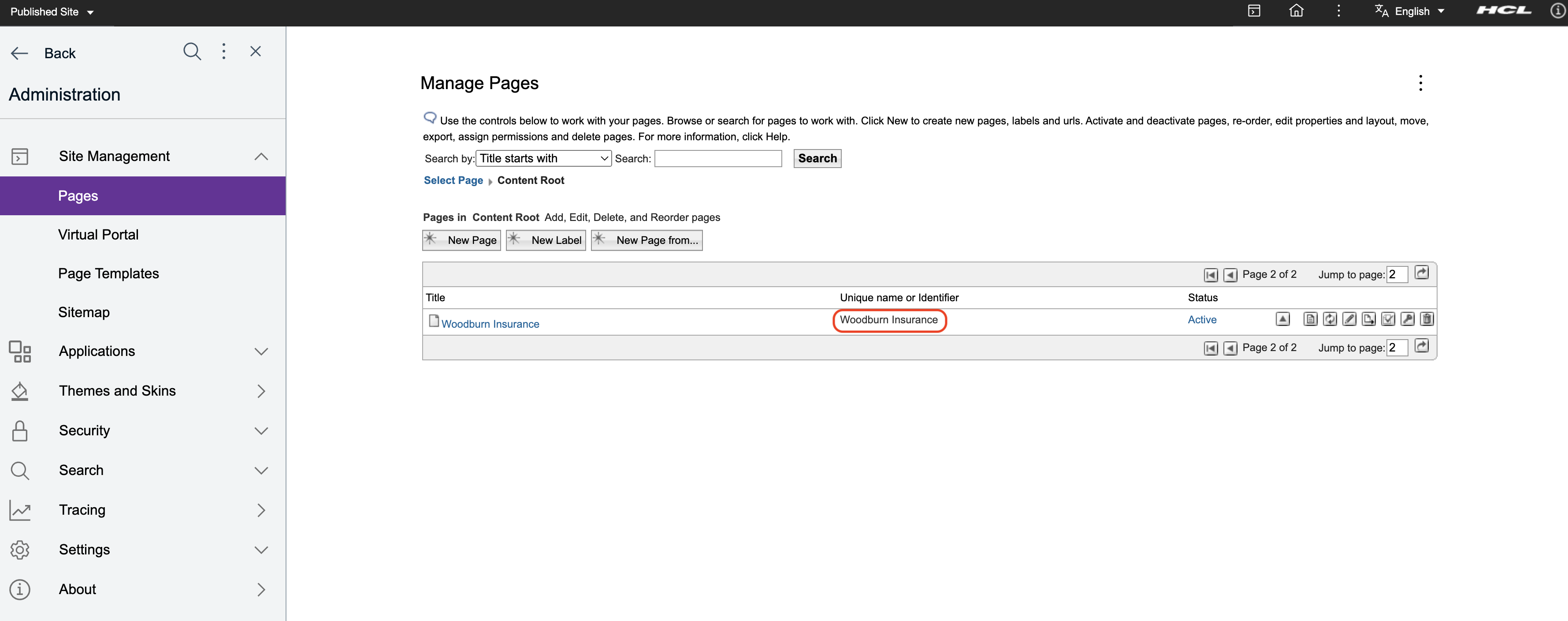

  • You can find it in Administration > Site Management under the Unique name or Identifier Column. Skin Object ID

DAM Assets Export and Import

Digital Asset Management (DAM) Assets Export and Import (EXIM) is a tool for exporting DAM assets from a source environment to the file system in a structured format. You can also use it to import DAM assets from the file system into a target environment.

User access and control capabilities for HCL DAM EXIM

DAM Export and Import (EXIM) is exposed through DXClient.

Administrators and authorized users with Administrator role privileges can access and manage DAM EXIM operations.

When you export DAM assets to a target environment that does not share the same LDAP configuration, access rights are not transferred.

If you specify a file system path and run the command from the container, assets are exported to or imported from the specified location (for example, store/folder_name/).

Limitations

DAM EXIM can be used to back up DAM assets from any environment. The same backup can be imported into another environment.

DAM EXIM does not support continuous synchronization like DAM Staging. See Sharing and staging DAM assets for information on configuring continuous synchronization of DAM assets.

DAM Staging provides continuous synchronization between environments. If you are using DAM Staging, using DAM EXIM is not required.

Export DAM assets

Use the export command to export DAM assets to the file system. By default, assets are exported to store/outputFiles/dam-export-assets/. If you specify a path, assets are exported to the provided location, for example store/folder_name/.

Commands description

dxclient manage-dam-assets export-assets - Help command
Shows help information for the manage-dam-assets command:

dxclient manage-dam-assets export-assets -h
  • Command options

-dxProtocol <value>
pecifies the protocol to use when connecting to the DX server.
-hostname <value>
ecifies the hostname of the DX server.
-dxPort <value>
Specifies the port to connect to the server (for Kubernetes environments, the default is 443).
-dxUsername <value>
Specifies the username required for server authentication.
-dxPassword <value>
Specifies the password required for server authentication.
-ringAPIPort <value>
Specifies the DAM server port for Kubernetes environments (default: 443).
-ringAPIPort <value>
Specifies the DX Core API server port for Kubernetes environments (default: 443).
-exportPath <value>
Specifies a folder path to import DAM assets to, different from the default location. By default, assets are imported to store/outputFiles/dam-export-assets/.
-importBinary <value>
Set to true or false to include or exclude binary files during the import. The default is true.

Note

Optional parameters are -exportPath and -exportBinary.If the -exportPath value is not a relative or absolute path, the exported assets will be placed in the container and will not persist after the command completes.

For example: -exportPath outputFileDirectory

For example:

dxclient manage-dam-assets import-assets -dxProtocol https -hostname <hostname> -dxPort <dxPort> -dxUsername <dxUsername> -dxPassword <dxPassword> -damAPIPort <damAPIPort> -ringAPIPort <ringAPIPort> -exportPath <exportPath> -importBinary <importBinary>
