HCL DX Usage of UDP and ICMP Protocols

On a default HCL DX installation, UDP transport chains are disabled. Some versions of HCL Sametime used UDP. However, on a running system, some UDP ports may appear as listening:

  • 1506286/java: WebSphere_Portal process
  • Port 10045: configured, purpose unknown
  • Ports 5000 and 5001 used by WebSphere Application Server (WAS) for discovery between nodes

These ports support node discovery within WebSphere Application Server.

Container transport chains

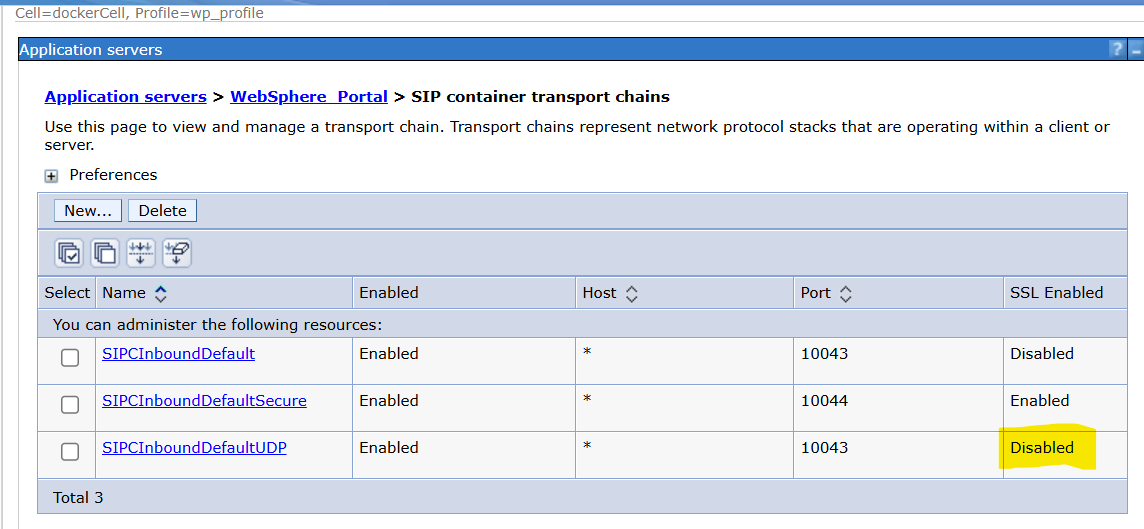

Figure 1: UDP ports used for container transport chains in WAS.

Example: Multicast endpoints configured in WebSphere Application Server:

<specialEndpoints xmi:id="NamedEndPoint_1659472503768" endPointName="NODE_IPV6_MULTICAST_DISCOVERY_ADDRESS">
    <endPoint xmi:id="EndPoint_1659472503772" host="ff01::1" port="5001"/>
</specialEndpoints>
<specialEndpoints xmi:id="NamedEndPoint_1659472503769" endPointName="NODE_MULTICAST_DISCOVERY_ADDRESS">
    <endPoint xmi:id="EndPoint_1659472503773" host="232.133.104.73" port="5000"/>
</specialEndpoints>

Notes for Security Reviewers

Default Behavior: HCL DX does not require UDP or ICMP for normal operation. TCP is used for all core communications.

  • UDP Ports Observed: Ports 5000 and 5001 are used by WAS for internal node discovery. They are not required for HCL DX services outside the cluster.
  • WebSphere_Portal Process: The 1506286/java process may open UDP ports for WAS internal operations.
  • Unknown Ports: Port 10045 is configured by WAS but does not affect HCL DX functionality; review in context of internal security policies.
  • Security Implication: Disabling these UDP ports externally does not affect HCL DX normal operations. These ports are relevant only for intra-cluster node discovery within the WAS environment.
  • ICMP: No HCL DX component requires ICMP for normal operation.
