Sizing guidance for rendering in a medium Kubernetes configuration

This topic describes the environments used for rendering in a medium Kubernetes configuration. It also includes test results and recommendations. You can also find the test results and recommendations for medium configurations on this page.

Methodology for testing

This sizing activity rendered scenarios for the Web Content Manager (WCM), Digital Asset Management (DAM), and HCL Digital Experience (DX) pages and portlets.
The activity used a rendering setup enabled in AWS/Native Kubernetes, where Kubernetes was installed directly on Amazon Elastic Compute Cloud (EC2) instances.
A combined run rendered WCM content, DAM assets, and DX pages and portlets. The load distribution was as follows: WCM content (40%), DAM assets (30%), and DX pages and portlets (30%).
All systems were prepopulated before running the rendering tests.

To achieve the 10,000 concurrent users mark, an initial set of runs was done with a lower number of users on a multiple node setup with varying numbers of worker nodes. The tests started with three worker nodes. The number of worker nodes and pods were increased as needed to achieve the desired load with an acceptable error rate (< 0.01%). After establishing the number of nodes, further steps were taken to optimize the limits on the available resources for each pod, as well as the ratios of key pods to each other.

The following table contains the rendering scenario details for a medium configuration.

Concurrent users WCM pages DAM content Pages and portlets content
10,000 users 200 25,000 80

For more information about the setup of test data, See the following sections:

Environment

This section provides details for the Kubernetes cluster, JMeter agents, LDAP, and tuning setups used for this activity.

AWS/Native Kubernetes

The Kubernetes platform ran on an Amazon EC2 instance with the DX images installed and configured.
In AWS/Native Kubernetes, the tests were run on EC2 instances with one c5.xlarge master node and four c5.4xlarge worker nodes.
Testing began with c5.2xlarge worker nodes and transitioned to c5.4xlarge nodes after analyzing the results.
See the following node setup details:

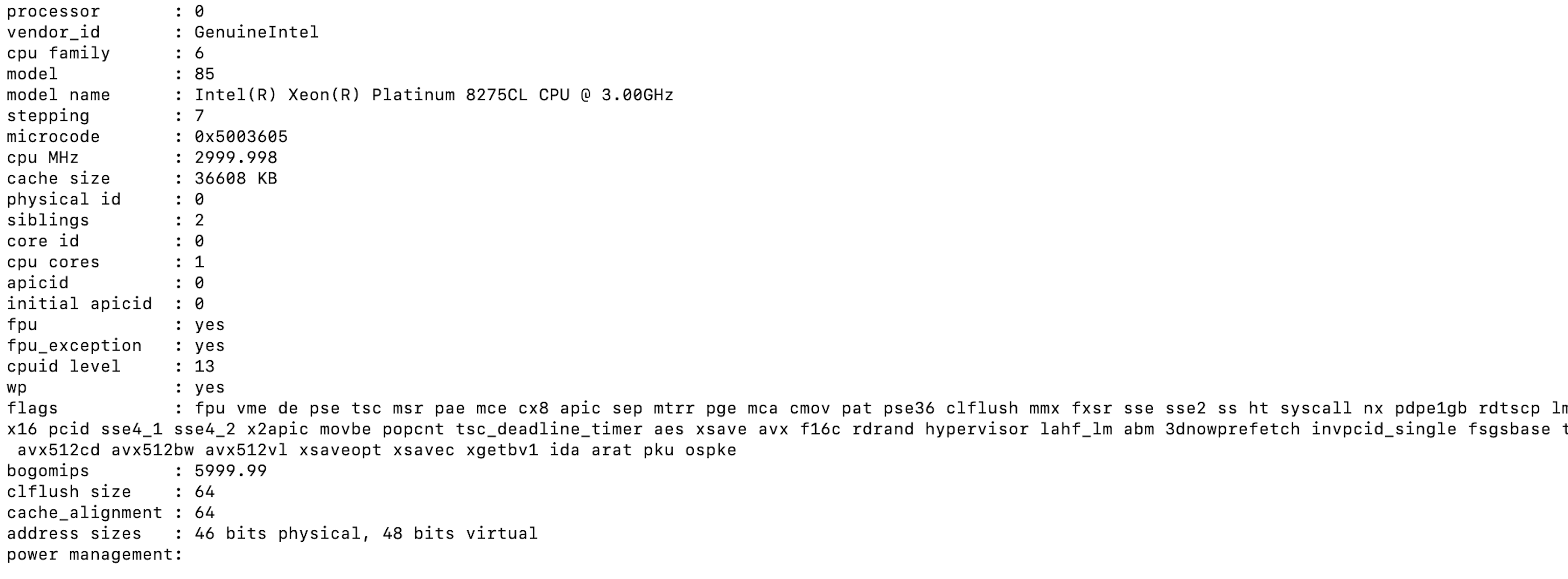

  • c5.large master node

    • Node details

    • Processor details

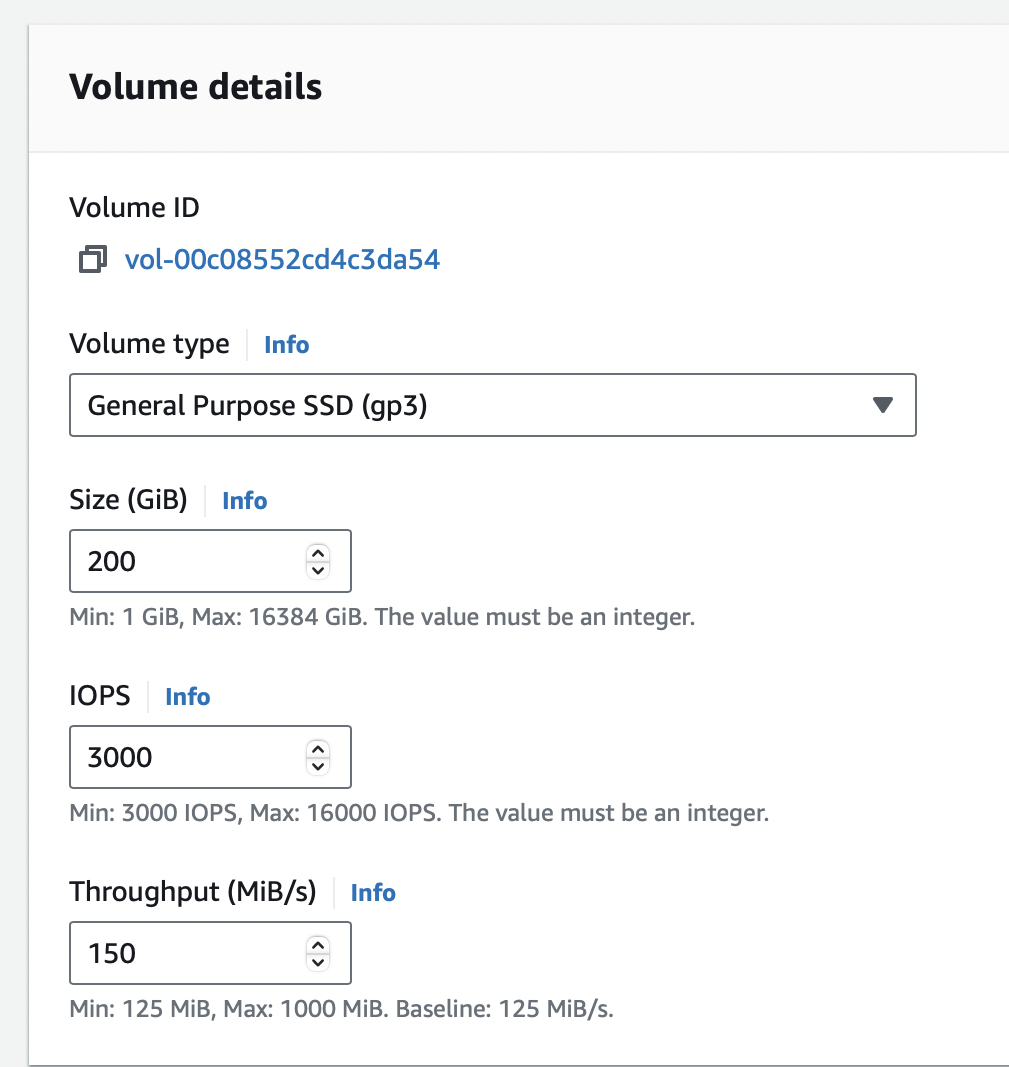

    • Volume details

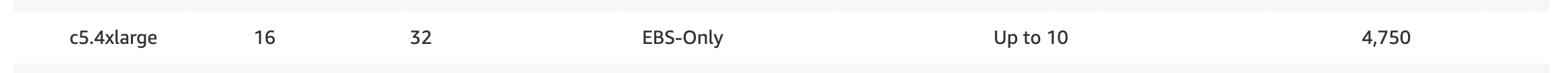

  • c5.4xlarge worker nodes

    • Information

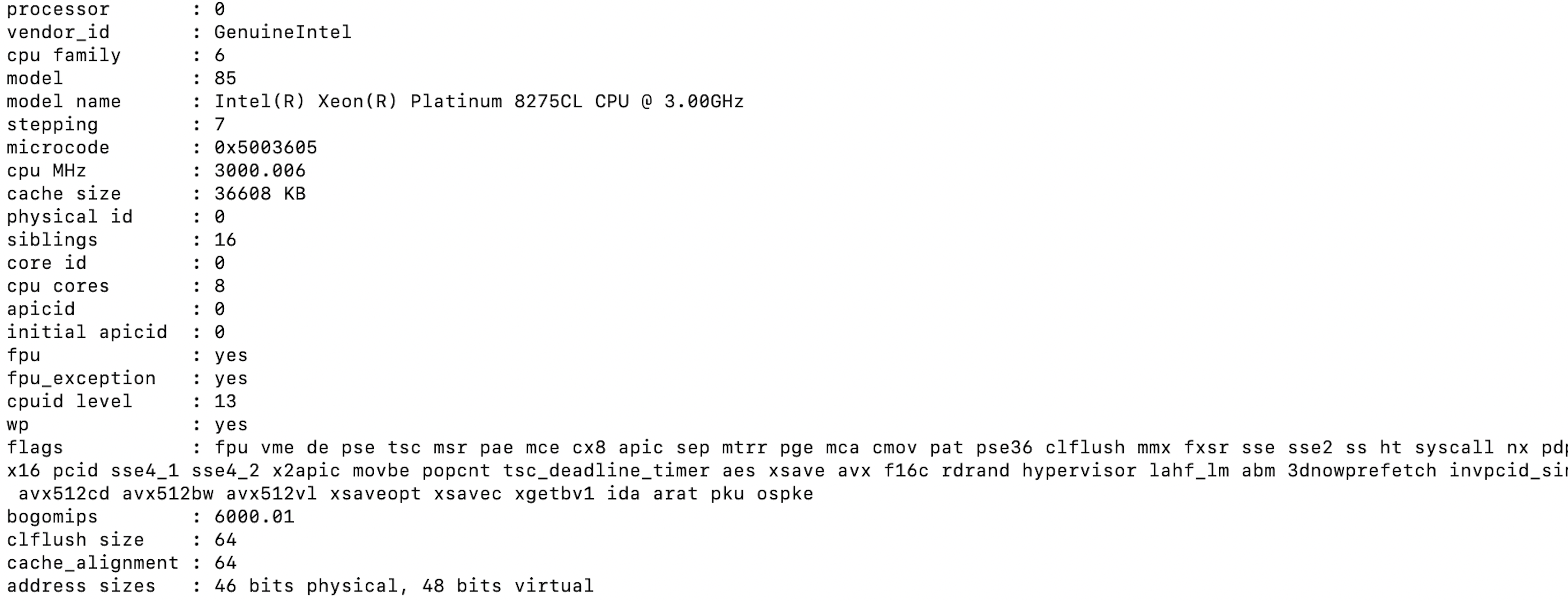

    • Processor details

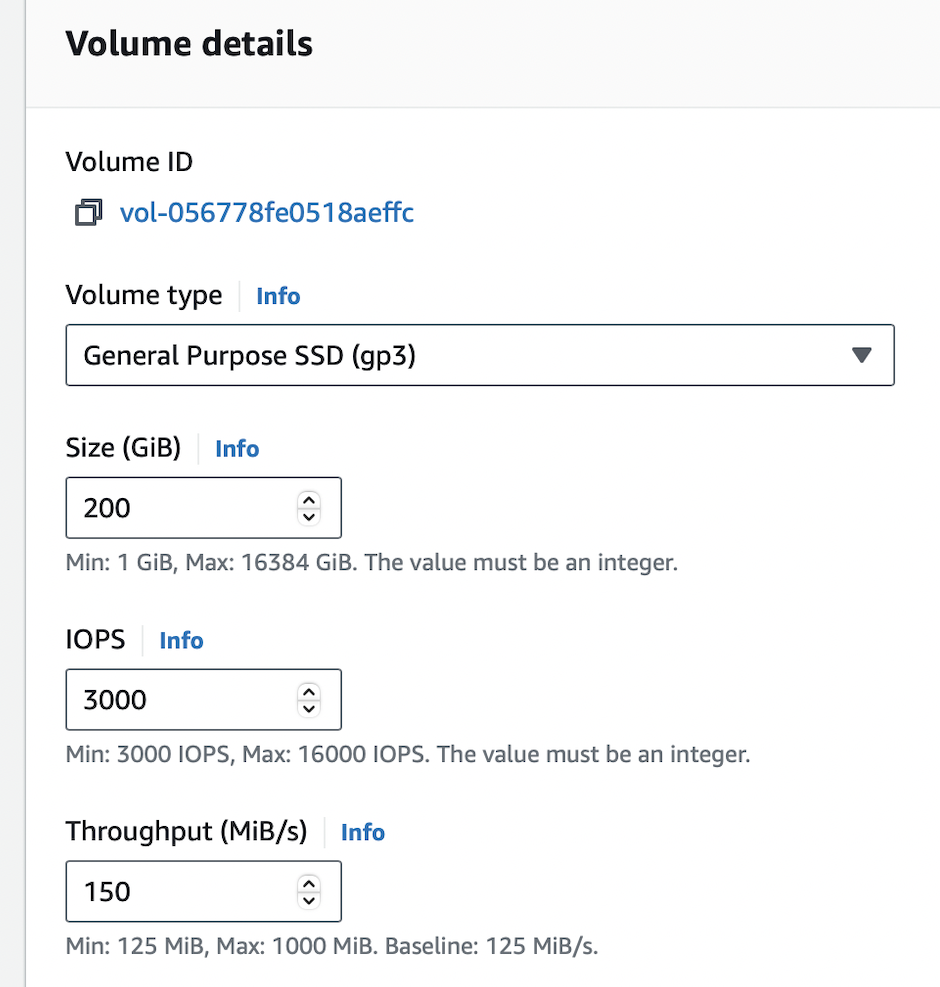

    • Volume details

DB2 instance

The tests used a c5.2xlarge remote DB2 instance for the core database. See the following DB2 setup details:

c5.2xlarge remote DB2 instance

  • DB2 details

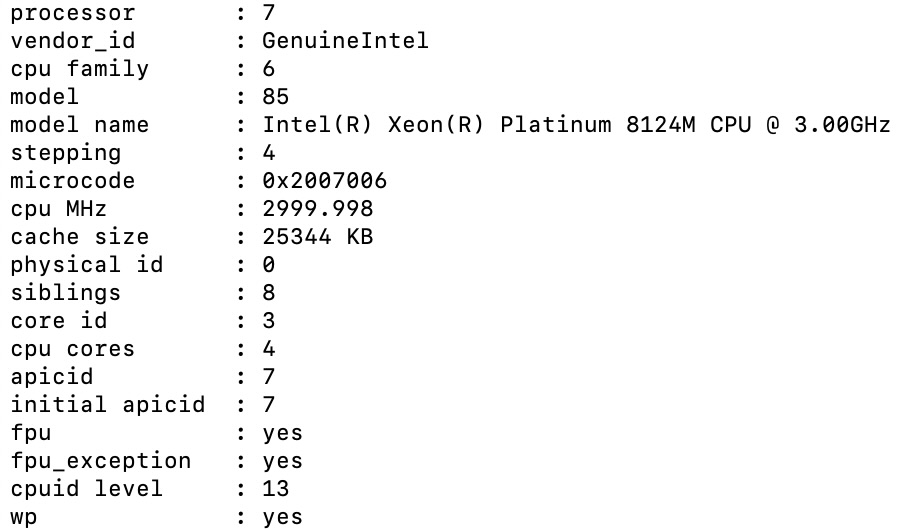

  • Processor details

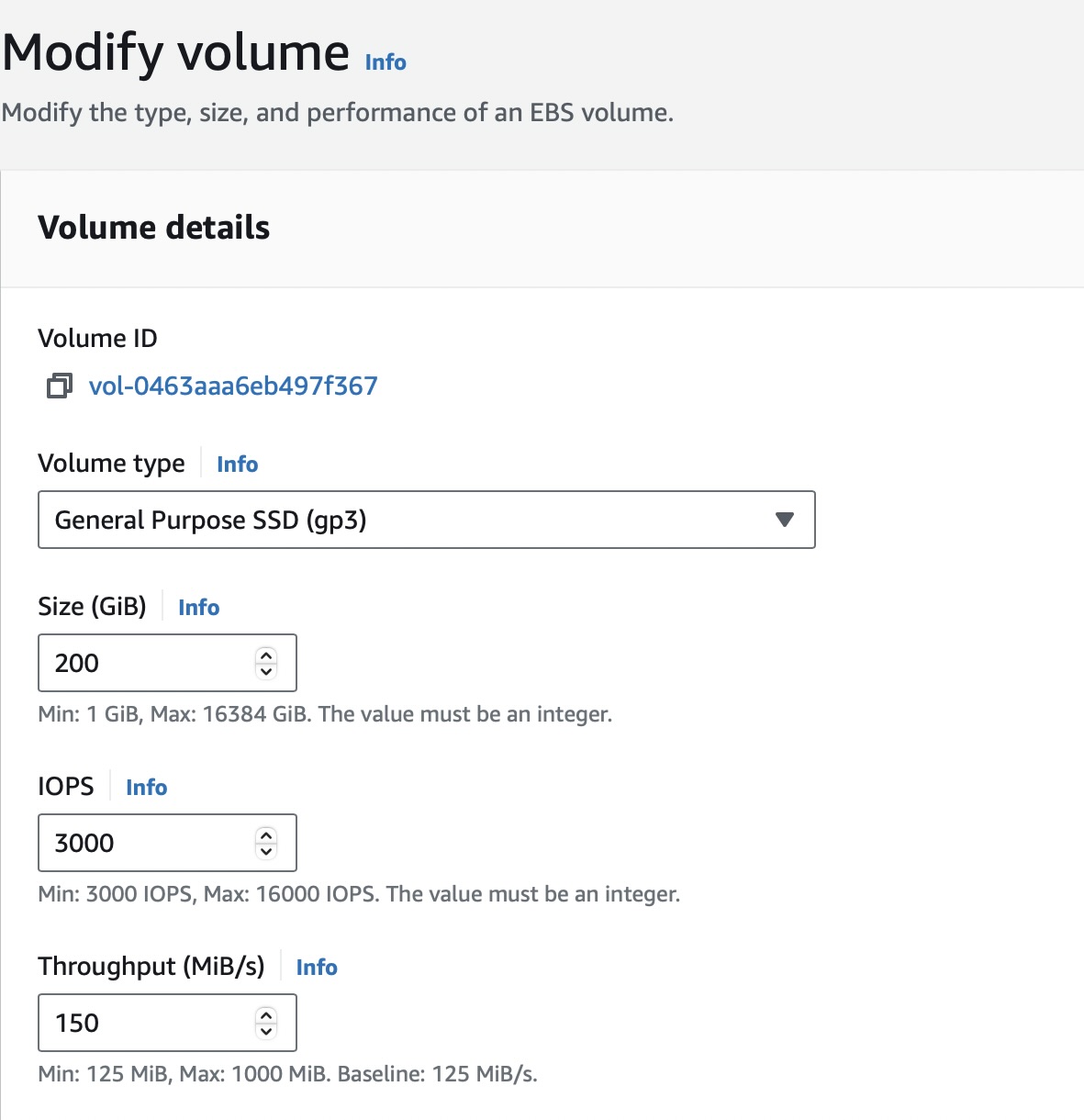

  • Volume details

JMeter agents

To run the tests, a distributed AWS/JMeter agents setup consisting of one primary and eight subordinate c5.2xlarge JMeter instances was used. See the following JMeter setup details:

c5.2xlarge JMeter instance

  • Instance details

  • Processor details

  • Volume details

Note

Ramp-up time is 1.5 seconds per user. The test duration includes the ramp-up time plus one hour at the peak load of concurrent users.

DX Core tuning

The following list contains details about the tuning and enhancements done to the DX Core during testing:

  • Defined the initial deployment as a rendering environment to trigger the tuning task for initial tuning. For more information, see Portal server performance tuning tool.

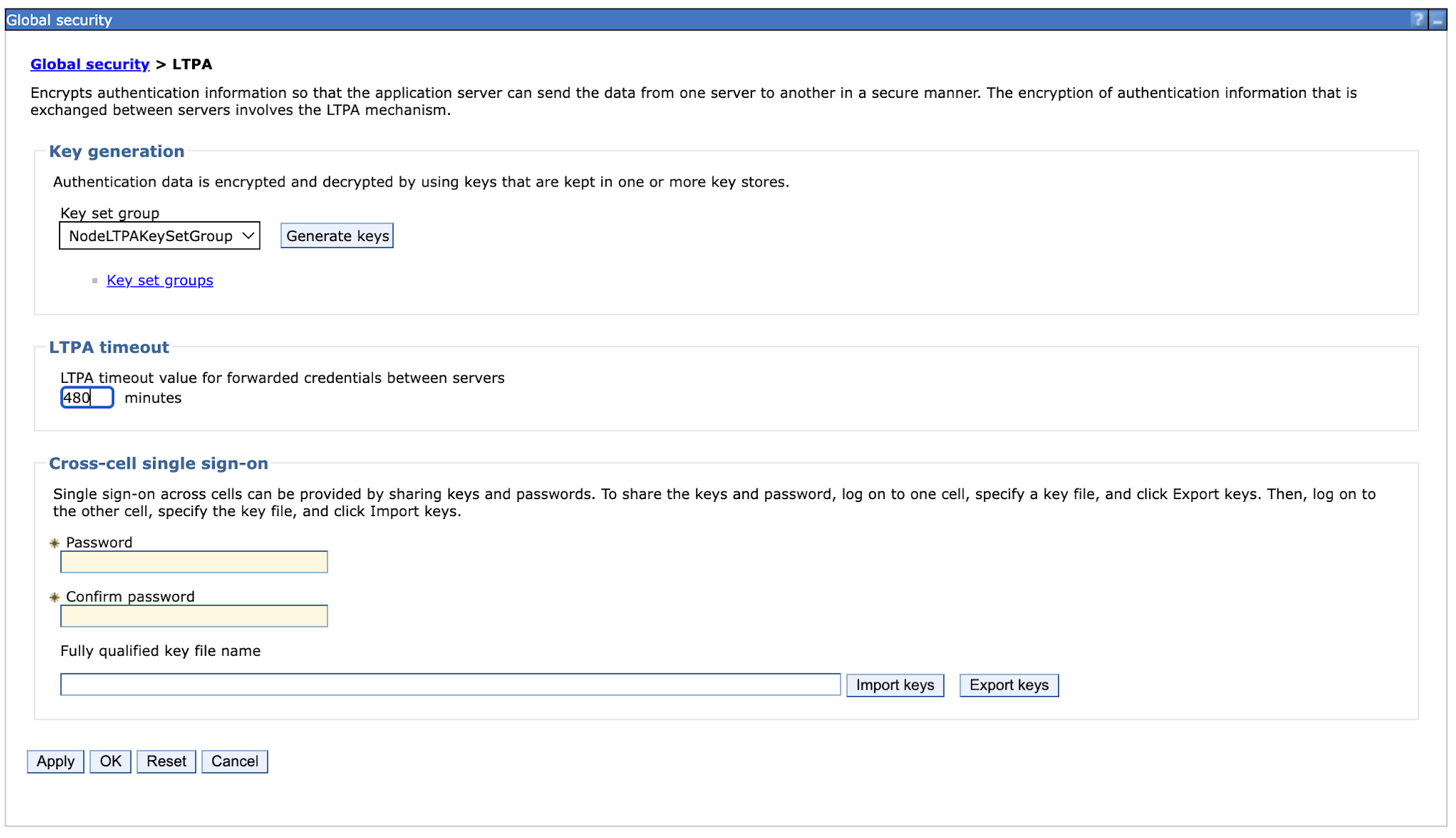

  • Increased the LTPA token timeout from 120 minutes to 480 minutes for the rendering tests.

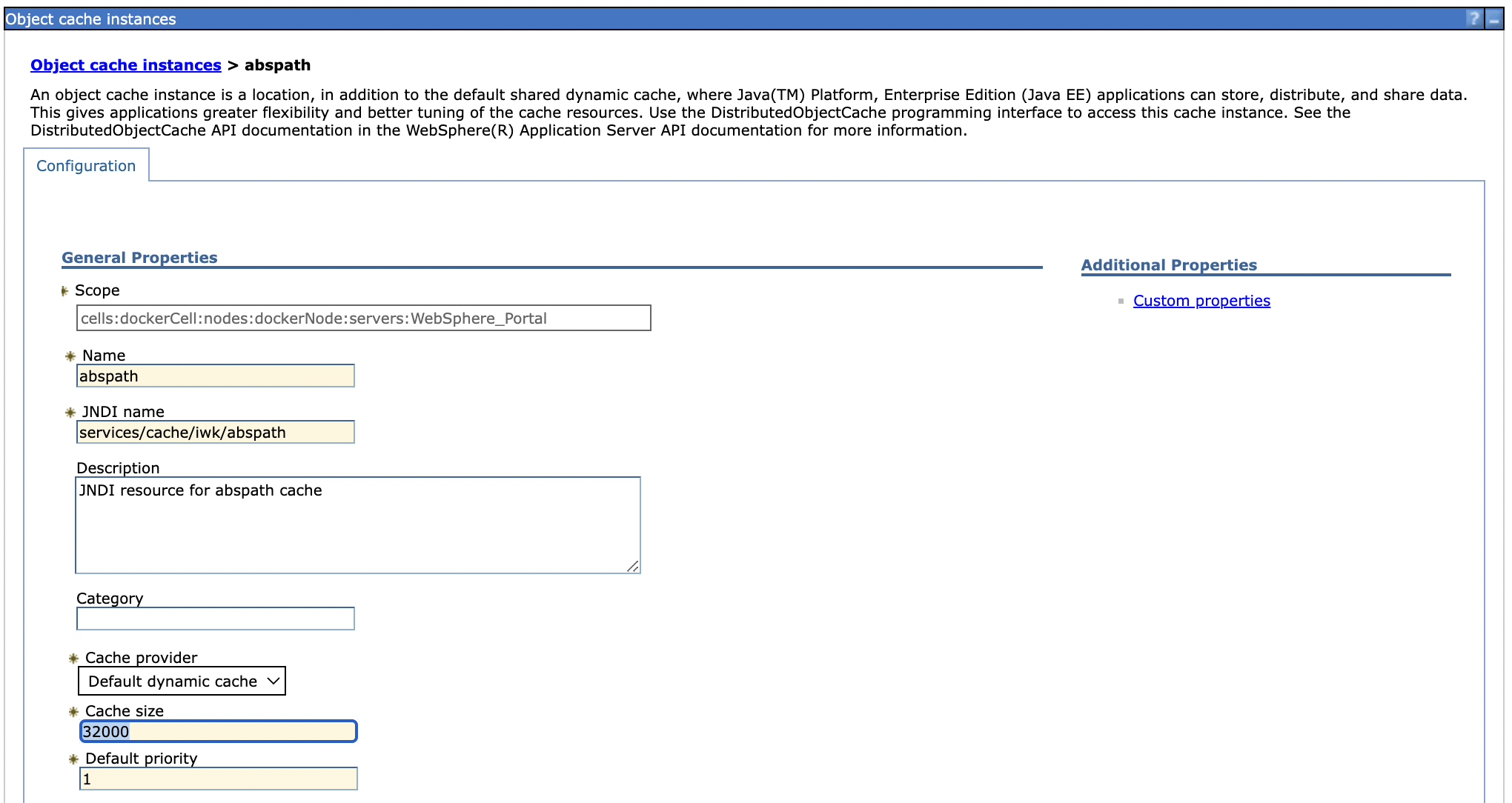

  • Updated the WCM object cache for rendering. See the Performance Tuning Guide for Traditional Deployments for more information.

  • Updated abspath, abspathreverse, processing, session, strategy, summary values, and WCM rendering values as per Performance Tuning Guide for Traditional Deployments.

  • Added a new custom property under Resource environment providers > WP CacheManagerService > Custom properties > cacheinstance.com.ibm.wps.resolver.friendly.cache.size.

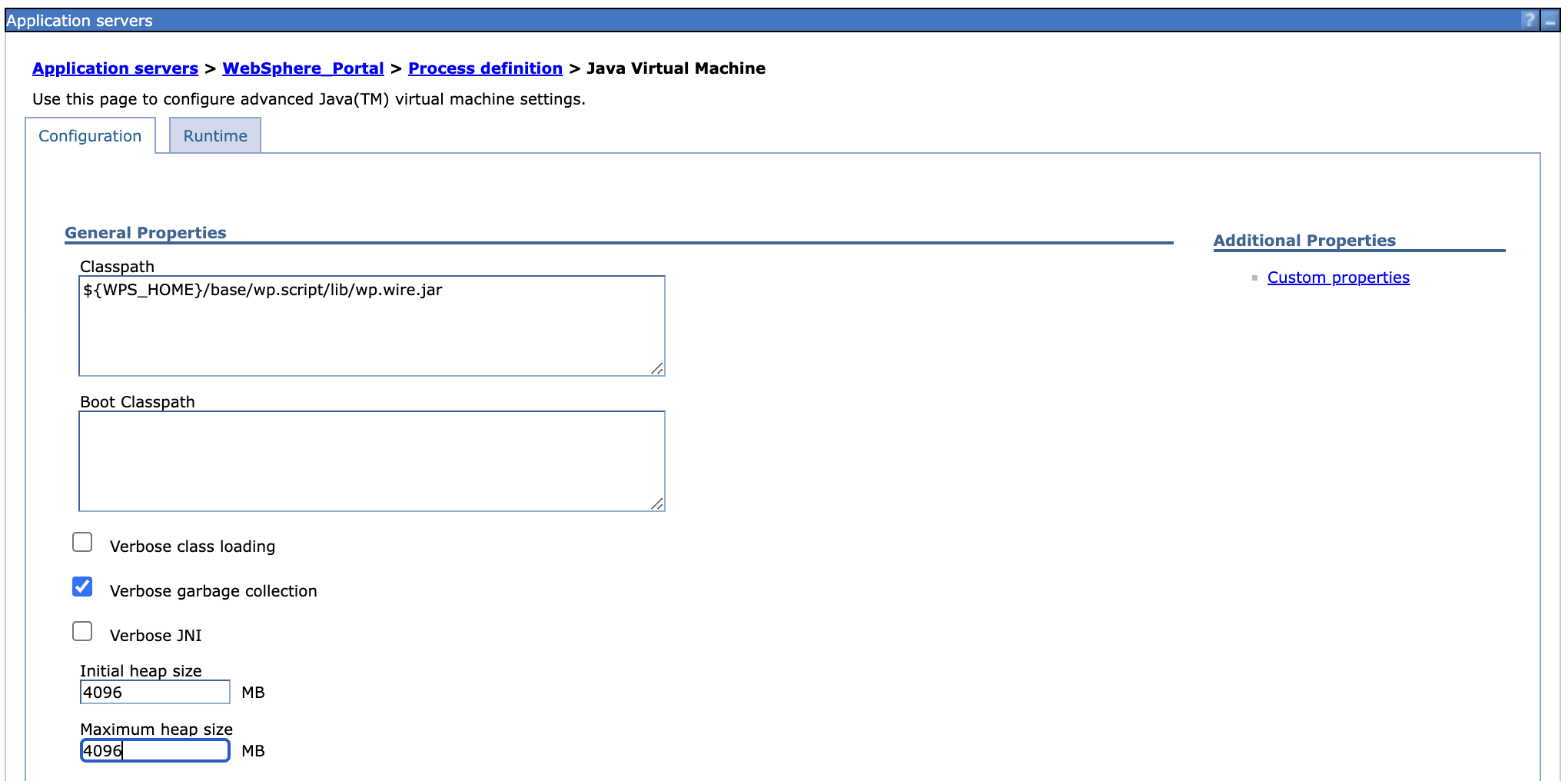

  • Adjusted JVM heap size from 3584 to 4096 under Application servers > WebSphere_Portal > Process_definition > Java Virtual Machine.

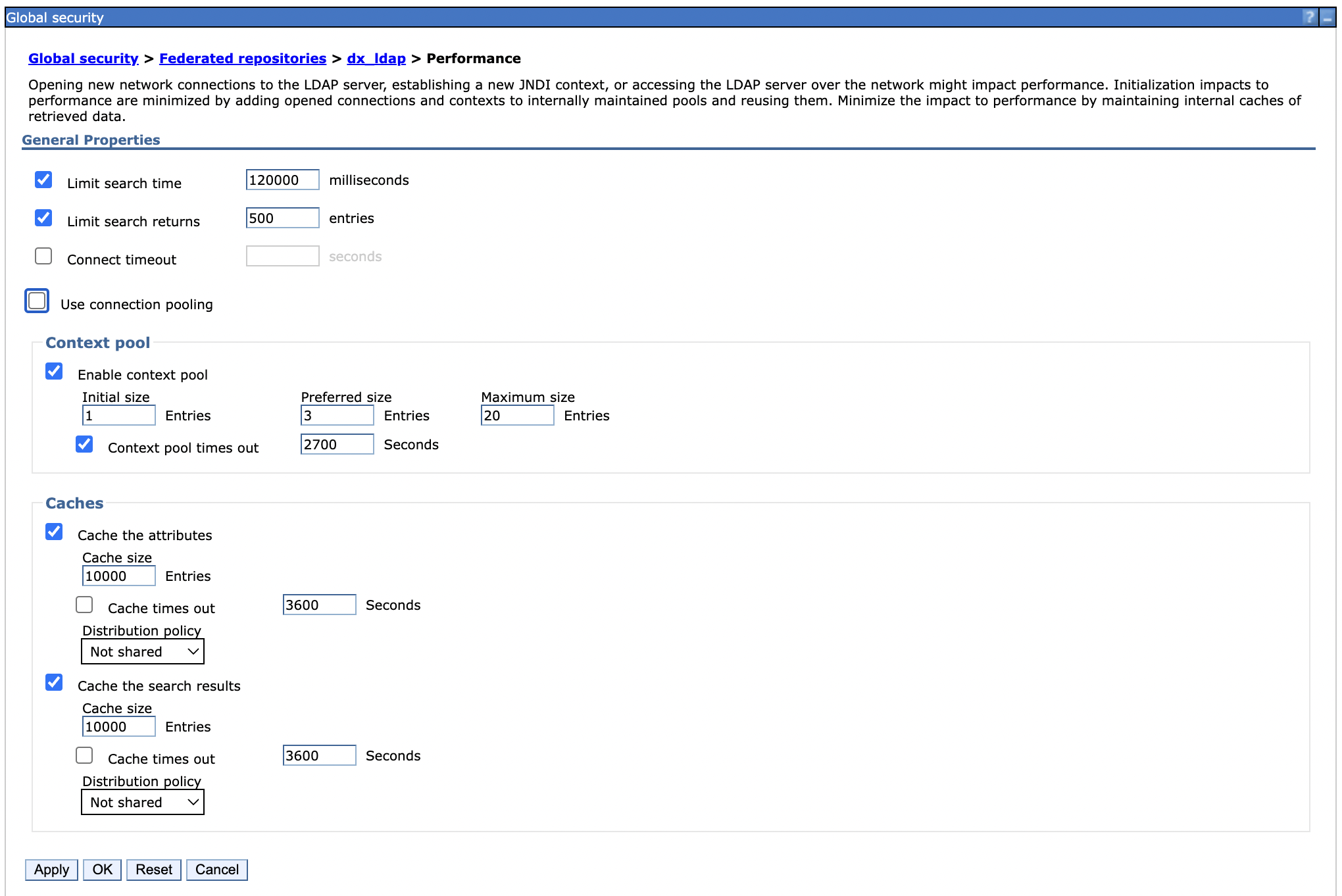

  • Set the LDAP user cache attributes and search to 10,000.

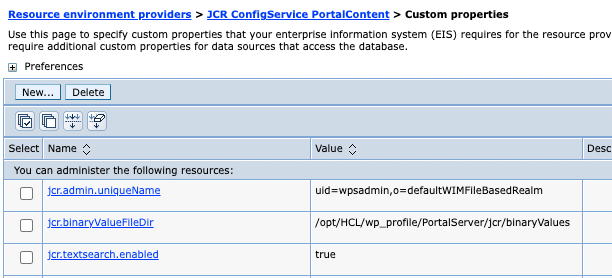

  • Disabled jcr.text.search under Resource environment providers > JCR ConfigService Portal Content > Custom properties because there is currently no authoring search functionality in these tests.

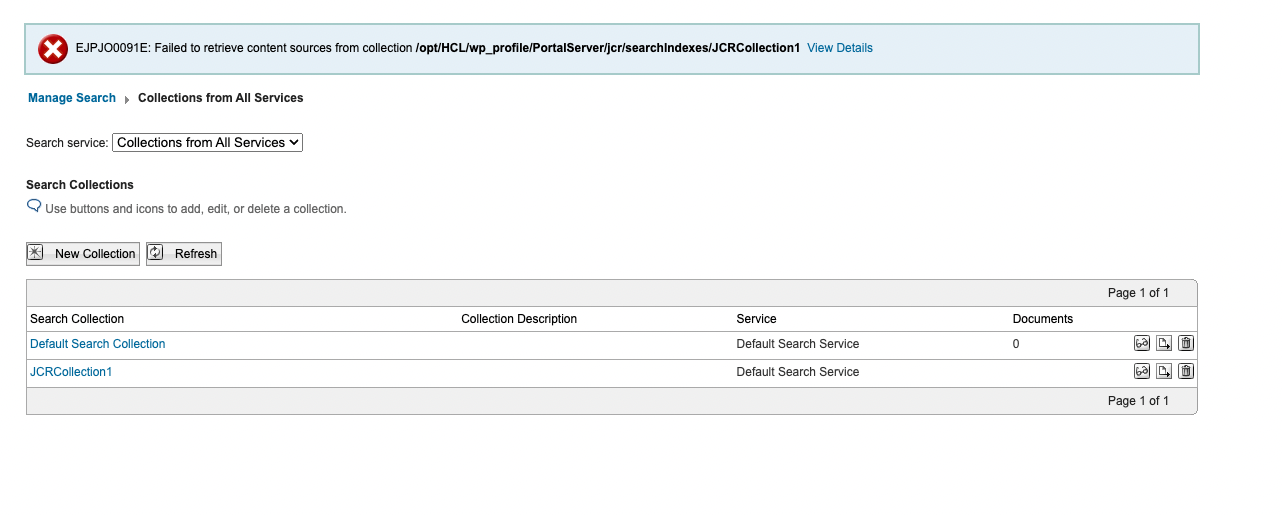

  • Deleted JCRCollection1 and Default Search Collection in Portal > Administration > Search > Search collections.

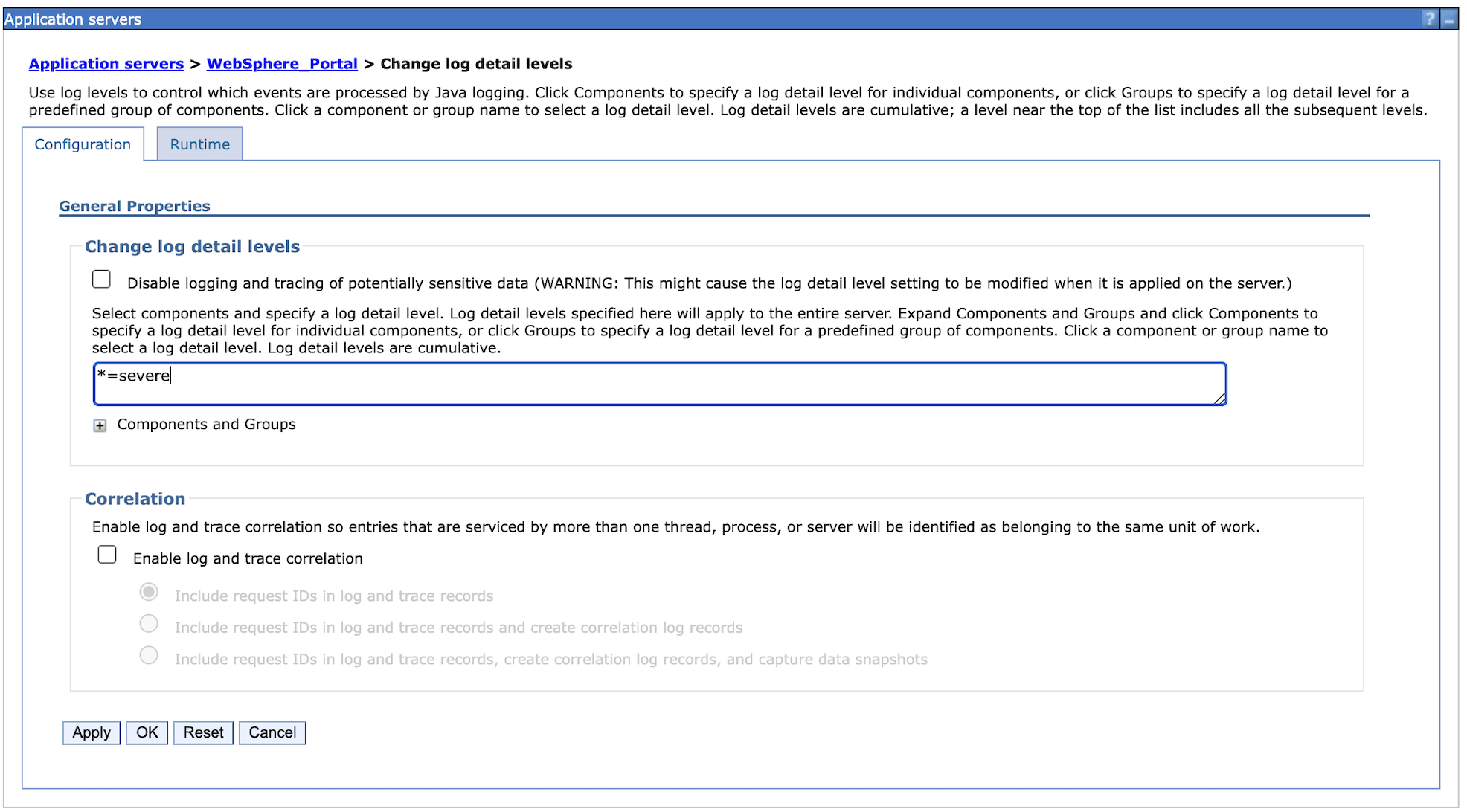

  • Logged level changes from info to severe in the WebSphere Application Server (WAS) for both configuration and run time.

  • Tuned DB2 by executing DB2 Reorg and Runstats.

Note

  • Neither fragment caching nor static resource caching were enabled to trigger actual stress and processing. In a customer scenario, it is recommended to enable both fragment caching and static resource caching.

  • For DAM, no tuning details are mentioned in this topic except for the pod resources like CPU and memory limits for all pods related to DAM, such as ring-api, persistence-node, persistence-connection-pool, and core. Since DAM uses Node.js, you can monitor CPU and memory usage using Prometheus and Grafana. Based on your observations, you can modify memory requests and limits in Kubernetes accordingly.

Modifications were also made to the initial Helm chart configuration during the tests. The following table outlines the pod count and limits for each pod. After applying these values, the setup showed significantly improved responsiveness. These changes allowed the system to handle 10,000 concurrent users with a substantial reduction in average response time and a minimal error rate.

Request Request Limit Limit
Component No. of pods cpu (m)
 memory (Mi)
 cpu (m)
 memory (Mi)
contentComposer 1 100 128 100 128
core 7 5600 8192 5600 8192
digitalAssetManagement 4 1000 2048 1000 2048
imageProcessor 1 200 2048 200 2048
openLdap 1 500 2048 500 2048
persistenceNode 2 1200 2048 1200 2048
persistenceConnectionPool 2 700 1024 700 1024
ringApi 2 2000 512 2000 512
runtimeController 1 100 256 100 256
haproxy 2 2000 1024 2000 1024
licenseManager 1 100 300 100 300
Total 24 56000 79532 56000 79532

Note

Values in bold are tuned Helm values while the rest are default minimal values.

For convenience, these values were added to the medium-config-values.yaml file in the hcl-dx-deployment Helm chart. To use these values, complete the following steps:

  1. Download the hcl-dx-deployment Helm chart from FlexNet or Harbor.

  2. Extract the hcl-dx-deployment-XXX.tgz file.

  3. In the extracted folder, navigate to hcl-dx-deployment/value-samples/medium-config-values.yaml and copy the medium-config-values.yaml file.

Results

The initial test runs were conducted on an AWS-distributed Kubernetes setup with one master and three worker nodes. The system successfully handled concurrent user loads of 1,000, 2,500, 4,000, and 5,000 users, with a low error rate (< 0.0001%). At 8,000 users, error rates increased dramatically and the response times went up. For a response time to be considered optimal, it should be under one second.

Subsequent tests were conducted on a setup with four worker nodes and 10,000 concurrent users. The error rates were low (<0.0001%) and response times were satisfactory. Adjustments were made to the number of pods, CPU, and memory of each of the following containers: HAProxy, Core, RingAPI, digitalAssetManagement, persistenceNode, and persistenceConnectionPool. These changes aimed to identify the most beneficial factors for the sizing activity.

For the HAProxy container, increasing the CPU allocation dramatically increased throughput. When the number of HAProxy pods was increased, the throughput decreased.

For the Core pod, increasing the CPU limit gave a boost to performance, but this effect eventually saturated at 5600 millicore. This result indicated that increasing the number of Core pods at this point provided additional benefits.

Conclusion

Several factors can affect the performance of HCL Digital Experience (DX) in Kubernetes.
Adjusting the number of running nodes, the number of pods, and the capacity of individual pods can help improve DX performance.

Note

For more information on OS tuning, Web Server tuning, JSF best practices, and other performance tuning guidelines and recommendations for traditional deployments, See the Performance Tuning Guide for Traditional Deployments.

Recommendations

  • For a medium-sized workload in AWS, start the Kubernetes cluster with one master and four worker nodes.

  • To increase the throughput for the HAProxy and RingAPI containers, increase their CPU allocations. Note that increasing the number of pods does not increase throughput.

  • To improve performance for the DAM and persistence-node pods, increase the CPU limits first.
    Then, increase the number of pod replicas. Increasing the number of pods also improves DAM throughput.

  • To support a higher number of authenticated users during testing, increase the OpenLDAP pod values.
    The deployment of the OpenLDAP container in a production environment isn’t supported.
    For more information, see Configure applications – OpenLDAP configuration.

  • To optimize the Core container, increase the CPU allocation until the container saturates. After the optimal CPU level is determined, increase the number of pods to boost performance.

To ensure optimal performance and stability of HCL DX on Kubernetes, it is essential for you to configure JVM heap memory and pod resource limits correctly. Refer to the following best practices in the JVM heap and pod resource guidelines for performance runs when tuning memory allocation.
