Sizing guidance for rendering in a small Kubernetes configuration
This topic provides the details of the environments used for rendering in a small Kubernetes configuration and for rendering with the upper limit in a single-node Kubernetes configuration. You can also find the test results and recommendations for small configurations on this page.
Methodology
This sizing activity rendered scenarios for the Web Content Manager (WCM), Digital Asset Management (DAM), and HCL Digital Experience (DX) pages and portlets. This activity used a rendering setup enabled in AWS/Native-Kubernetes, where Kubernetes is installed directly in Amazon Elastic Cloud Compute (EC2) instances. A combination run was performed that rendered WCM content, DAM assets, and DX pages and portlets. The load distribution was WCM content (40%), DAM assets (30%), and DX pages and portlets (30%). All systems were pre-populated before performing the rendering tests.
To achieve the 1,000 concurrent users mark, an initial set of runs was done with a lower number of users on a single node setup. The tests started with the desired load of 1,000 users and an acceptable error rate (< 0.01%). Further steps were taken to optimize the limits on the available resources for each pod.
The following table contains the rendering scenario details for a small configuration.
| Concurrent users | WCM pages | DAM content | Pages and portlets content |
|---|---|---|---|
| 1,000 users | 20 | 2,500 | 8 |
For more information about the setup of test data, refer to the following sections:
Environment
This section provides details for the Kubernetes cluster, JMeter agents, and database.
AWS/Native Kubernetes
The Kubernetes platform ran on an Amazon EC2 instance with the DX images installed and configured. In AWS/Native Kubernetes, the tests were executed in EC2 instances with one c5.2xlarge node. Refer to the following node setup details:
c5.2large node
-
Node details
-

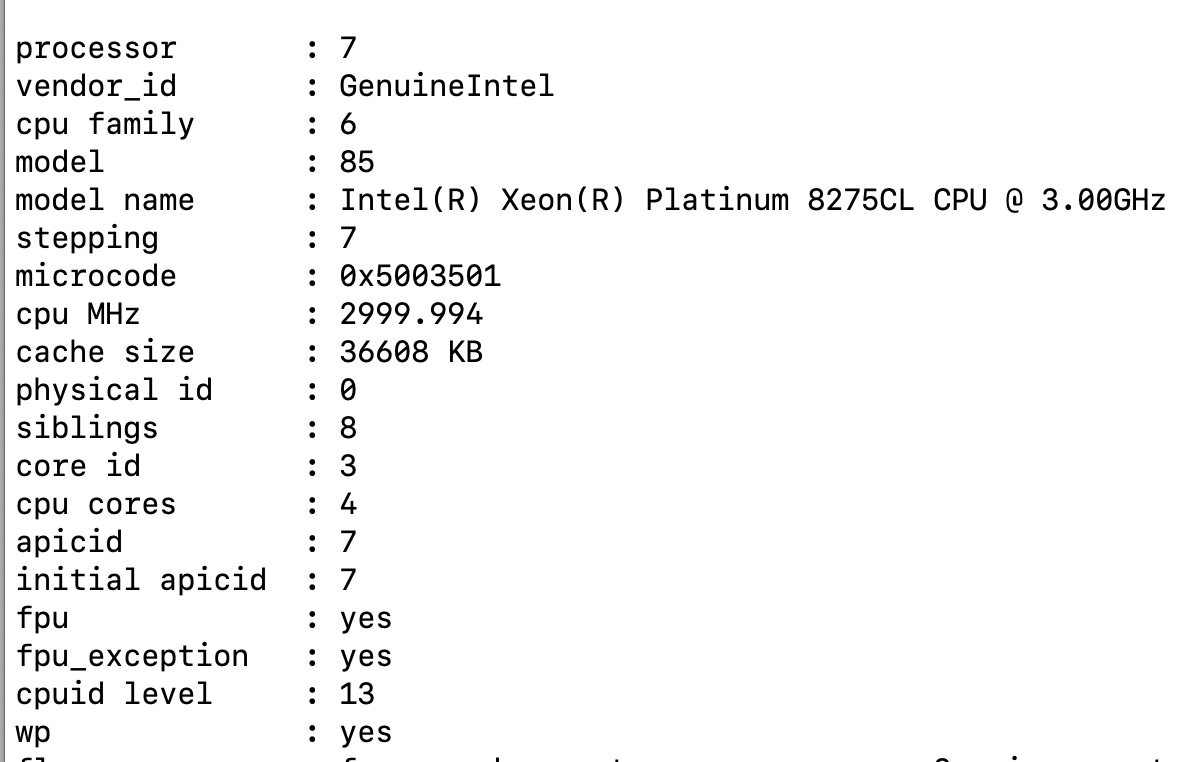

Processor details
-

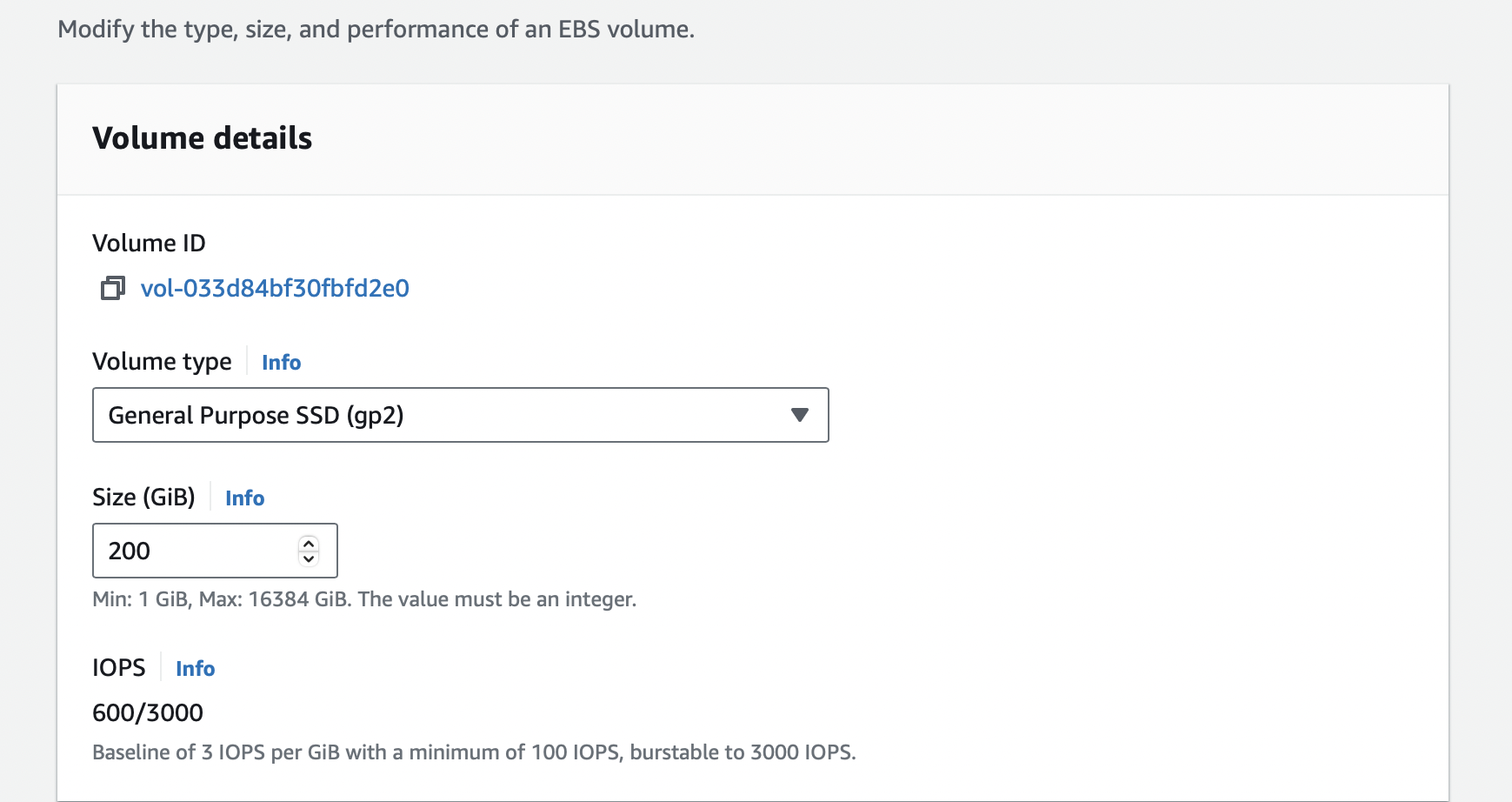

Volume details
DB2 instance
The tests used a c5.2xlarge remote DB2 instance for the core database. Refer to the following DB2 setup details:
c5.2xlarge remote DB2 instance
-
DB2 details
-

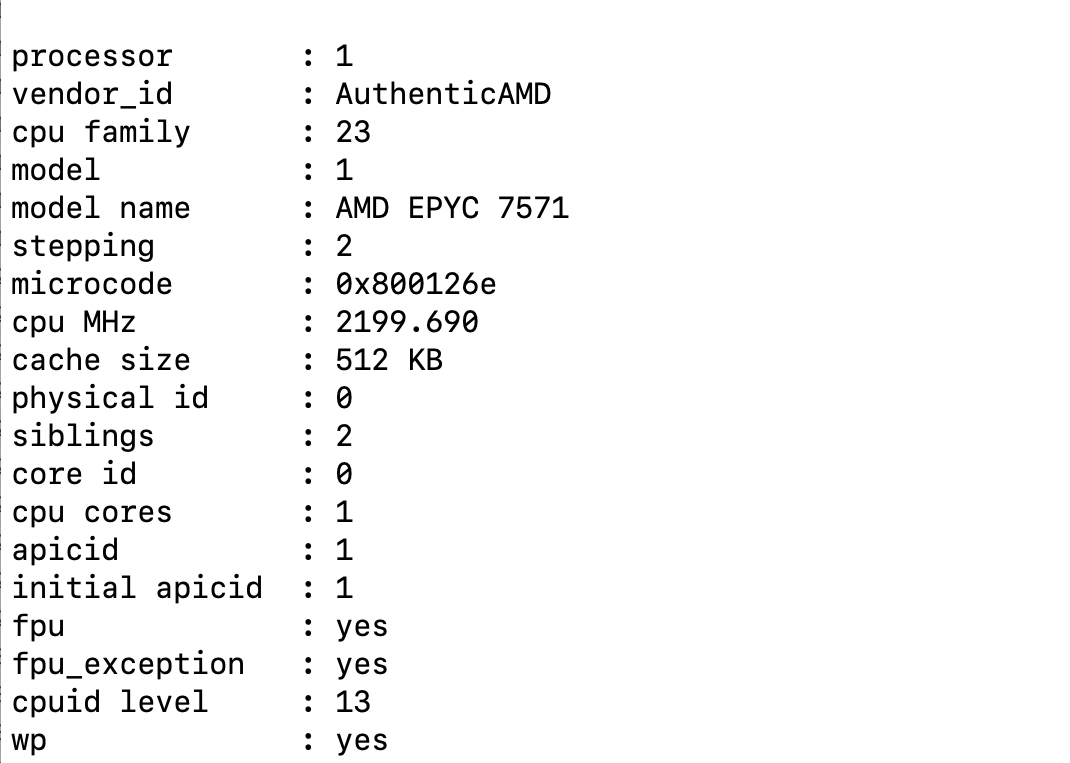

Processor details
-

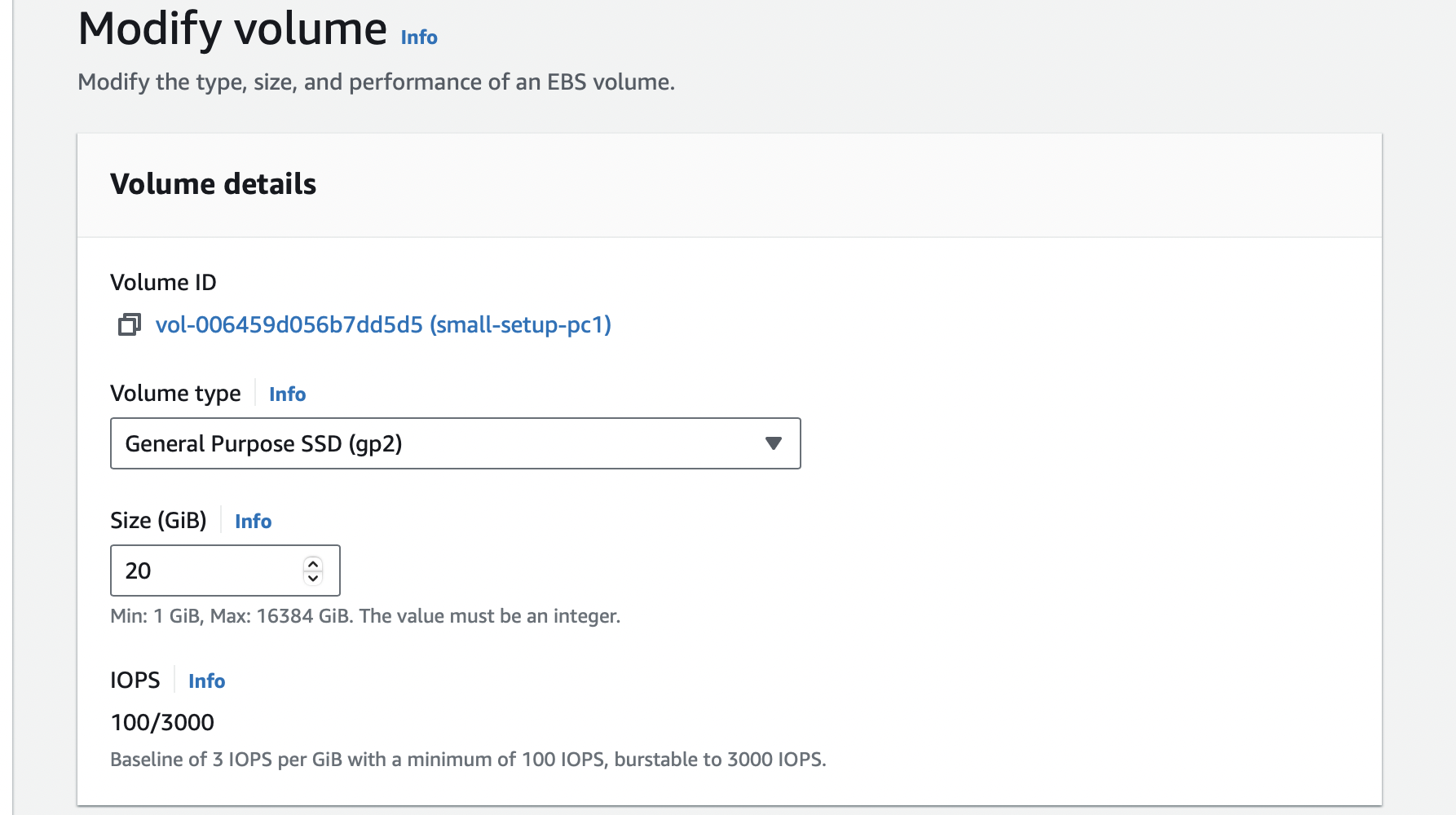

Volume details
JMeter agents
To run the tests, a distributed AWS/JMeter agents setup consisting of one primary and two subordinate t2.xlarge instances was used. Refer to the following JMeter setup details:

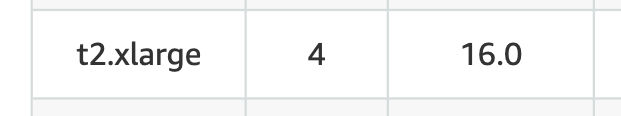

t2.xlarge JMeter instance
-
Instance details
-

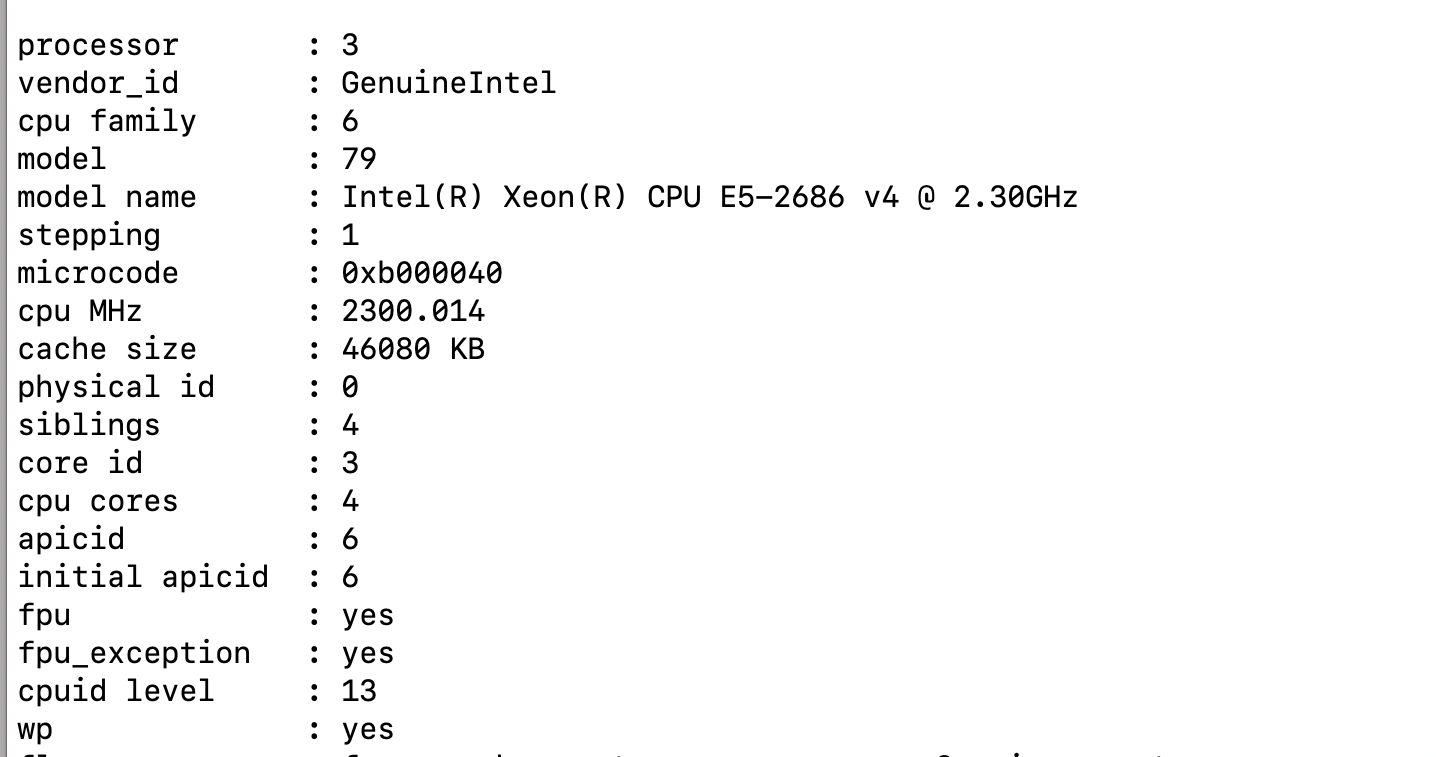

Processor details
-
Network details
-

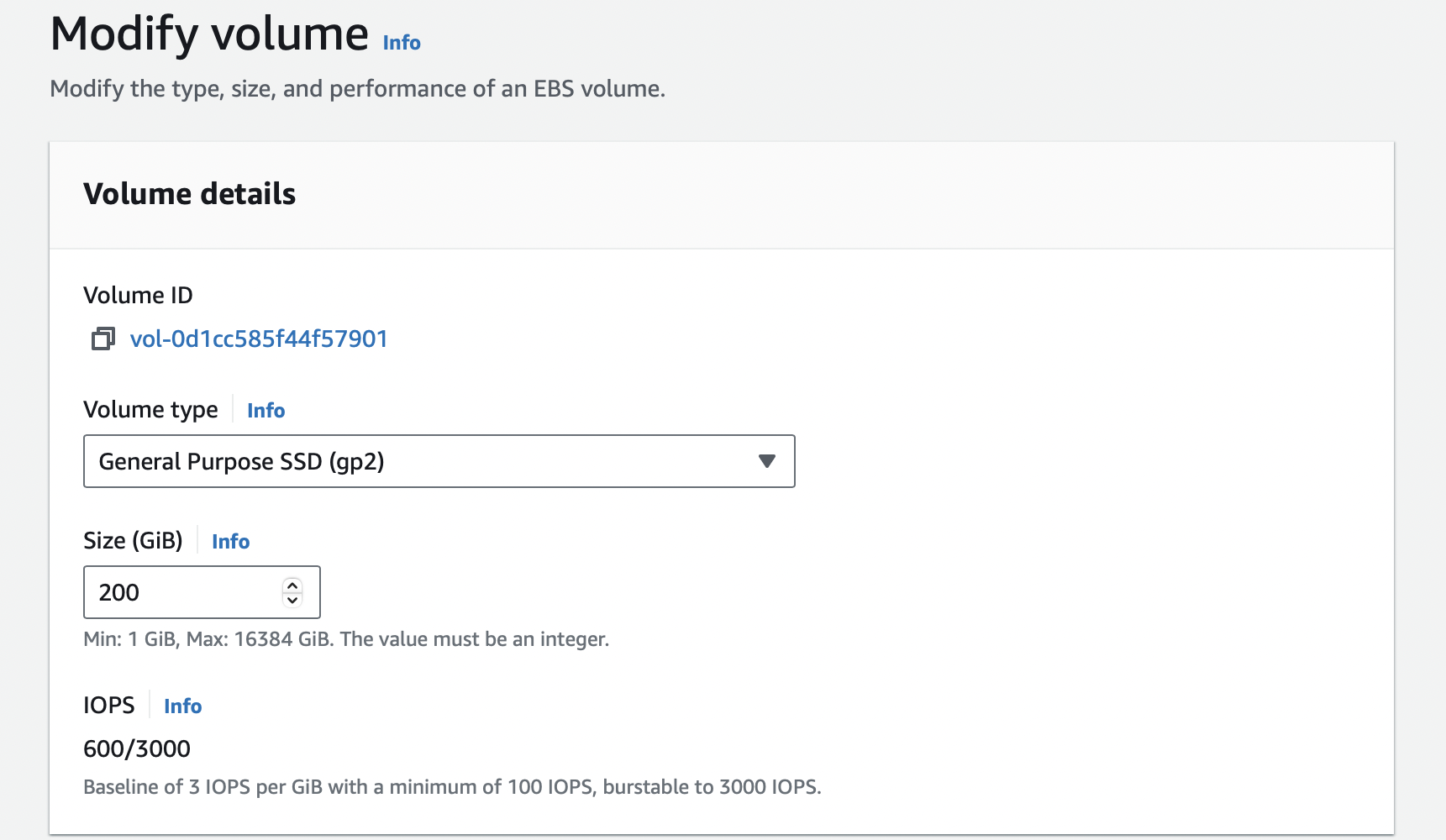

Volume details
Note
Ramp-up time is 1.5 seconds per user. The test duration includes the ramp-up time plus one hour at the peak load of concurrent users.
DX Core tuning
Modifications were made to the initial Helm chart configuration during the tests. The following table outlines the pod count and limits for each pod. After applying these values, the setup showed significantly improved responsiveness. These changes allowed the system to handle 1,000 concurrent users with an improved error rate, average response time, throughput, and an event loop lag of Ring API containers.
| Request | Request | Limit | Limit | ||
|---|---|---|---|---|---|
| Component | No. of pods | CPU (m) |
Memory (Mi) |
CPU (m) |
Memory (Mi) |
| contentComposer | 1 | 100 | 128 | 100 | 128 |
| core | 1 | 3000 | 5000 | 3000 | 5000 |
| digitalAssetManagement | 1 | 500 | 1536 | 500 | 1536 |
| imageProcessor | 1 | 200 | 2048 | 200 | 2048 |
| openLdap | 1 | 200 | 768 | 200 | 768 |
| persistenceNode | 1 | 500 | 1024 | 500 | 1024 |
| persistenceConnectionPool | 1 | 500 | 512 | 500 | 512 |
| ringApi | 1 | 500 | 512 | 500 | 512 |
| runtimeController | 1 | 100 | 256 | 100 | 256 |
| haproxy | 1 | 700 | 1024 | 700 | 1024 |
| licenseManager | 1 | 100 | 300 | 100 | 300 |
| Total | 11 | 6400 | 13108 | 6400 | 13108 |
Note
Values in bold are tuned Helm values while the rest are default minimal values.
For convenience, these values were added to the small-config-values.yaml file in the hcl-dx-deployment Helm chart. To use these values, refer to the following steps:
-
Download the
hcl-dx-deploymentHelm chart from FlexNet or Harbor. -
Extract the
hcl-dx-deployment-XXX.tgzfile. -
In the extracted folder, navigate to
hcl-dx-deployment/value-samples/small-config-values.yamland copy thesmall-config-values.yamlfile.
Results
The initial test runs were conducted on an AWS-distributed Kubernetes setup with a single node. The system successfully handled concurrent user loads of 100, 200, 400, and 500 users, with a low error rate (0.0%). At 600 users, error rates increased dramatically and response times went up. For a response time to be considered optimal, it should be under one second. All the errors came from WCM and DX Pages and Portlets.
Test results were analyzed in Prometheus and Grafana dashboards. For HAProxy and Core pods, the CPU and memory limits were fully utilized. These limits were increased based on the CPU and memory usage observations from Grafana during the load test. Increasing the CPU and memory limits of HAProxy and Core pods resolved the errors.
In addition, the event loop lag for RingAPI pod was on the higher end at 400 ms for a user load of 500. After adjusting the CPU and memory limits of the RingAPI pod, the vent loop lag was reduced to 6.6 ms.
From these observations, CPU and memory limits of Core, RingAPI, and HAProxy pods were tuned one by one to see if no errors occur during a user load of 600 to 1,000 users.
Conclusion
This performance tuning guide aims to understand how the ratios of key pod limits can improve the rendering response time in a simple single pod system. This is an important step before attempting to illustrate the impact of scaling of pods. This guide concludes that:
- Changes to the pod limits for the following pods significantly improve the responsiveness of the setup and enable the system to handle more users.
| Pod Name | Minimum Number of Pods | Container | Container Image | Container CPU Request and Limit | Container Memory Request and Limit |
|---|---|---|---|---|---|
| core | 1 | core | core | 3000 m | 5000 Mi |
| ringApi | 1 | ringApi | ringApi | 500 m | 512 Mi |
| haproxy | 1 | haproxy | haproxy | 700 m | 1024 Mi |
- The modifications recommended in small-config-helm-values lead to an improved response time and throughput by 50% compared to using the default minimal values in the Helm chart.
Note
For more information on OS tuning, Web Server tuning, JSF best practices, and other performance tuning guidelines and recommendations for traditional deployments, refer to the Performance Tuning Guide for Traditional Deployments.
Recommendations
-
For a small workload in AWS, start the Kubernetes cluster with a single node with at least a c5.2xlarge instance to support a load of 1,000 users. Currently, default CPU and memory values in the Helm chart are the minimum values for DX to work.
-
To hold more authenticated users for testing purposes, increase the OpenLDAP pod values. Note that the deployment of the OpenLDAP container in a production environment is not supported. For more information, refer to Configure Applications - OpenLDAP configuration.
Guidance for rendering with the upper limit in a single-node configuration
This section provides the details of the environments used for rendering with the upper limit in a single-node Kubernetes configuration. You can also find the test results and recommendations for single-node configurations in this section.
Methodology
This sizing activity rendered scenarios for the WCM, DAM, and HCL DX pages and portlets. This activity used a rendering setup enabled in AWS/Native-Kubernetes, where Kubernetes is installed directly in Amazon EC2 instances. A combination run was performed that rendered WCM content, DAM assets, and DX pages and portlets. The load distribution was WCM content (40%), DAM assets (30%), and DX pages and portlets (30%). All systems were pre-populated before performing the rendering tests.
To achieve the maximum throughput for users, an initial set of runs was done with a lower number of users on a single-node setup. Pods were then scaled accordingly.
The following table contains the rendering scenario details for a single-node upper limit configuration.
| Concurrent users | WCM pages | DAM content | Pages and portlets content |
|---|---|---|---|
| 10,000 users | 200 | 25,000 | 80 |
For more information about the setup of test data, refer to the following sections:
Environment
This section provides details for the Kubernetes cluster, JMeter, and database.
AWS/Native Kubernetes
The Kubernetes platform ran on an Amazon EC2 instance with the DX images installed and configured. In AWS/Native Kubernetes, the tests were executed in EC2 instances with one c5.xlarge master node instance. The test started with a c5.2xlarge node and moved to a c5.4xlarge node. After analyzing test results and further observations, the test moved and settled with a c5.9xlarge node. Refer to the following node setup details:

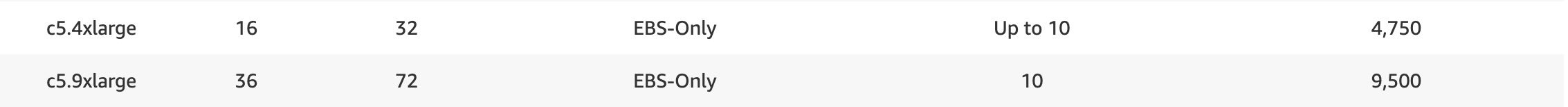

c5.9xlarge node
-
Node details
-

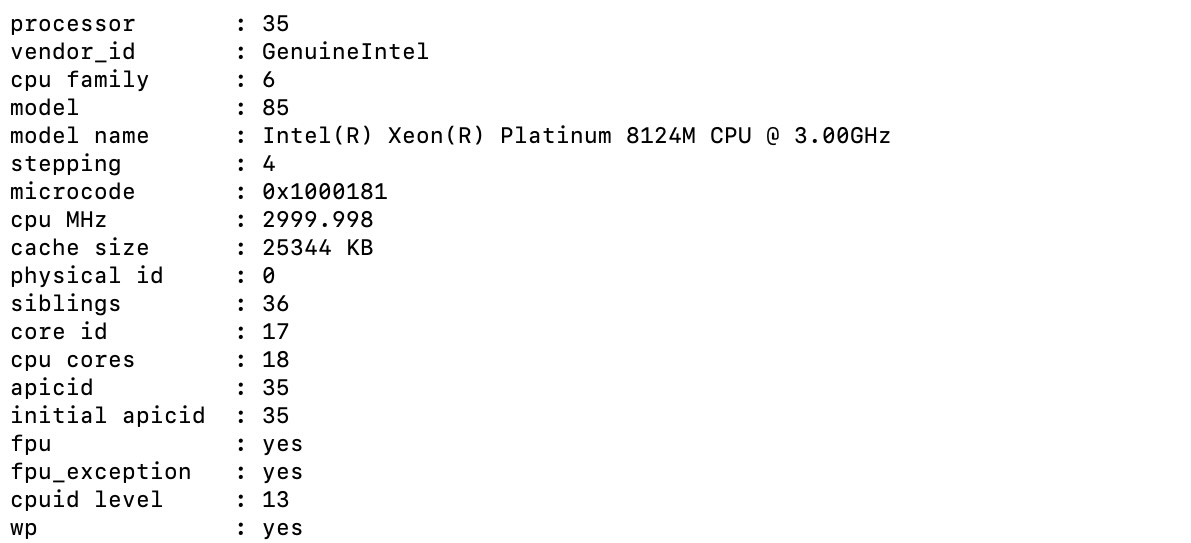

Processor details
-

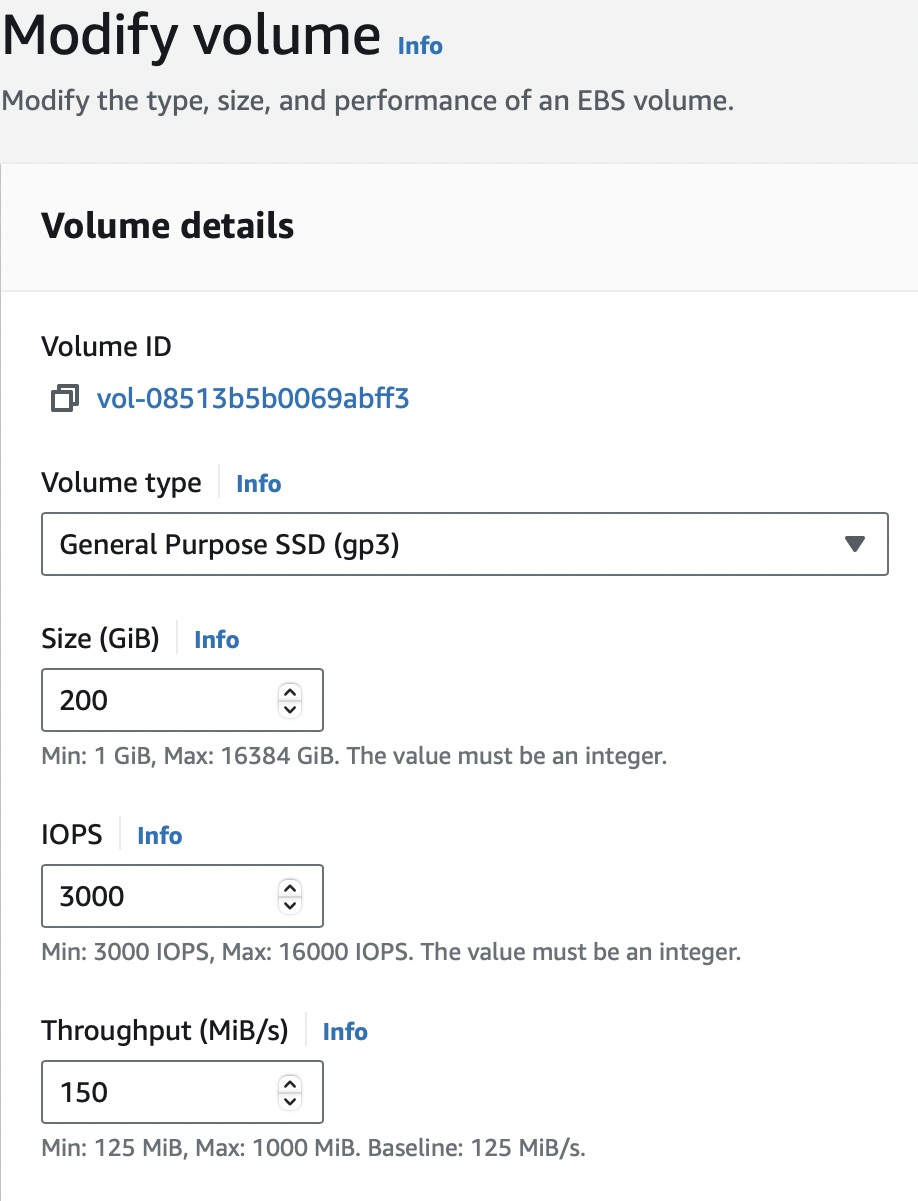

Volume details
DB2 instance
The tests used a c5.2xlarge remote DB2 instance for the core database. Refer to the following DB2 setup details:
c5.2xlarge remote DB2 instance
-
DB2 details
-
Processor details
-
Volume details
JMeter agents
To run the tests, a distributed AWS/JMeter agents setup consisting of one primary and eight subordinate instances was used. Refer to the following JMeter setup details:
c5.2xlarge JMeter instance
-
Instance details
-
Processor details
-
Volume details
Note
Ramp-up time is 1.5 seconds per user. The test duration includes the ramp-up time plus one hour at the peak load of concurrent users.
DX Core tuning
For tuning details and enhancements done to DX Core during the tests, refer to DX Core tuning.
Modifications were also made to the initial Helm chart configuration during the tests. The following table contains the number and limits for each pod in a single-node setup.
| Request | Request | Limit | Limit | ||
|---|---|---|---|---|---|
| Component | No. of pods | CPU (m) |
Memory (Mi) |
CPU (m) |
Memory (Mi) |
| contentComposer | 1 | 100 | 128 | 100 | 128 |
| core | 4 | 5000 | 8000 | 5000 | 8000 |
| digitalAssetManagement | 4 | 1000 | 2048 | 1000 | 2048 |
| imageProcessor | 1 | 200 | 2048 | 200 | 2048 |
| openLdap | 1 | 200 | 768 | 200 | 768 |
| persistenceNode | 2 | 1000 | 2048 | 1000 | 2048 |
| persistenceConnectionPool | 2 | 500 | 512 | 500 | 512 |
| ringApi | 2 | 800 | 512 | 800 | 512 |
| runtimeController | 1 | 100 | 256 | 100 | 256 |
| haproxy | 1 | 700 | 1024 | 700 | 1024 |
| licenseManager | 1 | 100 | 300 | 100 | 300 |
| Total | 20 | 30000 | 50860 | 30000 | 50860 |
Note
Values in bold are tuned Helm values while the rest are default minimal values.
Results
The initial test runs were conducted on an AWS-distributed Kubernetes setup with a single c5.2xlarge node and later transitioned to a c5.4xlarge node. The system successfully handled concurrent user loads of 1,000, 2,000, 3,000, and 5,000 with a < 0.01% error rate. At 6,000 users, error rates increased dramatically and the response times went up. For a response time to be considered optimal, it should be under one second.
Later tests were done from a c5.9xlarge instance and Horizontal Pod Autoscaling (HPA) was enabled for Core, DAM, HAProxy, and RingAPI pods with thresholds of 50% for CPU utilization and 80% for memory utilization. The HPA test run finished successfully with no errors. Through the HPA tests, it was observed that four pods each for Core, DAM, and HAProxy, as well as three pods of RingAPI are required to have a successful run for 6,000 concurrent users. With this setup, the test was run for 10,000 concurrent users.
At 10,000 concurrent users, there were a few failures due to the RingAPI pod decreasing intermittently. Due to these failures, RingAPI pods were scaled to four. The test run with four pods for each of the containers was successful for 10,000 concurrent users.
Test results were analyzed in Prometheus and Grafana dashboards. The single-node CPU usage of a node reached an average of 80% in tests with 10,000 concurrent users. The saturation was checked by reducing the number of users to 5,000, 3,000, and 2,500 users. For these user load numbers, the average usage of a node CPU was around 70-80%. Based on the results, response times are optimal with a 2,500 user load.
Conclusion
This guidance shows the upper limit on a single-node K8s cluster AWS c5.9xlarge instance. For c5.9xlarge single-node rendering scenarios for DAM, WCM, and DX pages with portlets, the recommended load is 2,500 concurrent users.
The following table outlines the pod count and limits for each pod. After applying these values, the setup showed significantly improved responsiveness. These changes allowed the system to handle 2,500 concurrent users.
| Pod Name | Number of Pods | Container | Container Image | Container CPU Request and Limit | Container Memory Request and Limit |
|---|---|---|---|---|---|
| core | 4 | core | core | 5000 m | 8000 Mi |
| ringApi | 4 | ringApi | ringApi | 800 m | 512 Mi |
| haproxy | 4 | haproxy | haproxy | 700 m | 1024 Mi |
| digitalAssetManagement | 4 | digitalAssetManagement | digitalAssetManagement | 1000 m | 2048 Mi |
| persistence-connection-pool | 2 | persistence-connection-pool | persistence-connection-pool | 500 m | 512 Mi |
| persistence-node | 2 | persistence-node | persistence-node | 1000 m | 2048 Mi |
Note
For more information on OS tuning, Web Server tuning, JSF best practices, and other performance tuning guidelines and recommendations for traditional deployments, refer to the Performance Tuning Guide for Traditional Deployments.
Recommendations
-
For an upper limit on one instance in AWS, start the Kubernetes cluster with a single node with at least a c5.9xlarge instance to support a load of 2,500 user for optimal response times. Currently, the default CPU and memory values in the Helm chart are the minimum values for DX to work.
-
To hold more authenticated users for testing purposes, increase the OpenLDAP pod values. Note that the deployment of the OpenLDAP container in a production environment is not supported. For more information, refer to Configure Applications - OpenLDAP configuration.
Recommended heap size configuration
To ensure optimal performance and stability of HCL DX on Kubernetes, it is essential for you to configure JVM heap memory and pod resource limits correctly. Refer to the following best practices in the JVM heap and pod resource guidelines for performance runs when tuning memory allocation.
