How to customize the error behavior when accessing WCM resources

Applies to

HCL Digital Experience v9.5 or higher

Introduction

This article describes the procedure to customize the default HTTP-404 and HTTP-403 error codes that might been noticed when using the WCM servlet. Depending on the scenario, you will receive a different error message. This article applies to the following scenarios:

  • Non-existent WCM URLs.

    For example: http://hostname/wps/wcm/non-existent.

    Opening this URL will result in a a default 404 error message such as:
    Error 404: java.io.FileNotFoundException: CWSRV0190E: File not found: /non-existent

  • A WCM URL containing a non-existent JSP file.

    For example: http://hostname/wps/wcm/webinterface/login/login2.jsp.

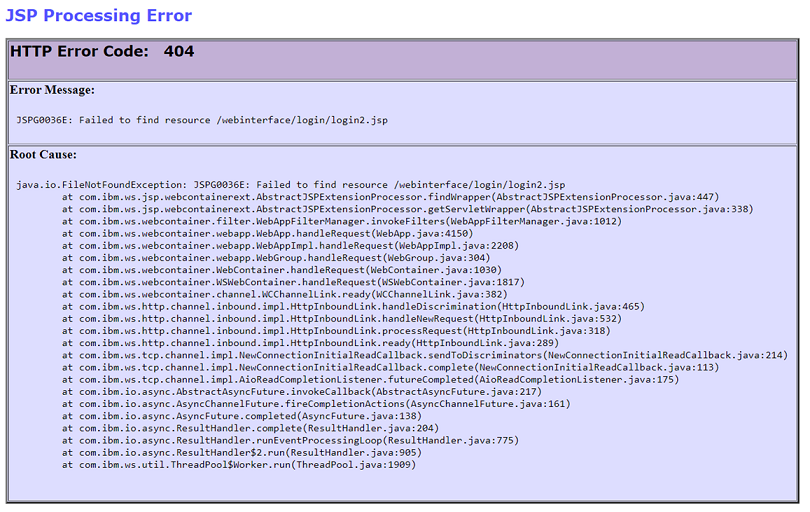

    Opening this URL will result in a default 404 error page specific for JSPs such as: HTTP-404 error code sample

  • The URL is valid, but the user does not have access to the item.

    For example: http://hostname/wps/wcm/myconnect/mylib/mysitearea/mycontent.

    Opening this URL will result in a default 403 error such as: Message: Error 403: CWSRV0295E: Error reported: 403

Instructions

  1. Open a command prompt or terminal session to access the HCL DX binaries.

  2. Create a temporary directory and ensure the current user has read and write permissions.

    Note

    The user can use an existing temporary directory (for example, /tmp) if they have the required permissions. Throughout this example, the /tmp and /tmp/wcm_expanded directories are used.

  3. Navigate to the <wp_profile_root>/bin directory.

  4. Use the wsadmin command to export the wcm.ear file. For example:

    wsadmin.sh(bat) -user <admin_user_id> -password <admin_password> -c '$AdminApp export wcm /tmp/wcm.ear'

  5. Use the EARExpander.(bat|sh) utility to expand the wcm.ear file into the temporary directory.

    ./EARExpander.sh -ear /tmp/wcm.ear -operationDir /tmp/wcm_expanded/ -operation expand

  6. Navigate to the expanded directory and locate the web.xml file under /tmp/wcm_expanded/ilwwcm.war/WEB-INF/.

  7. Backup the web.xml file.

  8. Open the web.xml file in a text editor and locate the following entry:

    <mime-mapping id="MimeMapping_1088994409133">
<extension>zip</extension>
<mime-type>application/x-gzip</mime-type>
</mime-mapping>

  9. Add the following entries right below </mime-mapping> then save the web.xml file. For example:

    <mime-mapping id="MimeMapping_1088994409133">
<extension>zip</extension>
<mime-type>application/x-gzip</mime-type>
</mime-mapping>

<error-page>
<error-code>404</error-code>
<location>/html/custom_errors/error404.html</location>
</error-page>

<error-page>
<error-code>403</error-code>
<location>/html/custom_errors/error403.html</location>
</error-page>

  10. In the /tmp/wcm_expanded/ilwwcm.war/ directory, create the nested directory structure: html/custom_errors/.

  11. Create a new file named error404.html in the html/custom_errors/ directory with the following code:

    <html>
  <p>This is a custom 404 error page!</p>
  <br>Sorry, I could not find this item for you!
</html>

  12. Create a new file named error403.html in the same directory with the following code:

    <html>
<p>This is a custom 403 error page!</p>
<br>You have no access to this item!
</html>

  13. Rename the copy of the wcm.ear file in the /tmp directory that was previously exported to wcm.bak.

  14. Use the EARExpander.(bat|sh) utility to collapse the changes made back into a new wcm.ear file:

    ./EARExpander.sh -ear /tmp/wcm.ear -operationDir /tmp/wcm_expanded/ -operation collapse

  15. Use the following wsadmin command to update the wcm.ear file:

    ./wsadmin.sh -user <admin_user_id> -password <admin_password> -c '$AdminApp update wcm app {-operation update -contents /tmp/wcm.ear}'

  16. If HCL DX runs on a cluster, open the IBM Integrated Solutions Console (WAS admin console) and perform a full resynchronization with all nodes.
