How to implement SAML in HCL DX

Applies to

HCL Digital Experience v8.5 and higher

Introduction

Security Assertion Markup Language (SAML) is an OASIS standard for representing and exchanging user identity, authentication, and attribute information. SAML is widely used to enable cross-vendor Single Sign-On (SSO).

HCL Digital Experience (DX) often runs in environments that include multiple integrated components. In these cases, SAML SSO is a common choice to provide a seamless user experience. Because HCL DX is based on WebSphere Application Server (WAS) middleware technology and uses the WAS security layer, SAML SSO is available in HCL DX through WAS.

This article describes the SAML 2.0 standard, the SAML SSO capabilities available in WAS, and the steps to implement it for HCL DX with a generic identity provider (IdP).

SAML 2.0 standard

SAML 2.0 specifies a Web Browser SSO profile involving three actors:

Identity provider (IdP)
Service provider (SP)
Principal (user) with an HTTP user agent

The SP supports four bindings, and the IdP supports three. This results in 12 possible deployment scenarios, which fall into two categories:

IdP-initiated SSO
SP-initiated SSO

IdP-initiated SSO

To access a protected resource on the SP, the user must first authenticate with the IdP. The IdP then redirects the user to the SP, including a SAMLResponse with the user’s authentication information.

Because the SP trusts the IdP, it can validate the SAMLResponse and create an authenticated session without requiring additional credentials.

The IdP can also send the user directly to the SP without requiring a manual choice in these cases:

The IdP manages a single SP, so the redirect target is clear.
The authentication request to the IdP includes a query string that specifies the SP. The IdP uses this parameter to define the redirect target.

SP-initiated SSO

In this scenario, the SP is the first component contacted by the user.

If the user is not authenticated, the SP redirects the user to the IdP. The redirect includes a SAMLRequest that provides the IdP with the information required to authenticate the user and redirect them back to the SP.

The key difference between IdP-initiated and SP-initiated SSO is the presence of the SAMLRequest when the IdP is contacted. The second part of the flow—from IdP to SP—is the same in both scenarios.

WebSphere Application Server limitation

With WebSphere Application Server v8.5.5.x, WAS only supports IdP-initiated SSO. It cannot generate the required SAMLRequest defined by the SAML standard for SP-initiated SSO.

To avoid requiring users to select the correct link for redirection to WAS, use this approach:

The user requests a WAS-secured resource.
A SAML TAI is in place. If the user is not already authenticated, it redirects the user to the IdP URL. This URL should include a keyword as a URL parameter that the IdP can use after login.
The browser generates an additional cookie, WasSamlSpReqURL, which identifies the originally requested resource.
The IdP authenticates the user and sends them back to WAS. The redirect goes to a SAML application deployed on WAS called the Assertion Consumer Service (ACS).
The ACS validates and processes the SAMLResponse from the IdP. It creates the authenticated session on WAS and issues the LTPA cookie for the user.
If the WasSamlSpReqURL cookie is available, the user is redirected to the originally requested resource as an authenticated user. Otherwise, the user is redirected to the URL configured in the TAI.

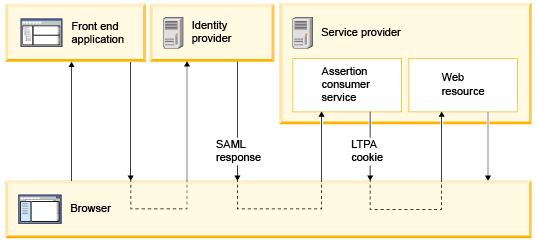

WAS IdP authentication flow diagram

IdP-initiated configuration

Note

Most of the steps described in this document are included in WAS v8.5 InfoCenter, but here they are collected together in a single document, specific to HCL DX.

The sample configuration provided is from a real-world experience with an F5 as IdP and a single-server installation of HCL DX.

Instructions

Use the following instructions to implement SAML in HCL DX.

Install the SAML ACS application

A new enterprise application must be installed. In the WAS Admin Console, follow these steps:

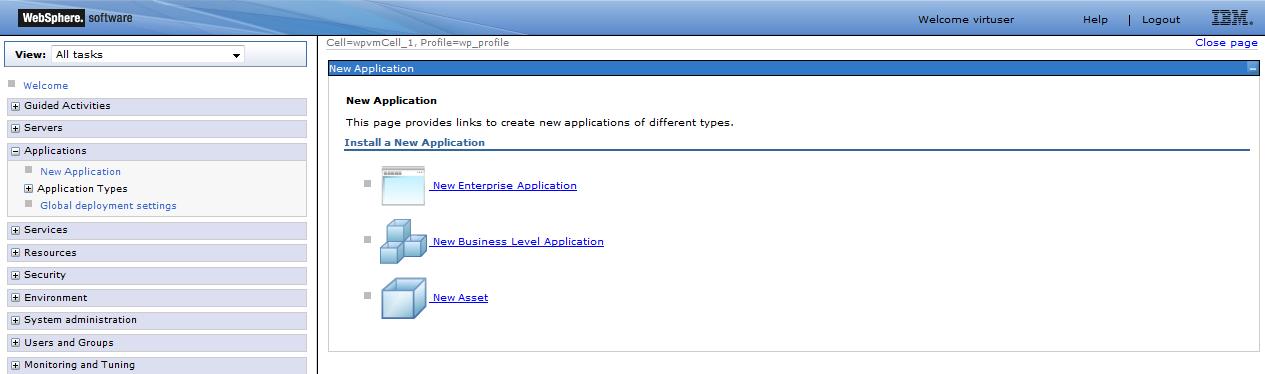

Open Applications > New Application > New Enterprise Application.

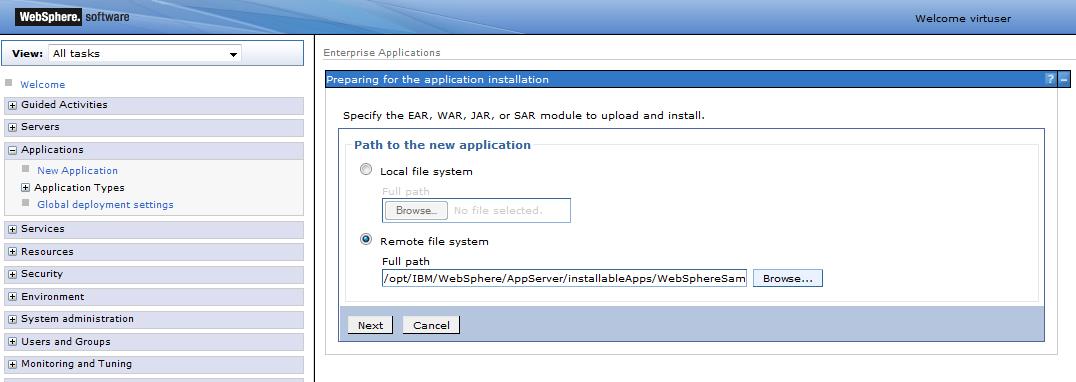

Select Remote file system and choose the EAR file /opt/IBM/WebSphere/AppServer/installableApps/WebSphereSamlSP.ear.
Click Next three times.
Click Finish.
Save the configuration.

Configure SAML TAI

Log on to the WebSphere Application Server administrative console.

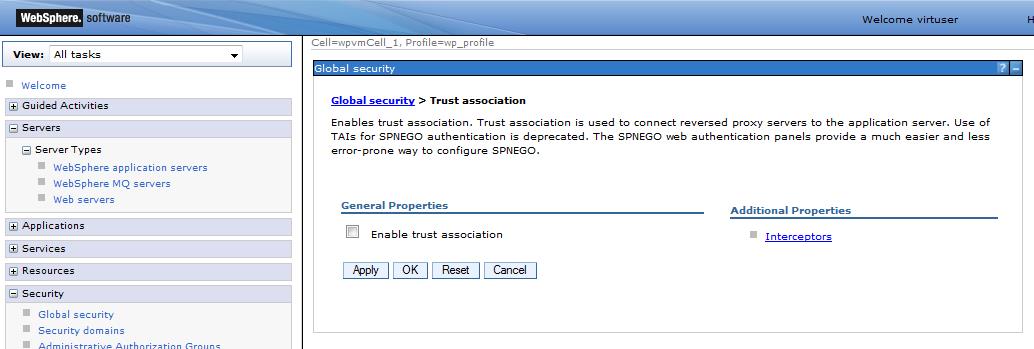

Click Security > Global security > Web and SIP security > Trust association.
Under the General Properties heading, make sure the Enable trust association check box is not selected.
Click Interceptors.
Click New and enter com.ibm.ws.security.web.saml.ACSTrustAssociationInterceptor in the Interceptor class name field.

Configure Custom Properties — Under Custom properties, fill in the following information:

sso_1.sp.acsUrl = https://<hostname>:<sslport>/samlsps/wps/
sso_1.sp.filter = request-url%=/wps/myportal
sso_1.sp.idMap = localRealm

Click OK.
Go back to Security > Global security and click Custom properties.
Look for com.ibm.websphere.security.DeferTAItoSSO and replace the existing value with com.ibm.ws.security.web.saml.ACSTrustAssociationInterceptor.

Note

The property com.ibm.websphere.security.DeferTAItoSSO was previously used in the default configuration of all installed servers.
Now it is only used as part of the SAML configuration.
Click OK.
Restart the WebSphere Application Server.

Add IdP

To use the WebSphere Application Server SAML service provider for single sign-on with an identity provider, you need to add the identity provider as a partner. From the IdP, export the metadata in XML format, then follow this procedure:

Start the WebSphere Application Server.
Start the wsadmin command-line utility from the <AppServer_root>/bin directory by entering the following command:
```
/opt/IBM/WebSphere/AppServer/bin/wsadmin.sh -lang jython
```
At the wsadmin prompt, enter:
```
AdminTask.importSAMLIdpMetadata('-idpMetadataFileName <IdPMetaDataFile> -idpId 1 -ssoId 1 -signingCertAlias <idpAlias>')
```
- <IdPMetaDataFile> is the full path name of the IdP metadata file.
- <idpAlias> is any alias name you specify for the imported certificate.
Save the configuration using the following command:
```
AdminConfig.save()
```
Exit the wsadmin command utility using the following command:
```
quit
```
Restart the WebSphere Application Server.

Add IdP realms as trusted realms

For each identity provider (IdP) used with your WebSphere Application Server service provider, you must grant inbound trust to all realms that the IdP uses.

Log on to the WebSphere Application Server administrative console.
Click Security > Global security.
Under User account repository, click Configure.
Click Trusted authentication realms – inbound.
Click Add External Realm.
Enter the external realm name.
Click OK, and then click Save to update the master configuration.

Export data for IdP

Each identity provider (IdP) used with your WebSphere Application Server service provider must be configured to add the service provider as a single sign-on (SSO) partner. The procedure for adding a service provider partner to an IdP depends on the specific IdP. For instructions, see the documentation for your IdP.

If your IdP supports using a metadata file to add the service provider as a federation partner, you can use the wsadmin command-line utility to export the service provider metadata.

Start the WebSphere Application Server.
Start the wsadmin command-line utility from the <AppServer_root>/bin directory by entering:
```
/opt/IBM/WebSphere/AppServer/bin/wsadmin.sh -lang jython
```
At the wsadmin prompt, enter:
```
AdminTask.exportSAMLSpMetadata('-spMetadataFileName <SpMetaDataFile> -ssoId 1')
```
- <SpMetaDataFile> is the full path name of the SP metadata file generated by the script.
- This file must be imported into your IdP.

Configure the WAS security context

Log on to the WebSphere Application Server administrative console.
Click Security > Global security > Web and SIP security > Trust association > com.ibm.ws.security.web.saml.ACSTrustAssociationInterceptor.

Add the required custom properties to have the following data in place (some of them might already be there).

Name	Value
`sso_1.sp.acsUrl`	`https://<hostname>:<sslport>/samlsps/wps/`
`sso_1.sp.idMap`	`localRealm`
`sso_1.idp_1.certAlias`	`<idpAlias>`
`sso_1.idp_1.entityID`	`https://<idphostname>/<idp required path>`
`sso_1.idp_1.singleSignOnUrl`	`https://<idphostname>/saml/idp/profile/redirectorpost/sso`
`sso_1.sp.login.error.page`	Use the same value as `sso_1.idp_1.entityID`
`sso_1.sp.filter`	`request-url%=/wps/myportal`

The IdP passes the user ID to be authenticated in the SAML request. This ID must match one of the user ID values available for standard HCL DX login.

Log on to the WebSphere Application Server administrative console.
Click Security > Global security.
Under User account repository, click Configure.
Click the LDAP where users are stored.

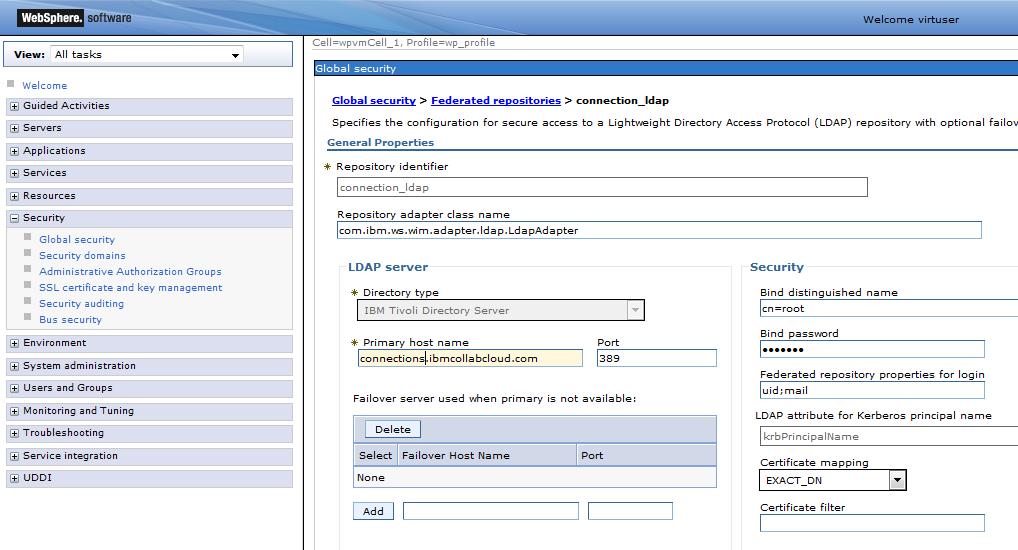

In Federated repository properties for login, check the attributes that are used for login. Add additional attributes if needed (separate multiple attributes with a semicolon).

For example, if the IdP passes the email address as the user ID, set the following value:
```
Federated repository properties for login = uid;mail
```
Click OK.
Save the configuration.

Enable TAI

The last step is to enable TAI. After this step, the only way to authenticate to HCL DX is through the IdP, and it will work only for users who have a matching email in the HCL Portal User Registry.

Log in to the WebSphere Application Server administrative console.
Click Security > Global security > Web and SIP security > Trust association.
Under the General Properties heading, select the Enable trust association check box.
Click OK.
Save the configuration.
Restart the WebSphere Application Server.
