Database Analysis

The Digital Asset Management (DAM) Database Analysis feature (available from CF233 onward) provides you metrics and insights into your DAM deployment for monitoring performance, storage utilization, media asset distribution, broken collection and media assets.

Note

Only users with Administrator permissions can access these metrics through the DAM user interface or REST API.

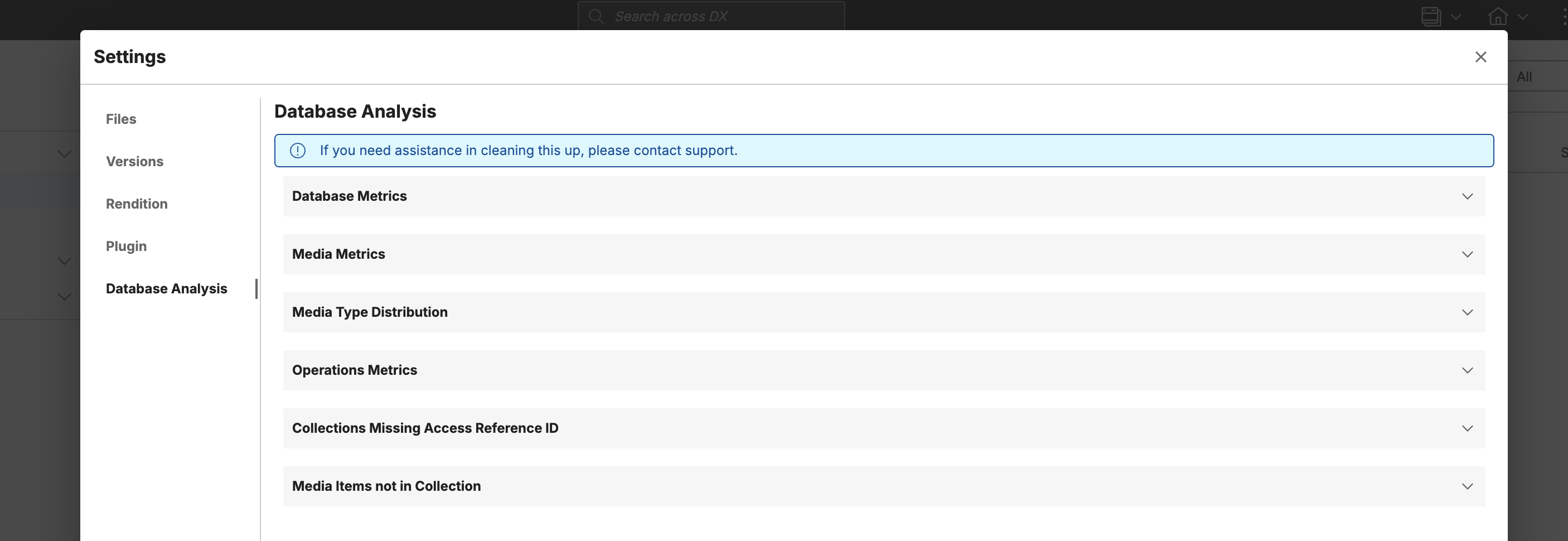

Accessing Database Analysis

1. Log in to HCL DX Portal as a DAM administrator.
2. Go to the Digital Asset Management application.
3. Click Settings.
4. Select Database Analysis from the administration options.
5. Expand your desired category to view specific metrics.

Database Analysis metrics

Database Analysis provides comprehensive visibility into your DAM deployment through multiple metric categories. Each metric category offers specific insights that help you monitor system health, optimize performance, and plan for capacity requirements.

Note

• Use specific type parameters to retrieve only the metrics you need for faster response times.
• The system calculates metrics in real-time. For large deployments, initial metric loading may take a few seconds.

The feature organizes metrics into distinct categories, each serving a specific monitoring purpose:

Metric Category	Description
Database Metrics	Provides core database information such as size, schema, and version
Media Metrics	Provides aggregate data on content distribution, storage consumption, and organizational structure within DAM
Media Type Distribution	Provides a categorical breakdown of media assets by file type, including the specific count and percentage for each format relative to the total library
Operations Metrics	Provides a status breakdown of all DAM operations
Collections Missing Access Reference ID	Provides details on collections that do not have proper access control configuration
Media Items not in Collection	Provides metrics on media items that are not associated with any collection

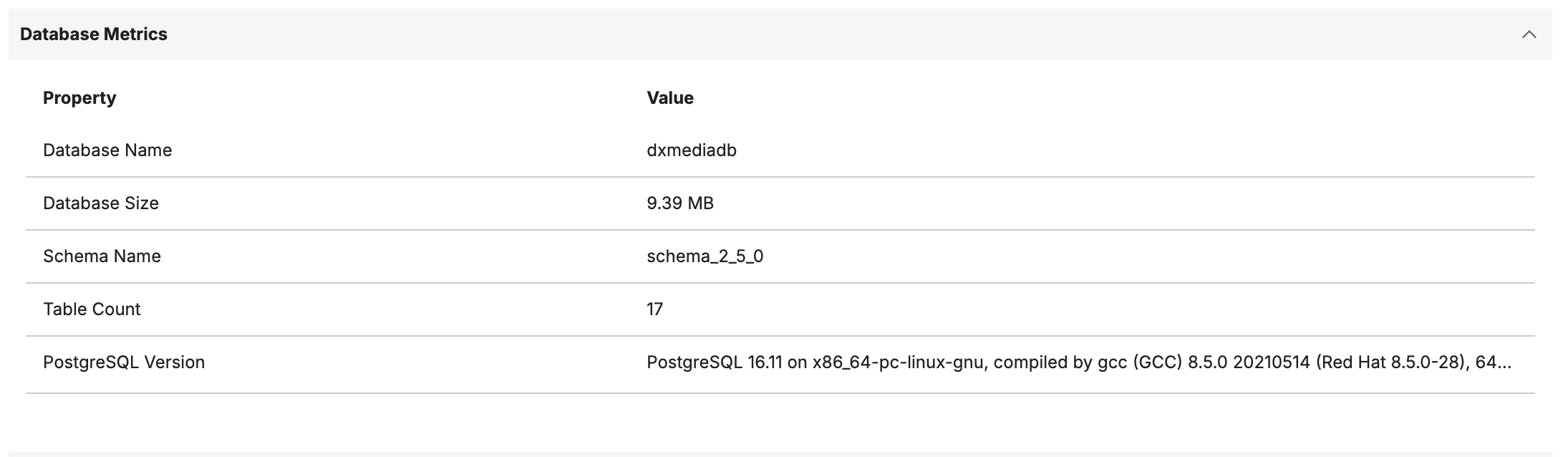

Database Metrics

Database Metrics provides details about the underlying PostgreSQL database that powers your DAM deployment. These metrics help you understand database size, structure, and version information.

The following table describes the available database metrics:

Metric	Description
Database Name	Name of the PostgreSQL database used by DAM
Database Size	Total size of the database in MB
Schema Name	Current schema name being used by DAM (typically schema_X_X_X)
Table Count	Total number of tables in the current schema
PostgreSQL Version	Current version of the PostgreSQL database server

REST API endpoint:

GET /dx/api/dam/v1/database-analysis?type=Database

Note

Database size is calculated in bytes and automatically converted to MB for easier interpretation. For very large databases, the size may be displayed in GB.

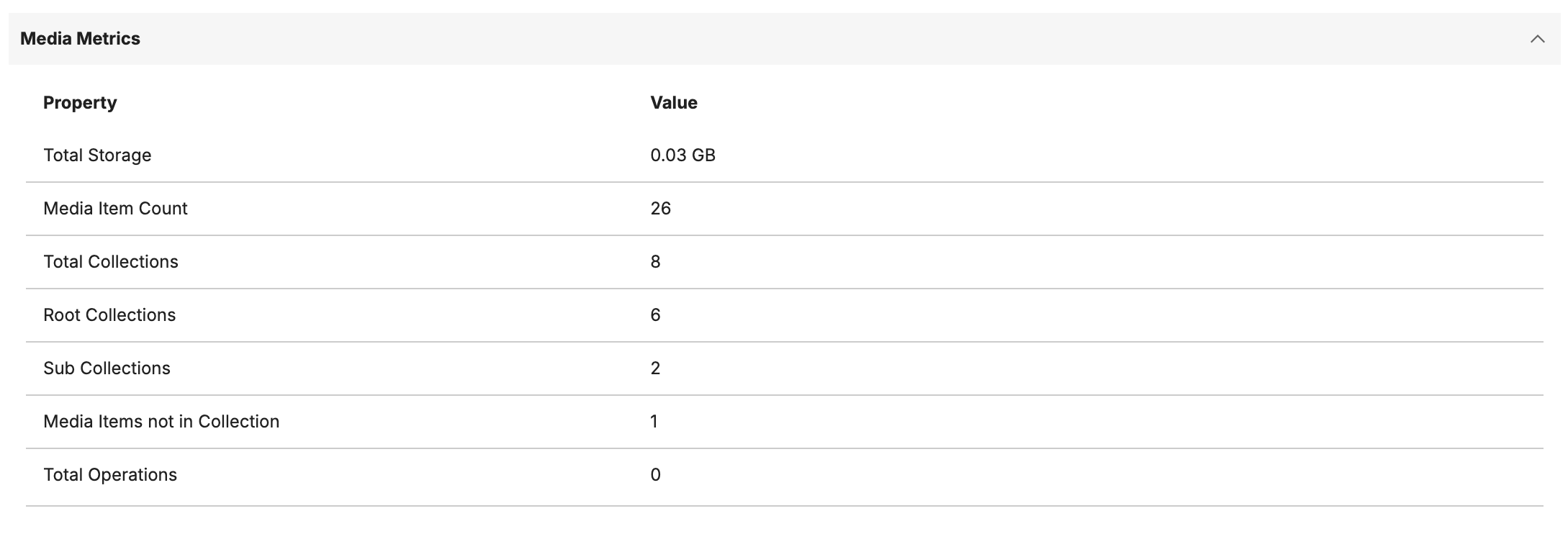

Media Metrics

Media Metrics provides detailed statistics about your media assets, collections, and storage utilization. These metrics help you understand content distribution, storage consumption, and organizational structure within DAM.

The following table describes the available media metrics:

Metric	Description
Total Storage	Total storage consumed by all media assets in GB
Media Item Count	Total number of media items across all collections
Total Collections	Total number of collections (root and sub-collections)
Root Collections	Number of top-level collections
Sub Collections	Number of nested collections
Media Items Not in Collection	Number of media items not associated with any collection
Total Operations	Total number of incomplete operations
Largest Collection Size	Size of the largest collection in bytes
Smallest Collection Size	Size of the smallest collection in bytes

REST API endpoint:

GET /dx/api/dam/v1/database-analysis?type=Media

Media Type Distribution

Media Type Distribution provides a breakdown of your media assets by type, showing both absolute counts and percentages. This information helps you understand content composition and plan for type-specific optimization strategies.

Percentage calculation

Percentage = (Type Count / Total Media Items) × 100

REST API endpoint:

GET /dx/api/dam/v1/database-analysis?type=MediaTypes

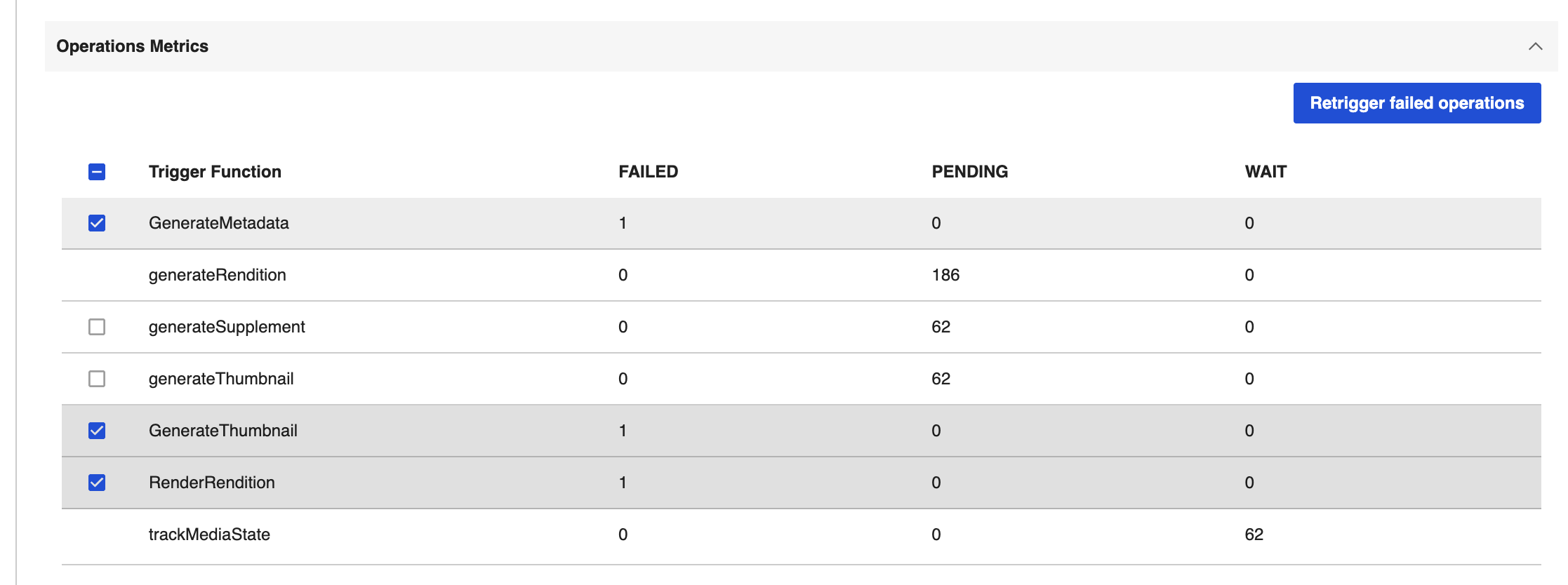

Operations Metrics

The Operations Metrics show the status of DAM operations by trigger function. Use this metric to identify operation patterns and troubleshoot issues.

Select one or more rows with failed operations and click Retrigger Failed Operation to re-execute them.

Note

For performance analysis, focus on recent operation patterns rather than historical totals.

REST API endpoint:

GET /dx/api/dam/v1/database-analysis?type=Operations

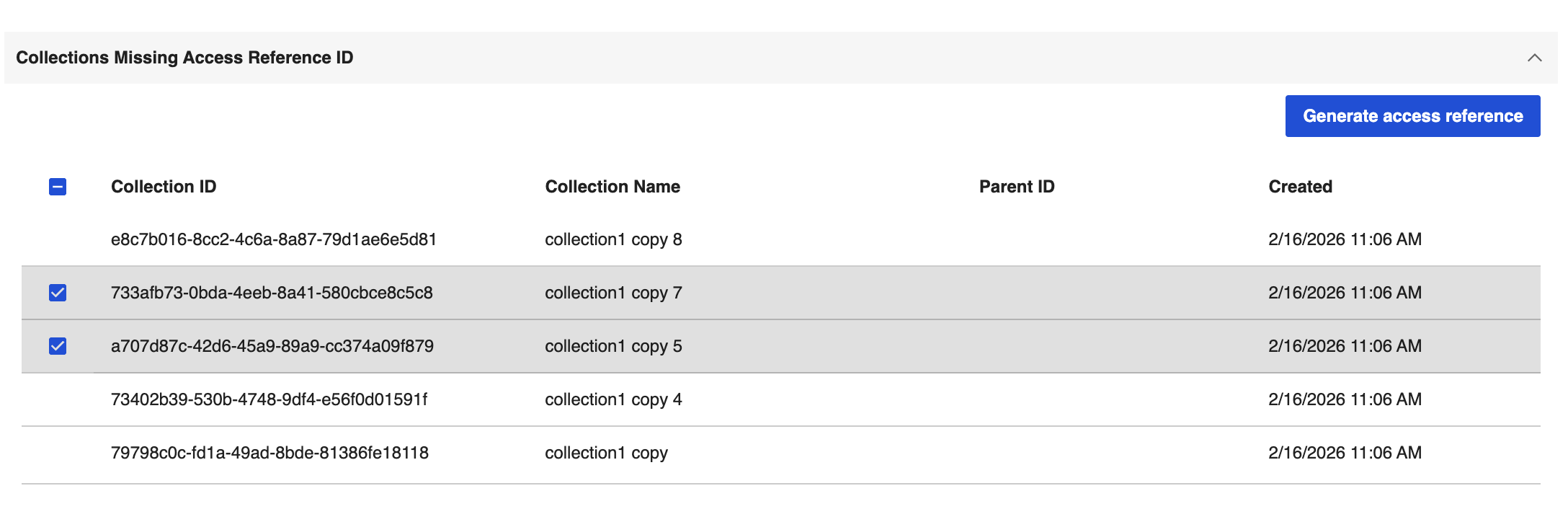

Collections Missing Access Reference ID

The Collections Missing Access Reference ID metric identifies collections that do not have proper access control configuration. Collections without access reference IDs may have inconsistent permission inheritance or access control issues that need administrative attention.

Select one or more collections and click Generate Access Reference to re-generate access reference for them.

Note

Collections missing access reference IDs should be addressed promptly to ensure proper access control functionality across your DAM deployment.

For each collection missing an access reference, the following information is displayed:

Field	Description
Collection ID	Unique identifier of the collection
Collection Name	Display name of the collection
Created	Date and time when the collection was created
Parent ID	ID of the parent collection (null for root collections)

Resolving missing access reference IDs

1. Review the identified collections in the Database Analysis section.
2. Use the registerResource Config API to set proper access references.
3. Verify permission inheritance is working correctly after updating.

REST API endpoint:

GET /dx/api/dam/v1/database-analysis?type=CollectionsMissingAccessReference

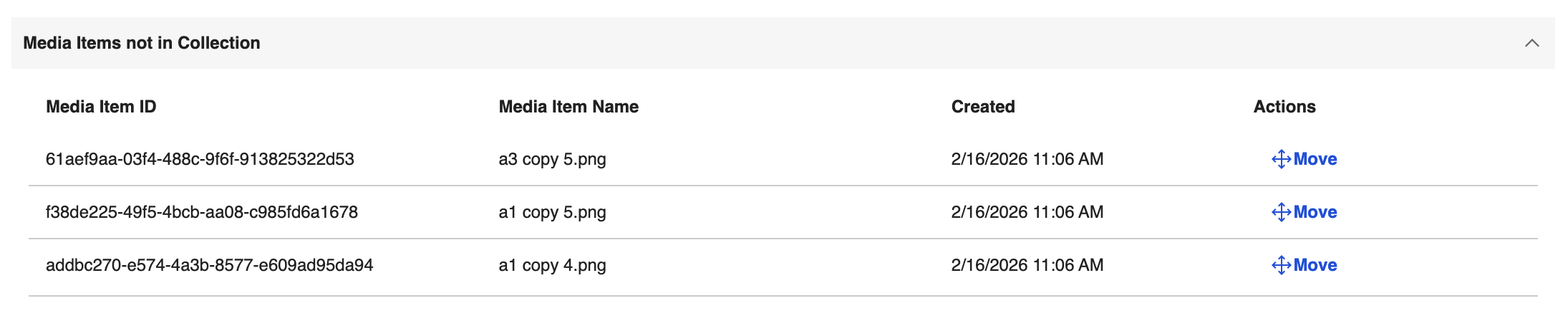

Media Items not in Collection

The Media Items not in Collection metric lists orphaned media assets that are not associated with any collection. While these items exist in the DAM system, they are not organized within the collection hierarchy, making them difficult to discover and manage.

Click Move on any orphaned media item, select your desired collection, and confirm to organize it.

For each orphan media item, the following information is displayed:

Field	Description
Media ID	Unique identifier of the media item
Name	File name of the media item
Created	Date and time when the media item was uploaded

Note

• Consider organizing orphaned media items into appropriate collections for better content management.
• Moved media items retain all metadata and versions associated with them.

REST API endpoints

• GET /dx/api/dam/v1/database-analysis

  Query parameter:

  • type (Required): The value must be one of the Database, Media, Operations, MediaTypes, CollectionsMissingAccessReference and OrphanMediaItems.

• POST /dx/api/dam/v1/database-analysis

  Request payload schema:

  • type (required): Healing operation type.
  • targets (required): Array of IDs or trigger-function names, depending on type.
  • targetCollectionId (optional): Destination collection ID (required only for MoveOrphanMedia).

  Supported type values with sample payloads:

  1. RetriggerFailedOperations: Retriggers failed operations for the listed trigger functions.

     {
         "type": "RetriggerFailedOperations",
         "targets": ["generateThumbnail", "generateMetaData"]
     }


  2. RegenerateMissingAccessReference: Regenerates access reference IDs for the listed collection IDs.

     {
         "type": "RegenerateMissingAccessReference",
         "targets": ["c8ce7a84-c3d8-486a-8ae2-57cbf6b11111", "4b57247d-a55b-4458-85c9-09ecf4a32222"]
     }


  3. MoveOrphanMedia: Moves the specified orphan media item to the destination collection, targets must contain exactly one media ID for this type.

     {
         "type": "MoveOrphanMedia",
         "targets": ["96cb4af4-4478-43a3-a69c-72c4f5016f6f"],
         "targetCollectionId": "f2d0f9ed-19f0-4f77-8b9e-e4c4c7f73333"
     }
