Default and Override stylesheets in Presentation Designer

In Presentation Designer, stylesheets play a crucial role in defining the appearance and behavior of elements within a presentation. There are two types of stylesheets that work together to ensure flexibility and consistency in design: the Default stylesheet and the Override stylesheet. These stylesheets support the handling of type selectors and class selectors.

Default stylesheet

The Default stylesheet provides a foundational set of styles that are automatically applied to various elements, ensuring a consistent look and feel across the presentation. Default stylesheet support type selectors and class selectors. The default style options in Presentation Designer work as follows:

  1. From the initial render of the Presentation Designer, a default style is loaded in the head of the HTML:

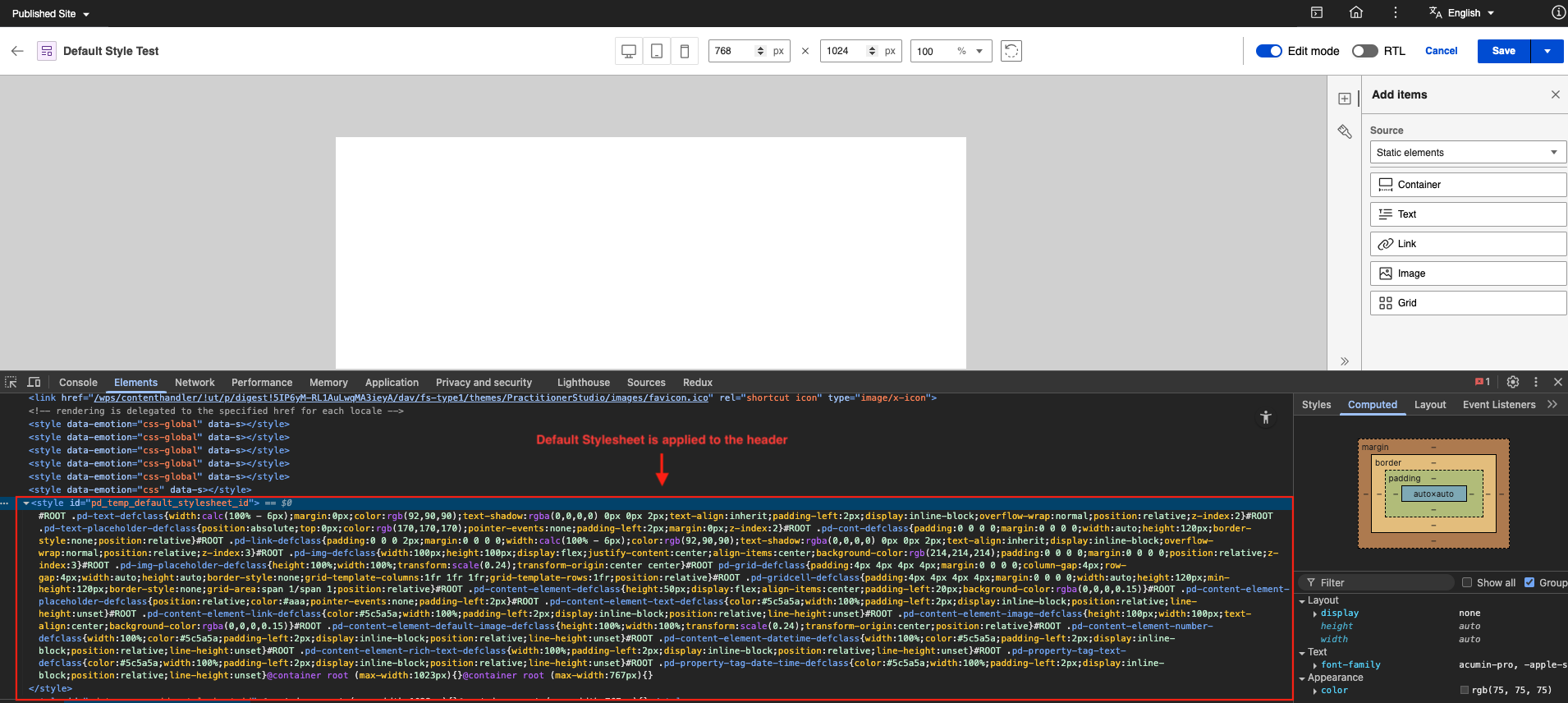

    • HTML head for default stylesheet:

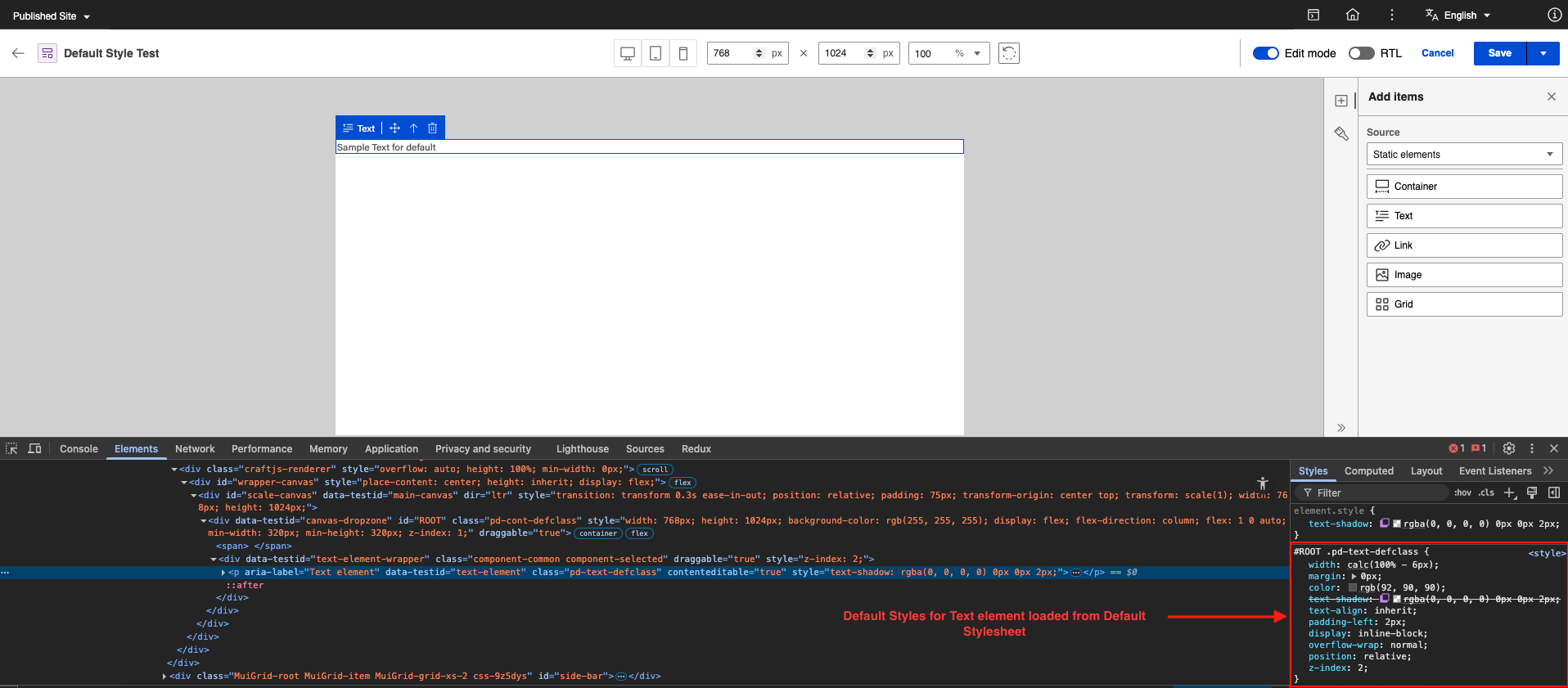

    • Element styles for the default stylesheet:

  2. Each element has a corresponding classname for the default style.

    Element Default Classname CSS Values
    Container element pd-cont-defclass padding: 0 0 0 0;
    margin: 0 0 0 0;
    width: auto;
    height: 120px;
    border-style: none;
    position: relative;
    Text element pd-text-defclass width: calc(100% - 6px);
    margin: 0px;
    color: rgb(92, 90, 90);
    text-shadow: rgba(0, 0, 0, 0) 0px 0px 2px;
    text-align: inherit;
    padding-left: 2px;
    display: inline-block;
    overflow-wrap: normal;
    position: relative;
    z-index: 2;
    Text placeholder pd-text-placeholder-defclass position: absolute;
    top: 0px;
    color: rgb(170, 170, 170);
    pointer-events: none;
    padding-left: 2px;
    margin: 0px;
    z-index: 2;
    Link element pd-link-defclass padding: 0 0 0 2px;
    margin: 0 0 0 0;
    width: calc(100% - 6px);
    color: rgb(92, 90, 90);
    text-shadow: rgba(0, 0, 0, 0) 0px 0px 2px;
    text-align: inherit;
    display: inline-block;
    overflow-wrap: normal;
    position: relative;
    z-index: 3;
    Image element pd-img-defclass width: 100px;
    height: 100px;
    display: flex;
    justify-content: center;
    align-items: center;
    background-color: rgb(214, 214, 214);
    padding: 0 0 0 0;
    margin: 0 0 0 0;
    position: relative;
    z-index: 3;
    Broken image placeholder pd-img-placeholder-defclass height: 100%;
    width: 100%;
    transform: scale(0.24);
    transform-origin: center center;
    Grid element pd-grid-defclass display: grid;
    padding: 4px 4px 4px 4px;
    margin: 0 0 0 0;
    column-gap: 4px;
    row-gap: 4px;
    width: auto;
    height: auto;
    border-style: none;
    grid-template-columns: 1fr 1fr 1fr;
    grid-template-rows: 1fr;
    position: relative;
    Grid cell element pd-gridcell-defclass padding: 4px 4px 4px 4px;
    margin: 0 0 0 0;
    width: auto;
    height: auto;
    min-height: 120px;
    border-style: none;
    grid-area: span 1 / span 1;
    position: relative;
    Content element pd-content-element-defclass height: 50px;
    display: flex;
    align-items: center;
    padding-left: 20px;
    background-color: rgba(0, 0, 0, 0.15);
    Content element placeholder pd-content-element-placeholder-defclass position: relative;
    color: #aaa;
    pointer-events: none;
    padding-left: 2px;
    Content text element pd-content-element-text-defclass color: #5c5a5a;
    width: 100%;
    padding-left: 2px;
    display: inline-block;
    position: relative;
    line-height: unset;
    Content link element pd-content-element-link-defclass color: #5c5a5a;
    width: 100%;
    padding-left: 2px;
    display: inline-block;
    position: relative;
    line-height: unset;
    Content image element pd-content-element-image-defclass height: 100px;
    width: 100px;
    text-align: center;
    background-color: rgba(0, 0, 0, 0.15);
    Default image placeholder pd-content-element-default-image-defclass height: 100%;
    width: 100%;
    transform: scale(0.24);
    transform-origin: center;
    position: relative;
    Content number element pd-content-element-number-defclass width: 100%;
    color: #5c5a5a;
    padding-left: 2px;
    display: inline-block;
    position: relative;
    line-height: unset;
    Content datetime element pd-content-element-datetime-defclass width: 100%;
    color: #5c5a5a;
    padding-left: 2px;
    display: inline-block;
    position: relative;
    line-height: unset;
    Content rich text element pd-content-element-rich-text-defclass width: 100%;
    padding-left: 2px;
    display: inline-block;
    position: relative;
    line-height: unset;
    Property tag text element pd-property-tag-text-defclass color: #5c5a5a;
    width: 100%;
    padding-left: 2px;
    display: inline-block;
    position: relative;
    line-height: unset;
    Property tag datetime pd-property-tag-date-time-defclass color: #5c5a5a;
    width: 100%;
    padding-left: 2px;
    display: inline-block;
    position: relative;
    line-height: unset;

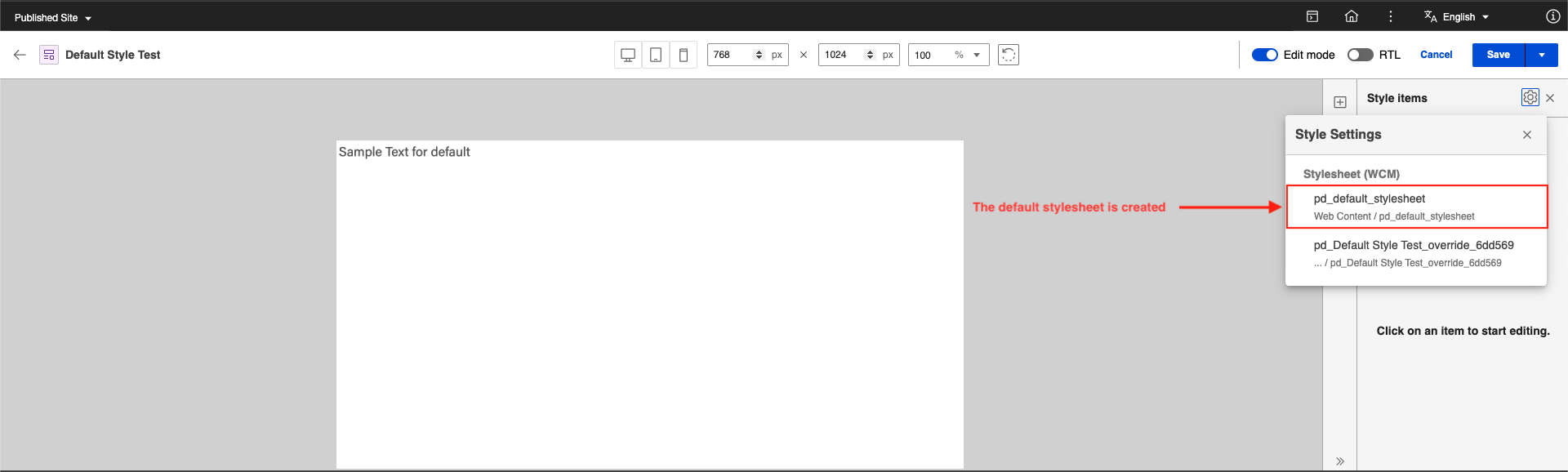

  3. After saving the Presentation Designer, it automatically creates a default stylesheet.

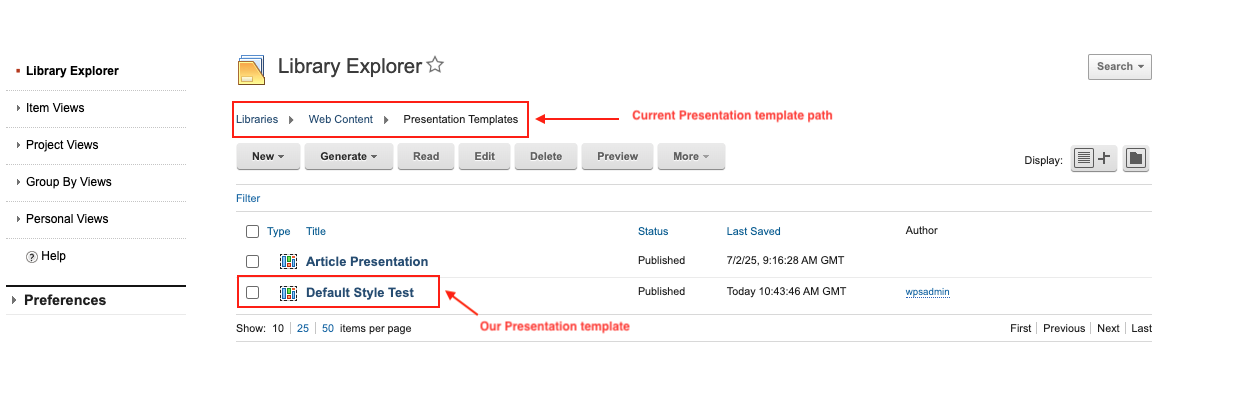

  4. The default style is found in the Presentation Designer libraries. Its location is determined based on the location of the presentation template:

    For example, the default style is located in the following path with the default style name pd_default_stylesheet:

  5. To validate the styles set in the default stylesheet:

    1. Select the file and click Edit.

    2. Click pd_default_stylesheet.css to download the file.

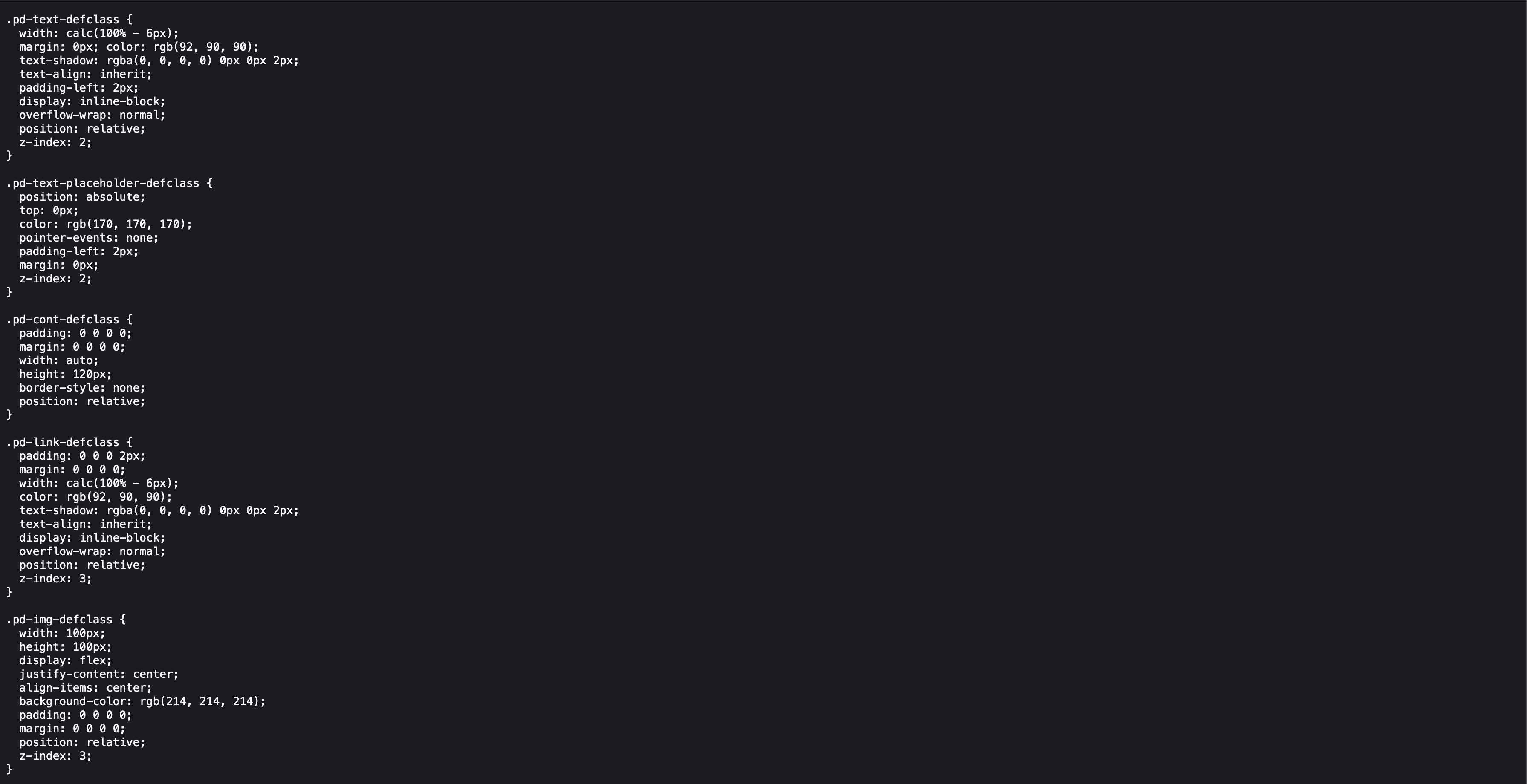

    3. Locate the downloaded file and open it. This contains the CSS data inside the default stylesheet.

Override stylesheet

The Override stylesheet allows users to customize styles for specific elements, enabling precise adjustments to meet unique design requirements. Together, the Default and Override stylesheets offer a powerful mechanism for managing presentation aesthetics effectively. The override style options in Presentation Designer work as follows:

  1. Override styles can be applied to different resolutions, and each resolution has its own style.

    • If the style is set for Desktop, it applies the change to all devices.
    • If the style is set for Tablet, it applies the change to tablets and mobile devices only.
    • If the style is set for Mobile, it applies the change to mobile devices only.
    • Changes specific to one device will not affect others, as each device already has a defined style value.

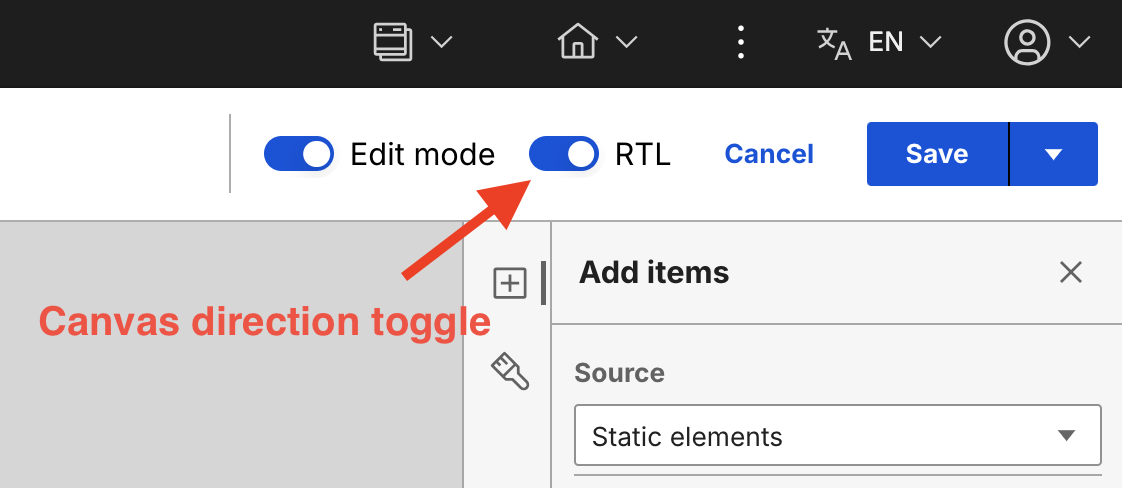

  2. Override styles support direction-specific styling for bidirectional text layouts through the Canvas direction toggle in the Presentation Designer header. This allows you to create distinct styles for RTL (Right-to-Left) and LTR (Left-to-Right) text directions.

    Override classes follow the naming convention pd-override-[Element]-[(6)uuid], where [Element] is the element type and [(6)uuid] is a 6-character unique identifier:

    • For LTR class names, use pd-override-[Element]-[(6)uuid] (for example, .pd-override-Text-d00c2b)

    • For RTL class names, use pd-override-[Element]-[(6)uuid]:dir(rtl) (for example, .pd-override-Text-d00c2b:dir(rtl))

    • When the RTL toggle is enabled and style changes are made, the override class includes the :dir(rtl) pseudo-class selector. These styles only apply when the page or element is in RTL mode.

    • When the RTL toggle is disabled (LTR mode) and style changes are made, the override class is created without the direction indicator. These base styles apply to both LTR and RTL by default.

    • RTL-specific styles (with :dir(rtl)) override the base styles only when the document is in RTL mode. If no RTL-specific styles are defined, the base LTR styles apply to both directions. Both sets of styles coexist in the same override stylesheet, allowing the same element to have different appearances based on the document's text direction.

  3. Override classes are applied to elements when styles are edited. The following example demonstrates how override classes are created and applied:

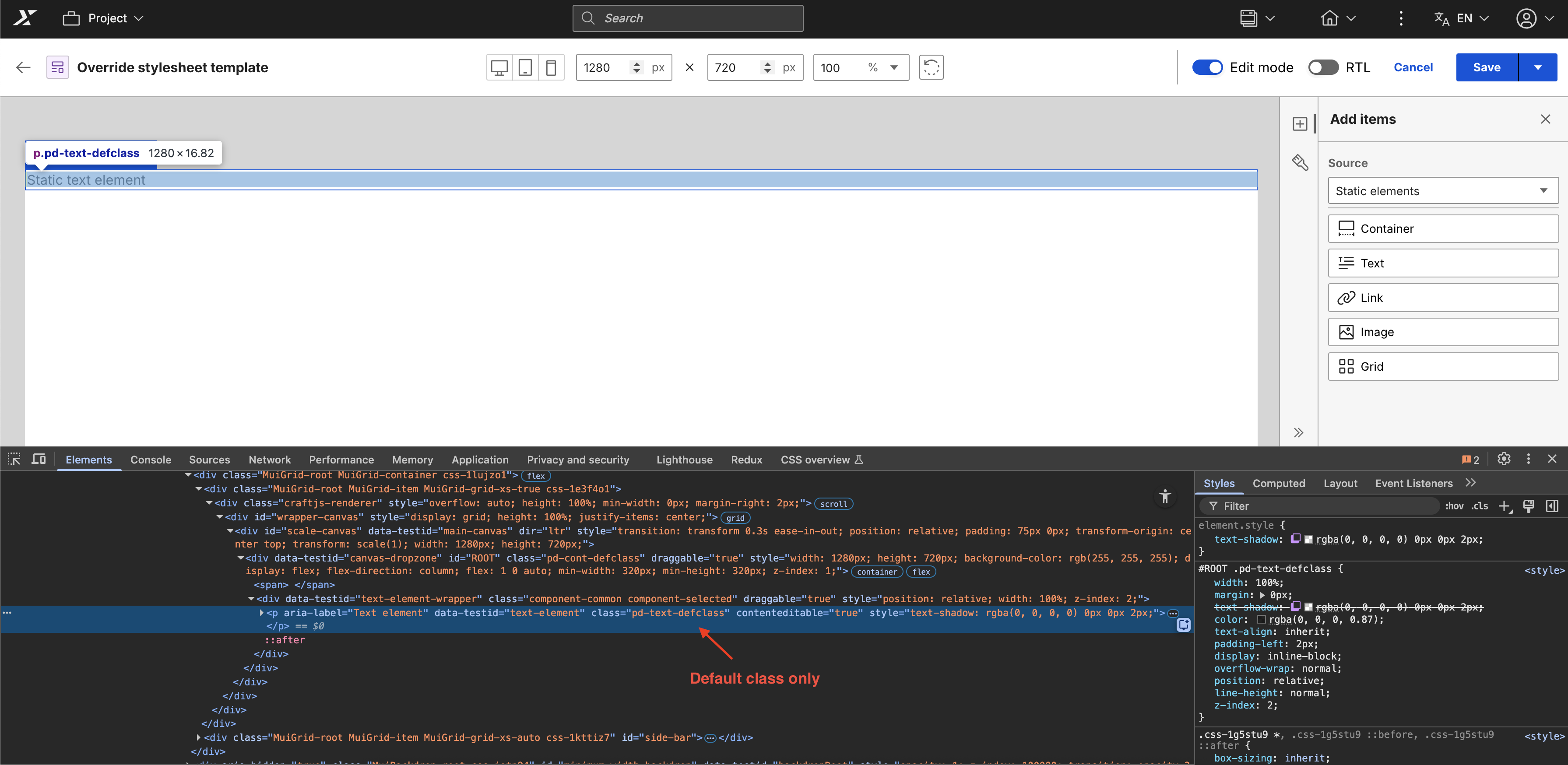

    1. When you first drop an element on the canvas, only the default class is applied. No override class exists yet:

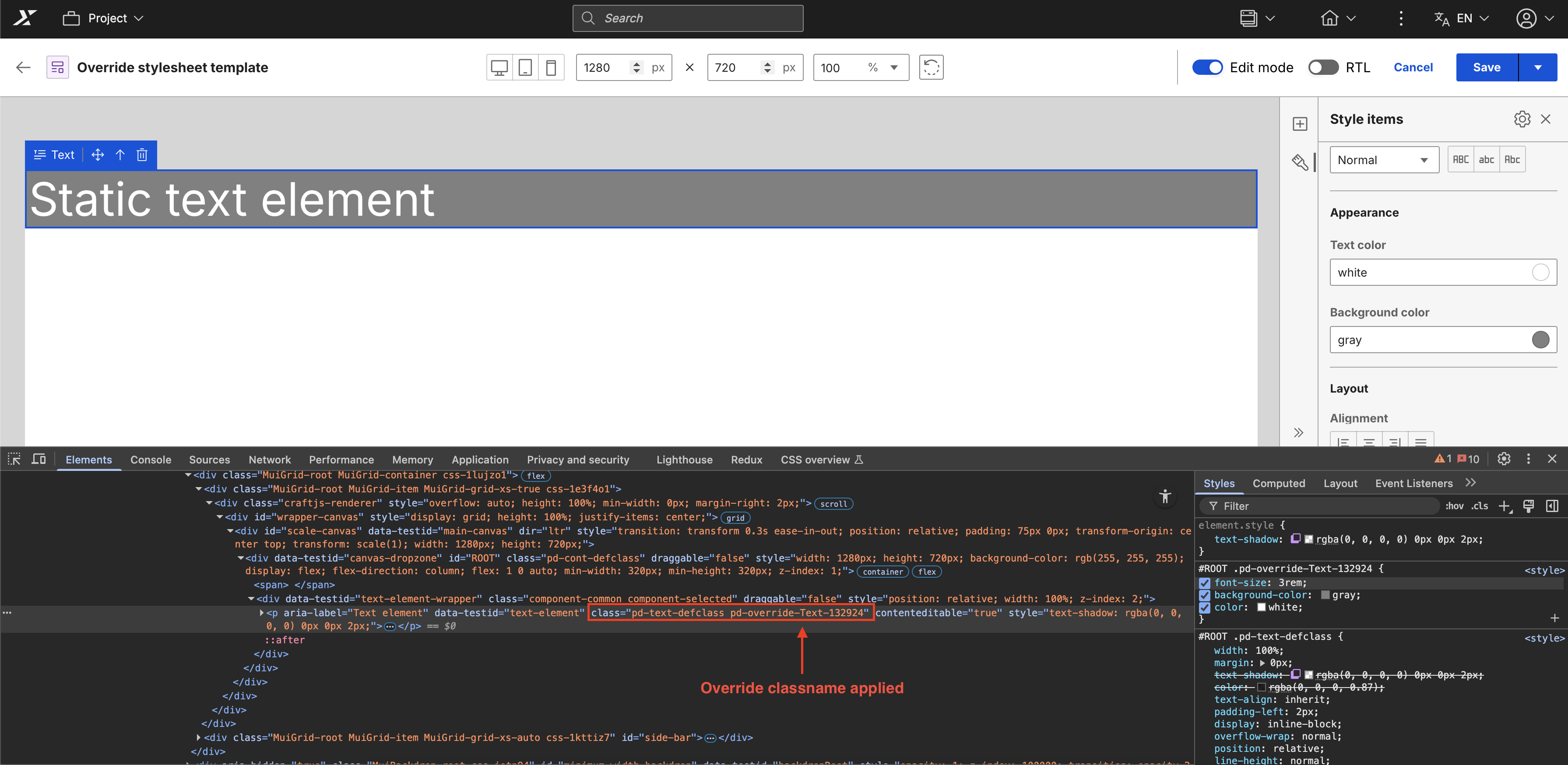

    2. After adding style changes to the element (for example, changing font size and background color), you can now see that an override class has been added to the element:

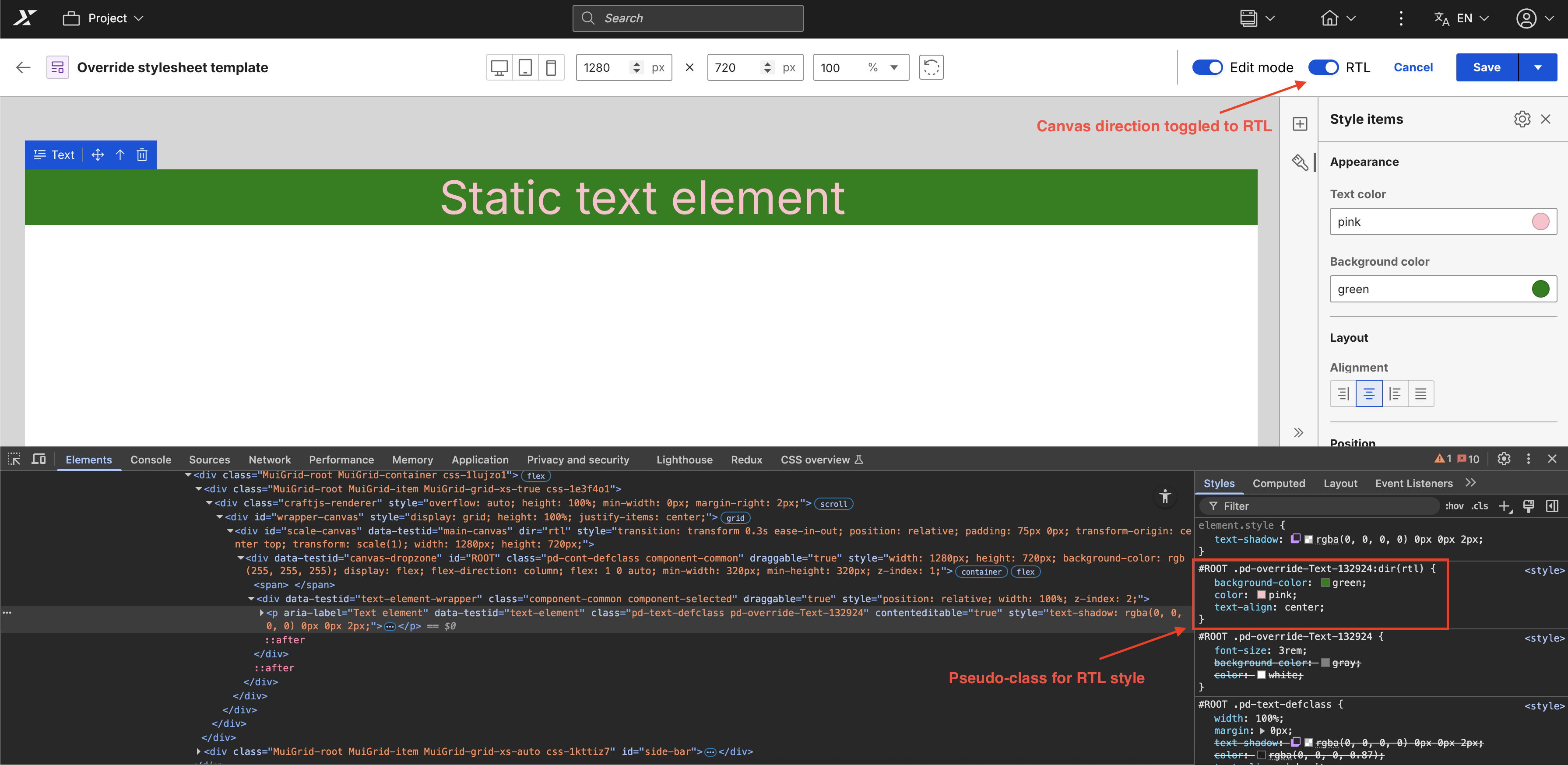

    3. You can apply independent styling for RTL by switching to RTL mode using the Canvas direction toggle and adding different style changes (for example, changing background color and text alignment). After applying these changes, the same override class is used but with the :dir(rtl) pseudo-class selector added to target RTL mode:

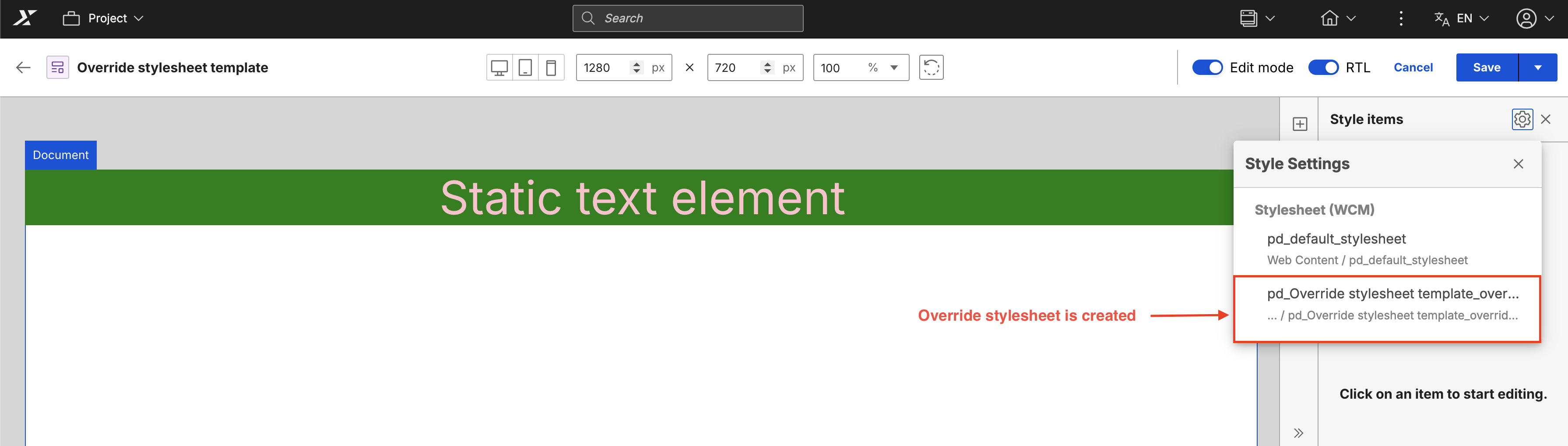

  4. After saving the Presentation Designer, it automatically creates an override stylesheet:

  5. To validate the override style, you can inspect and visit the header and the element. For example:

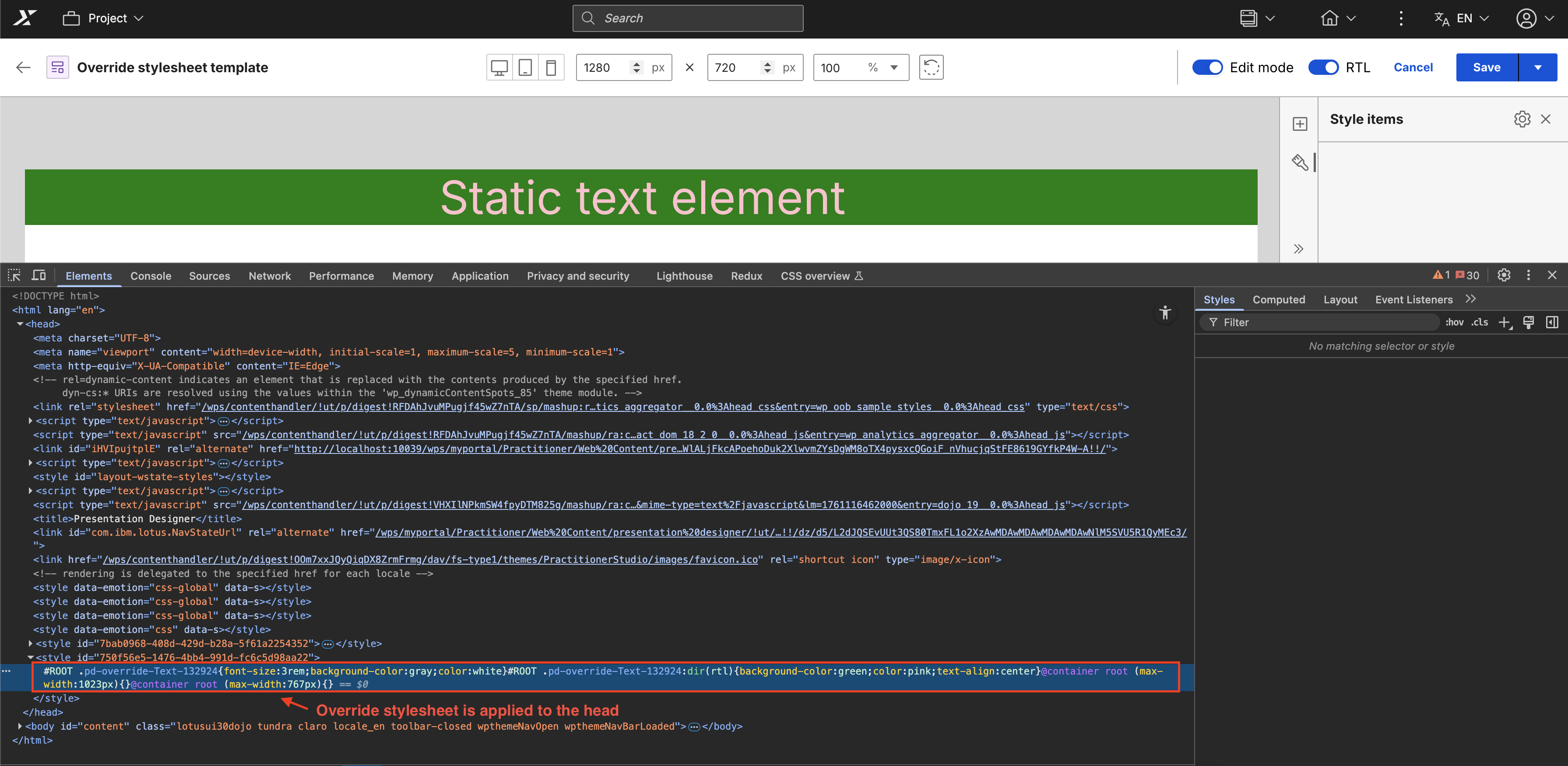

    HTML head for override stylesheet:

    Element styles for the override stylesheet:

    • LTR styles:

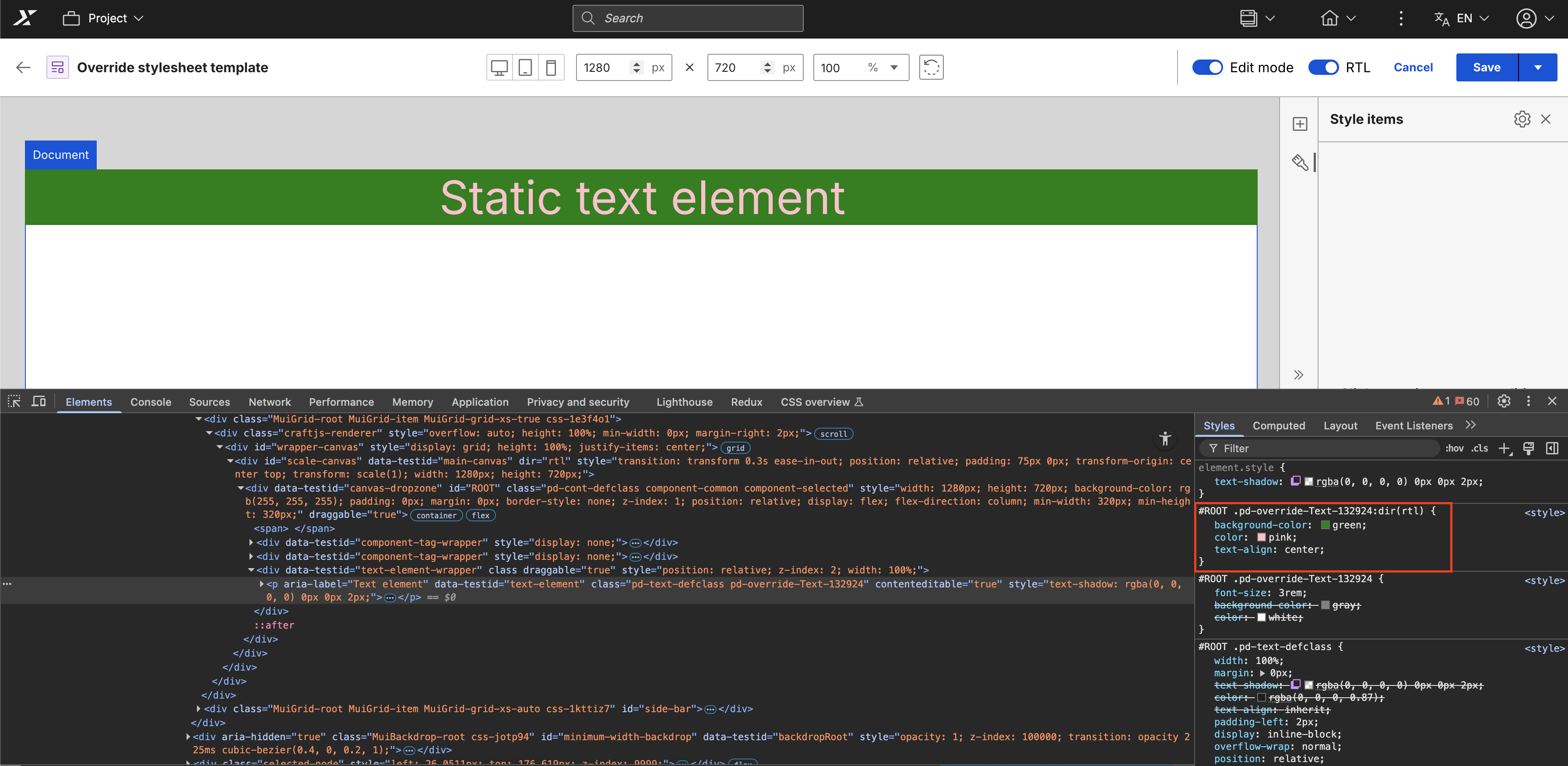

    • RTL styles:

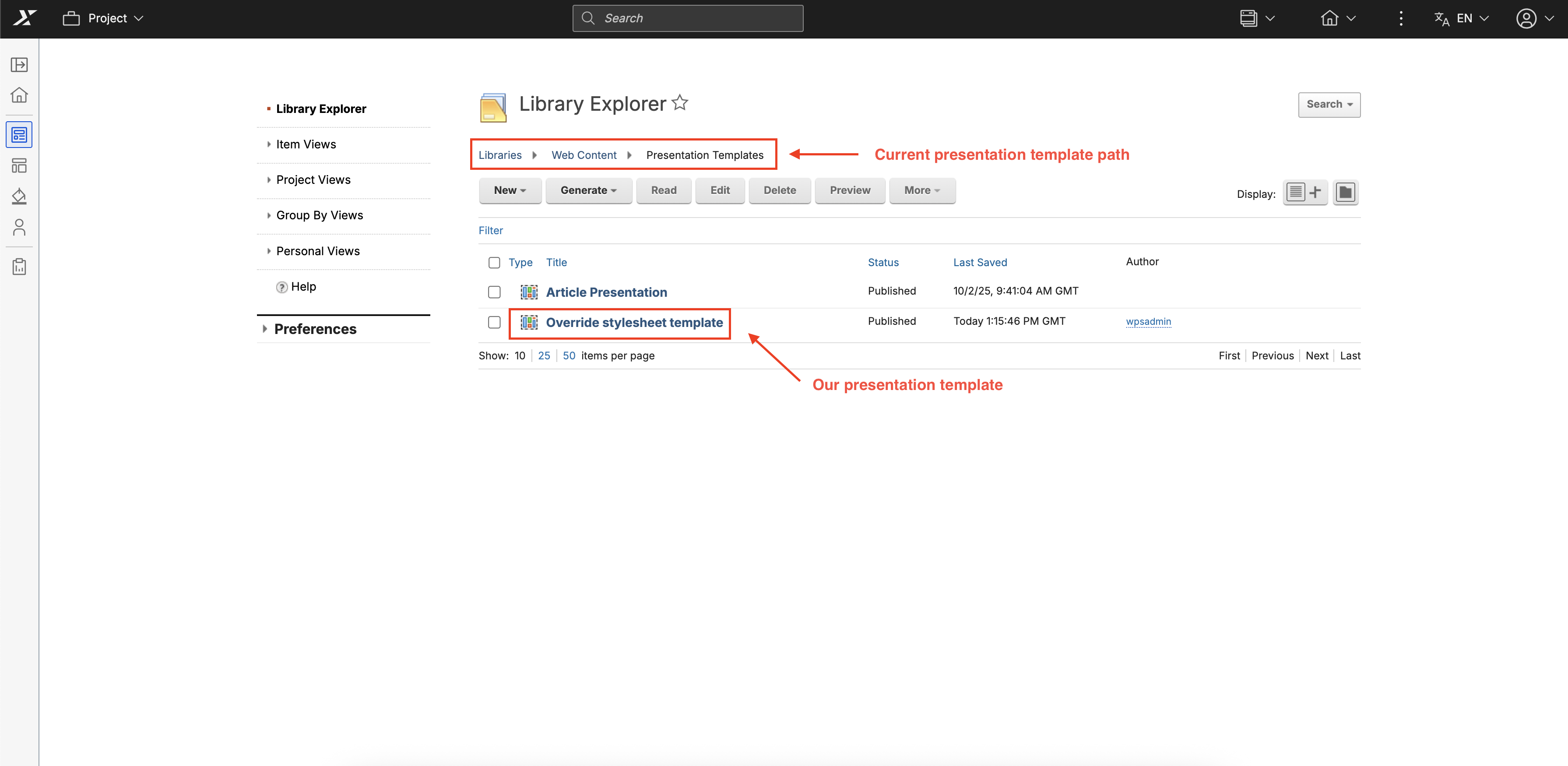

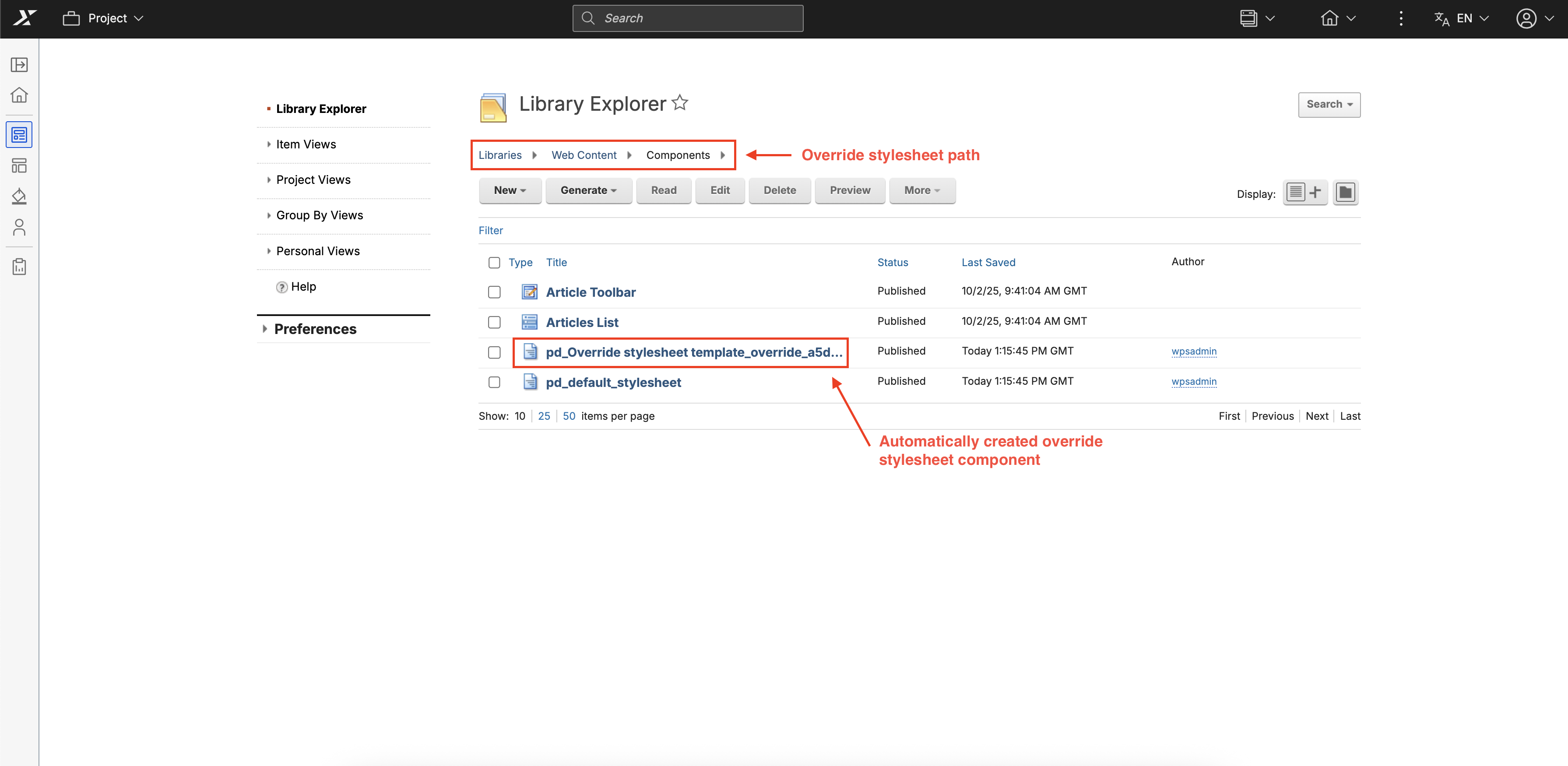

  6. The override stylesheet is found in the Presentation Designer libraries. Its location is determined based on presentation template's location:

  7. The override stylesheet is named based on the following naming convention: pd_[Presentation template name]_override_[(6)uuid]. For example:

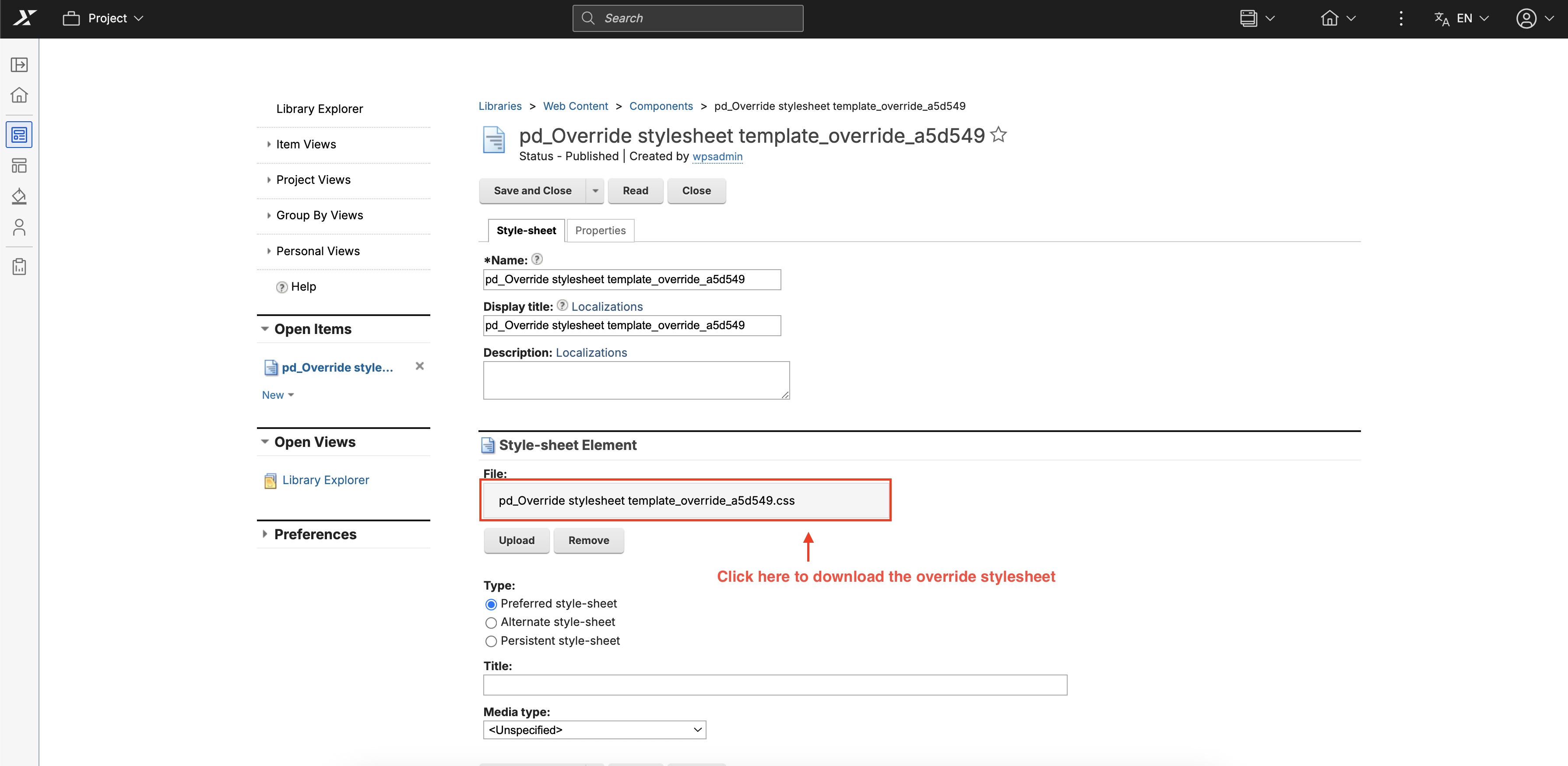

  8. To validate the styles set in the override stylesheet:

    1. Select the file and click Edit.

    2. Click pd_Override stylesheet test_override_a074b2.css to download the file.

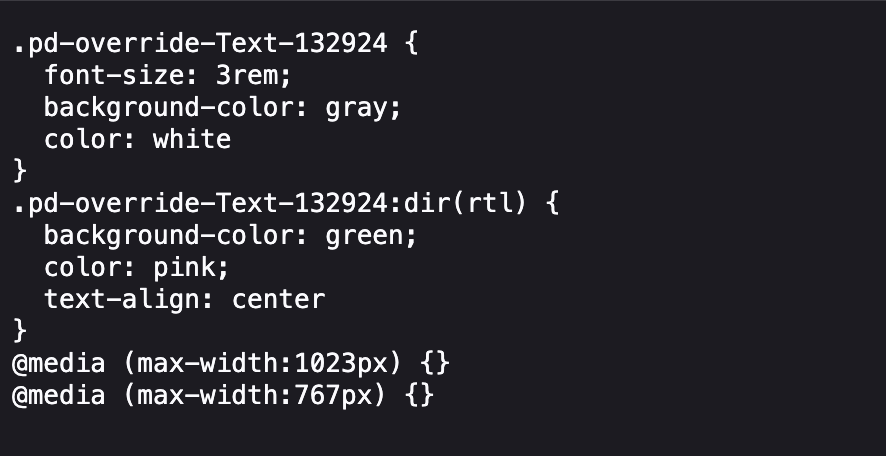

    3. Locate the downloaded file and open it. This contains the CSS data inside the override stylesheet, including both LTR and RTL styles (if RTL-specific styles were applied).
