Modifying Geofences

Based on your requirement, you can modify geofences in the Engagement server.

To modify a Geofence, follow these steps:

1. Click the required geofence in the Geofencing list view.

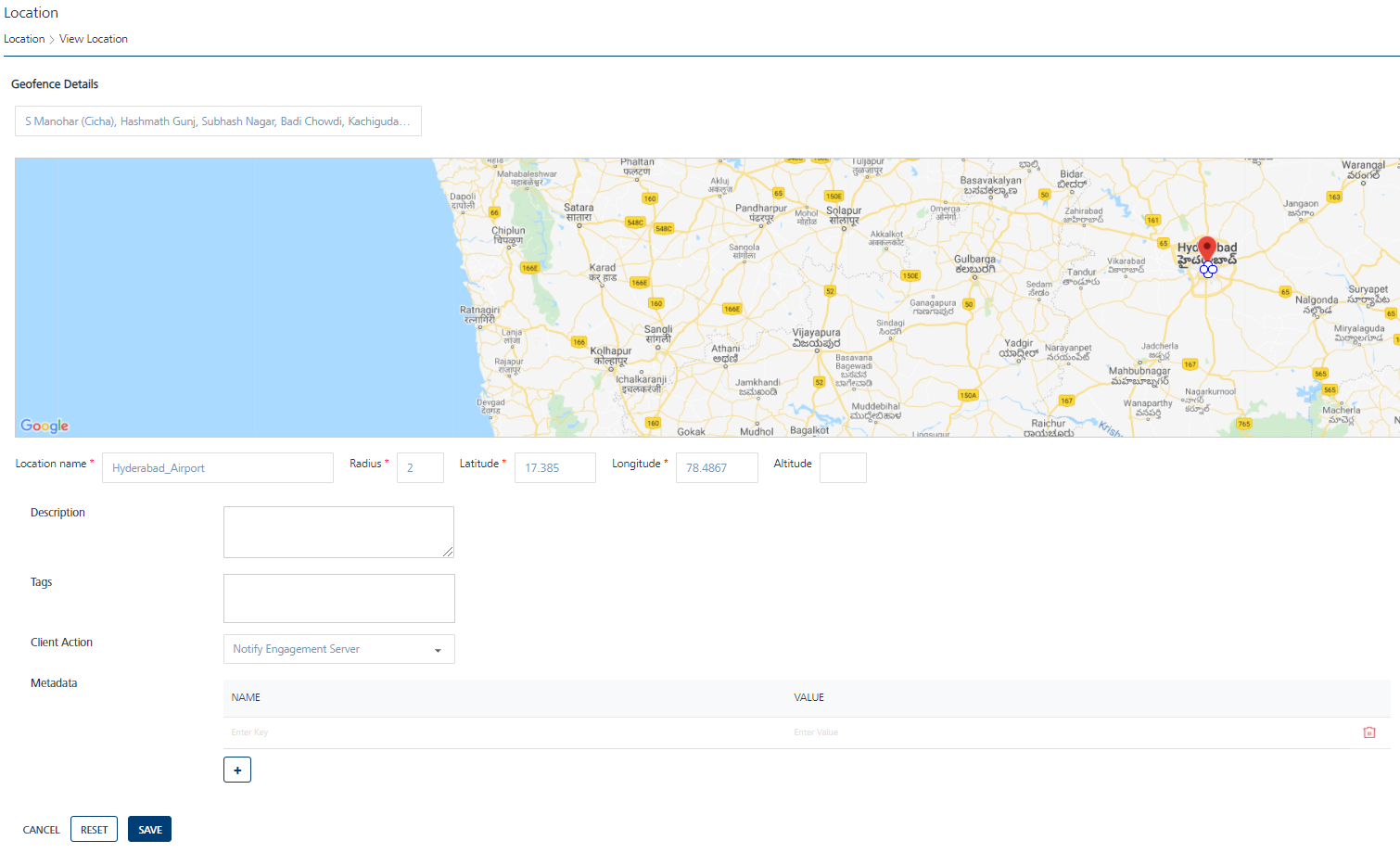

   The View Location page appears.



2. Geofence Details: In the Geofence Details section, you can update the following fields:

   Geolocation Element	Description	Modification Allowed
   Location Name	Location name	Yes
   Radius	Circumference with location area specified	Yes
   Latitude	Latitude is a geographic coordinate that specifies the north–south position of a location on the earth's surface. Geographic coordinates are specified in decimal degrees	Yes
   Longitude	Longitude specifies the east–west position of a location on the earth's surface. Geographic coordinate are specified in decimal degrees	Yes
   Altitude	The height of a location in relation to sea level or ground level	Yes
   Description	Location description	Yes
   Tags	The user-defined tags that assign a label to a geofence for the purpose of identification, such as a ZIP code or an area code	Yes
   Client Action	There are three client actions when a user interacts with the Engagement server:- Notify Engagement Server- Local Client Notification- Custom Business Logic	Yes
   Metadata	Metadata refers to geographical information about media. For example, fileType and colorMode can be used to identify an image associated with a geofence.	Yes

3. Click Cancel if you do not want to save the updated fields. The Location screen appears.

4. Click Reset to remove the details in all the fields. You need to enter the new details in the respective fields.

5. Click Save.

   The updated location appears in the Geofencing list view. The system displays the confirmation message that the location updated successfully.
