Configure a VoltScript Integration Service

Once you have written and packaged your Integration Service code, you need to configure your Integration Service on Volt Foundry and upload your packaged code.

Note

This assumes you have already written your Integration Service code, packaged it up for upload to Volt Foundry, and have a Volt Foundry server available. If you are unfamiliar with this process it is recommended you go through the Introduction to VoltScript for Volt Foundry tutorials.

Creating an Integration Service

1. Log into your Volt Foundry server.

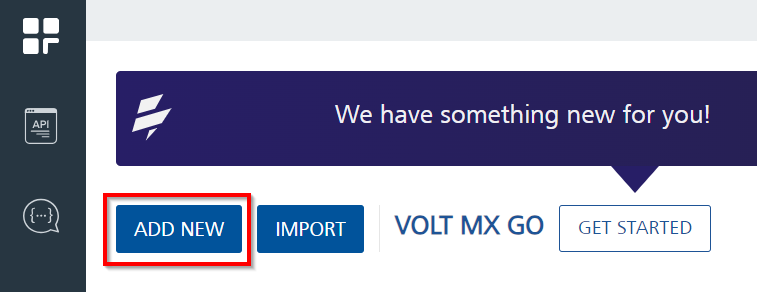

2. On the Apps page, open an existing app or click ADD NEW.



3. On Configure Services tab, click the Integration tab and then click CONFIGURE NEW.

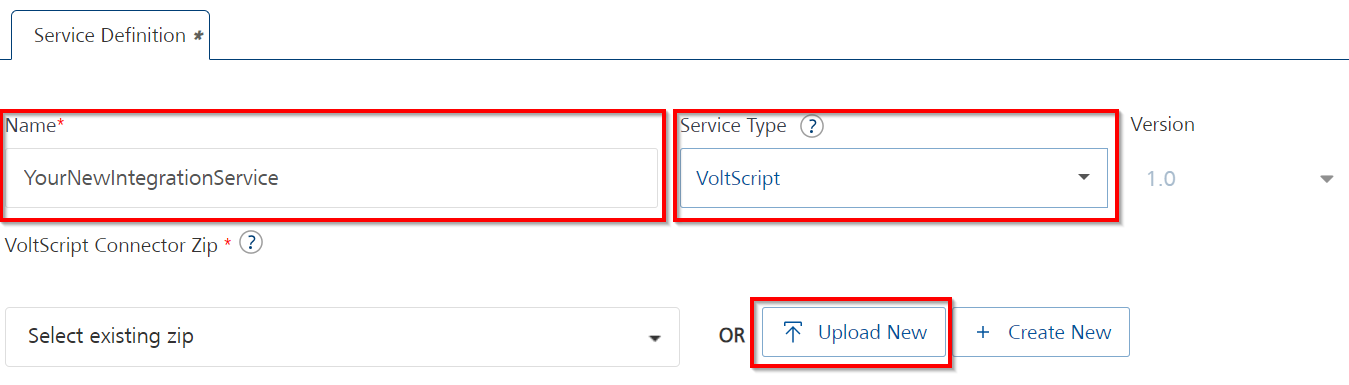

4. Set the Name to the desired name for your Integration Service.

5. Select "VoltScript" under Service Type.

6. Click Upload New to upload your packaged Integration Service ZIP file.

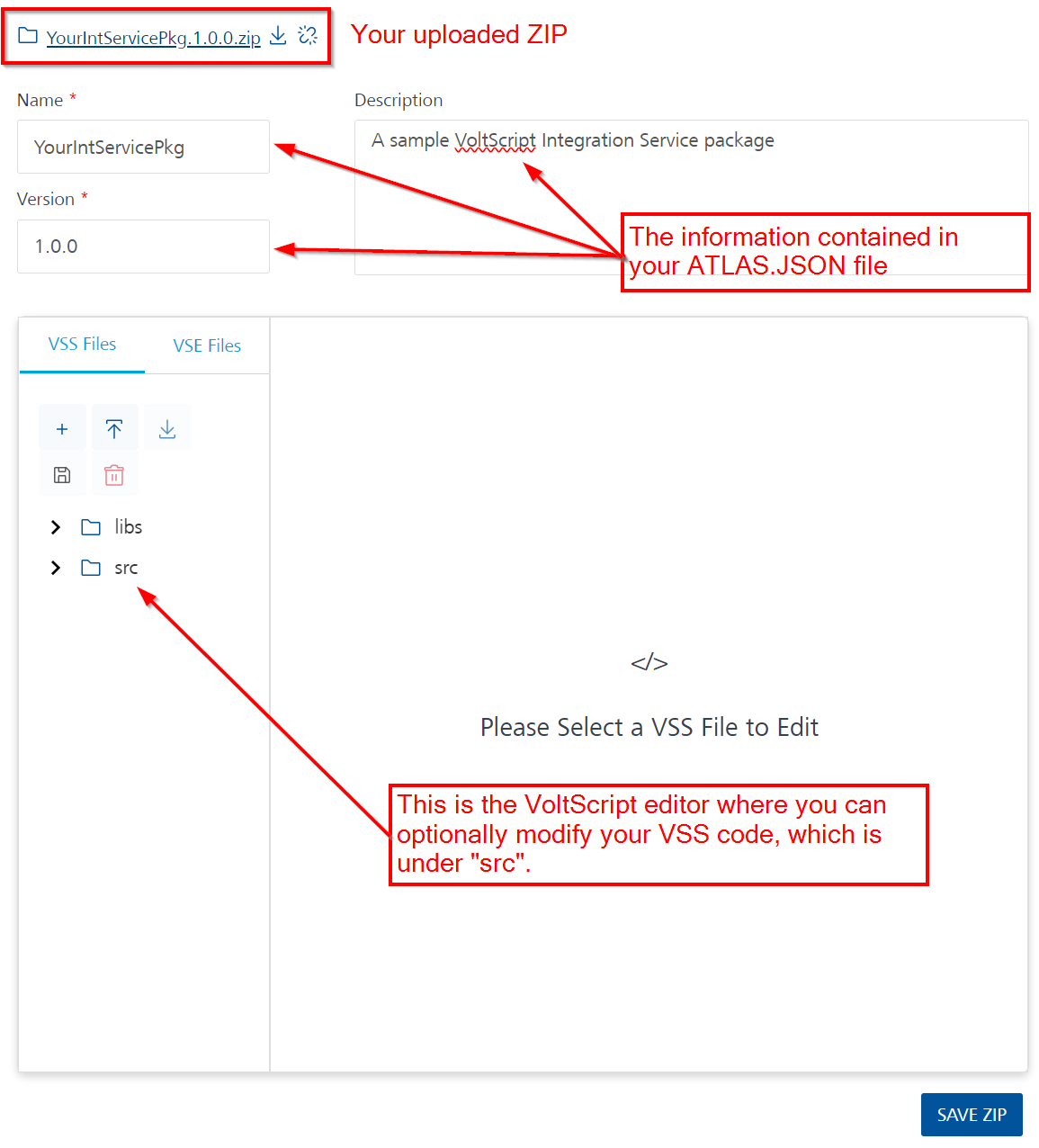

   Once your ZIP file is uploaded you will see it listed, along with the Name, Description, and Version you entered in your package's atlas.json file, as well as an Editor pane where you could optionally modify your VSS code.

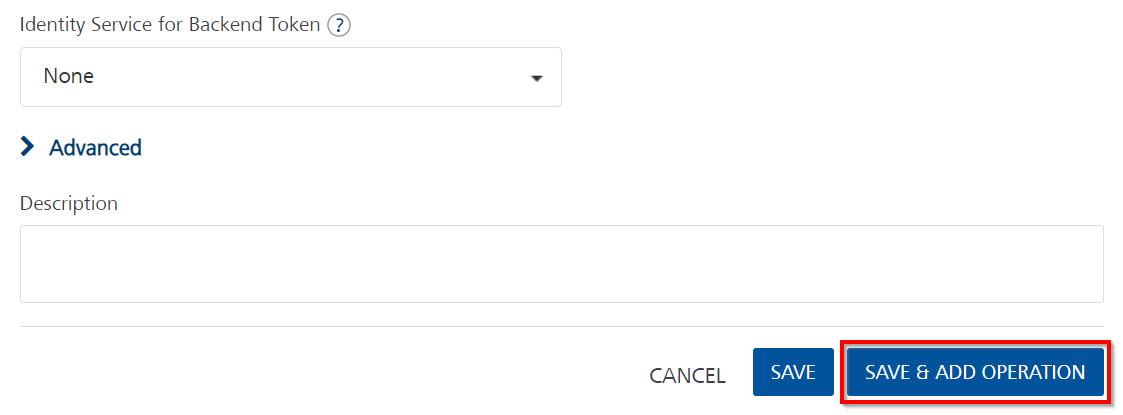

7. If you have configured an Identity Service for your Application, select it under Identity Service for Backend Token.

8. You may optionally enter a Description.
9. Once you're done, click SAVE & ADD OPERATION.

Adding an Operation to an Integration Service

Once you click SAVE & ADD OPERATION you're taken to the Operations List tab, where you can configure a new Operation.

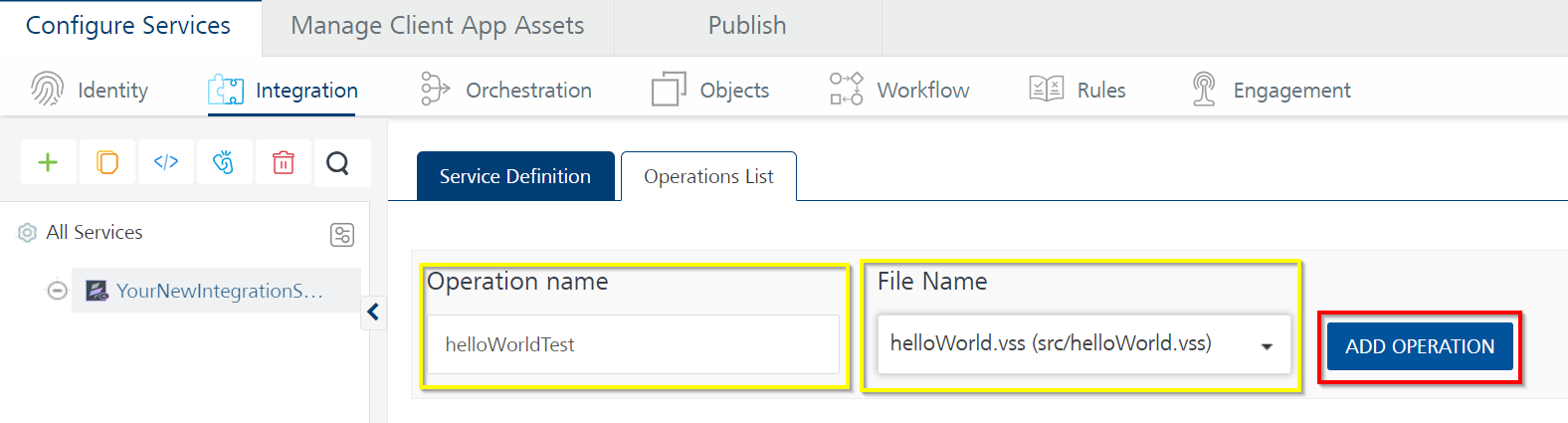

1. Enter a name for your Operation in the Operation Name field.
2. Select the VSS containing the desired Operation in the File Name dropdown.

3. Click ADD OPERATION.

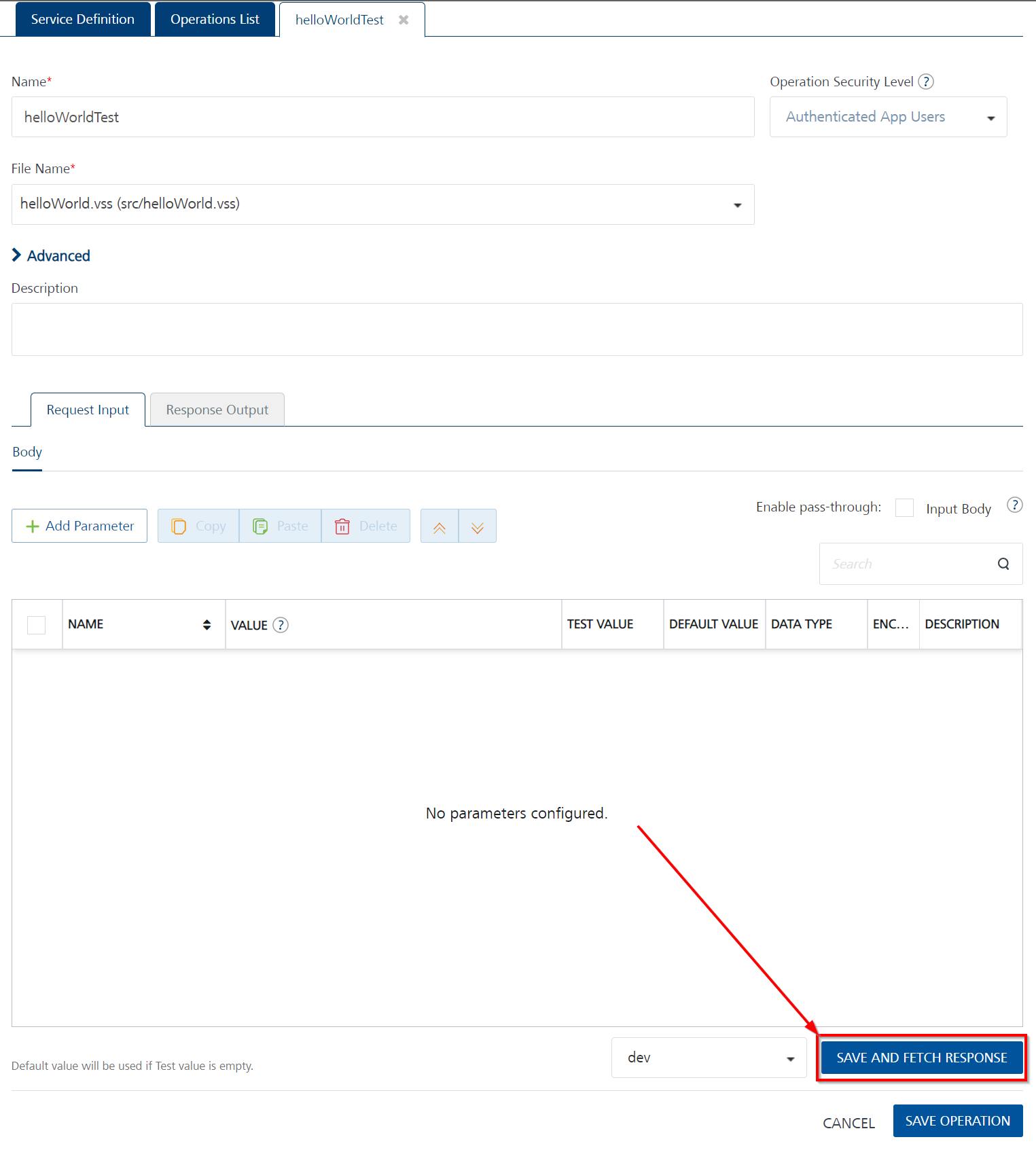

4. After adding your new Operation you can click SAVE AND FETCH RESPONSE to save your operation and test to make sure it works.

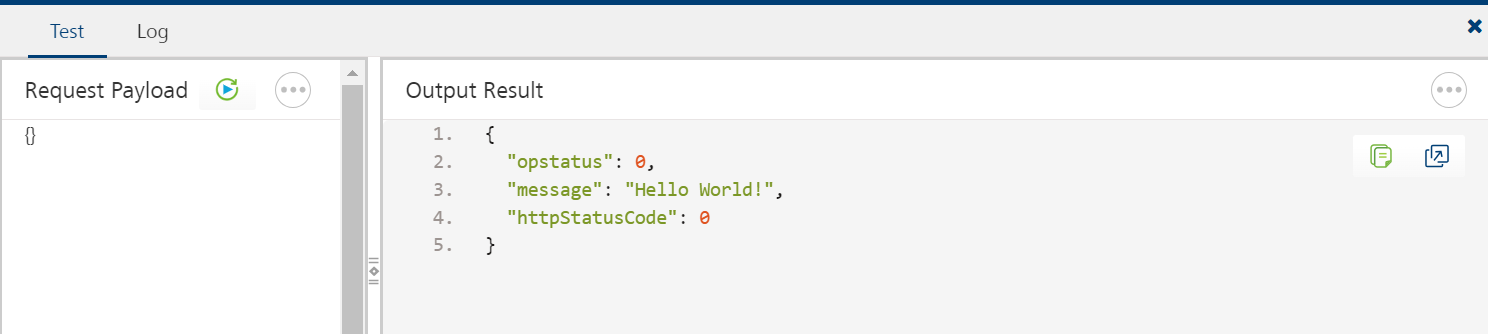

   If everything is successful, you should get an Output Result console window pop up at the bottom of the screen with the results of your operation.



Advanced options

Field	Description
Custom Code Invocation - Preprocessor and Postprocessor	You can add pre and post processing logic to services to modify the request inputs. Only Rules are available for VoltScript integration service preprocessors and postprocessors.
Properties	Additional Configuration Properties allows you to configure service call time out cache response.
Front End API	Front-end API allows you map your endpoint (or) backend URL of an operation to a front-end URL.
Server Events	Using Server Events you can configure this service to trigger or process server side events.

For more details, see Advanced Configuration.

Configure request operation

Integration services accept only form-url-encoded inputs for all the input parameters provided in the service input parameters (request input).

To forward the body of the client's request to backend as it is, select the Enable pass-through input body checkbox.

You can perform the following actions in Request Input tab:

1. Click Add Parameter to add an entry if the entries for input and the output tabs doesn't exist.
2. To make duplicate entries, select the checkbox for the entry, click Copy and Paste.
3. To delete an entry, select the checkbox for an entry and click Delete .

4. To configure the request input tab, provide the following details:

   Field	Description
   Name	It contains a Unique Identifier. Change the name if required.
   Test Value	Enter a value. A test value is used for testing the service.
   Default Value	Enter the value, if required. The default value will be used if the test value is empty.
   Scope	Select Request or Session. It's set to Request by default. Request indicates that the value must be retrieved from the HTTP request received from the mobile device. Session indicates that the value must be retrieved from the HTTP session stored on Volt Foundry. Identity: If this is selected, you can map a request parameter to a value of the response from the identity provider.
   Data Type	Select one of the following data types String - A combination of alpha-numeric and special characters. Supports all formats including UTF-8 and UTF-16 with no maximum size limit. Boolean - A value that can be true or false. Number - An integer or a floating number. Collection - A group of data, also referred as data set.
   Encode	Select the checkbox to enable encoding of an input parameter. For example, the name New York Times would be encoded as New_York_Times when the encoding is set to True. The encoding must also adhere to the HTML URL encoding standards.
   Description	Provide a suitable description.

5. To validate the operation details, click Save and Test.

Configure response operation

In a VoltScript service, the complete response from the VoltScript code is sent to the client device.

Note

By default, the opStatus and httpStatusCode values for VoltScript services are added as 0 and 200.
