Import ViewSchema endpoint into Apache CouchDB data model

About this task

Guides you through importing the ViewSchema endpoint under the SchemaManagement object of a CouchDB database to enable schema management within the imported data model of the configured Apache CouchDB¹ object service. The ViewSchema endpoint allows developers to query and update the first document in a CouchDB view to keep the inferred schema current.

For more information, see Schema Management.

Before you begin

• You have an active CouchDB instance, and your Volt Foundry server is able to connect to the CouchDB host via HTTP/HTTPS.
• You have configured an object service for Apache CouchDB in Volt Foundry, and have generated the data model.

Procedure

1. Log in to Volt Foundry.
2. In the left pane of the Volt MX Foundry Console, click API Management.
3. On the APIs page, navigate to Objects, then select the object service configured for Apache CouchDB into which you want to import the ViewSchema endpoint.

4. On the Data Model tab, click Generate.

   The Import Objects from Backend dialog appears, displaying the CouchDB databases.

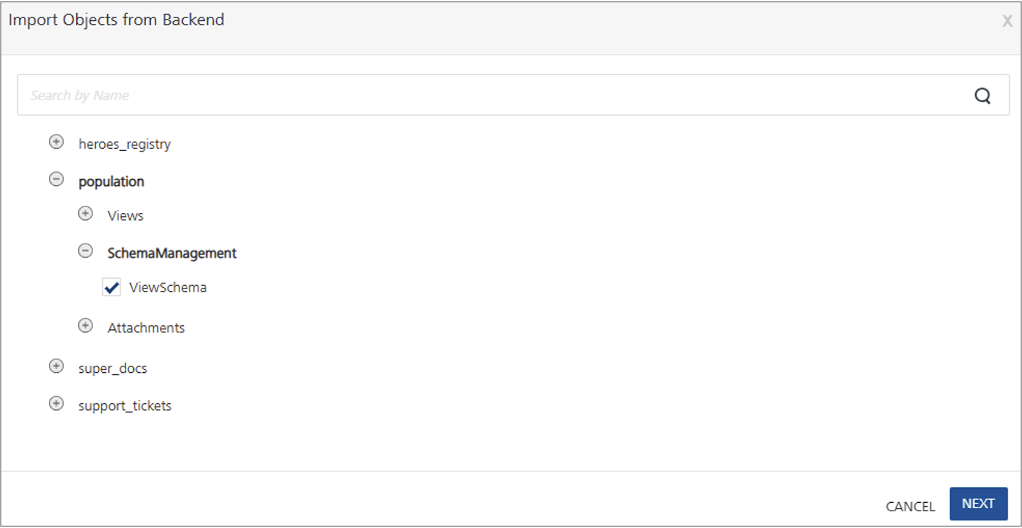

5. Expand the target database, then expand SchemaManagement, and select the checkbox next to ViewSchema.

   In the example image, the population database is the target database.



6. Click Next, then click Generate. The ViewSchema endpoint is now added to the Data Model.



Additional information

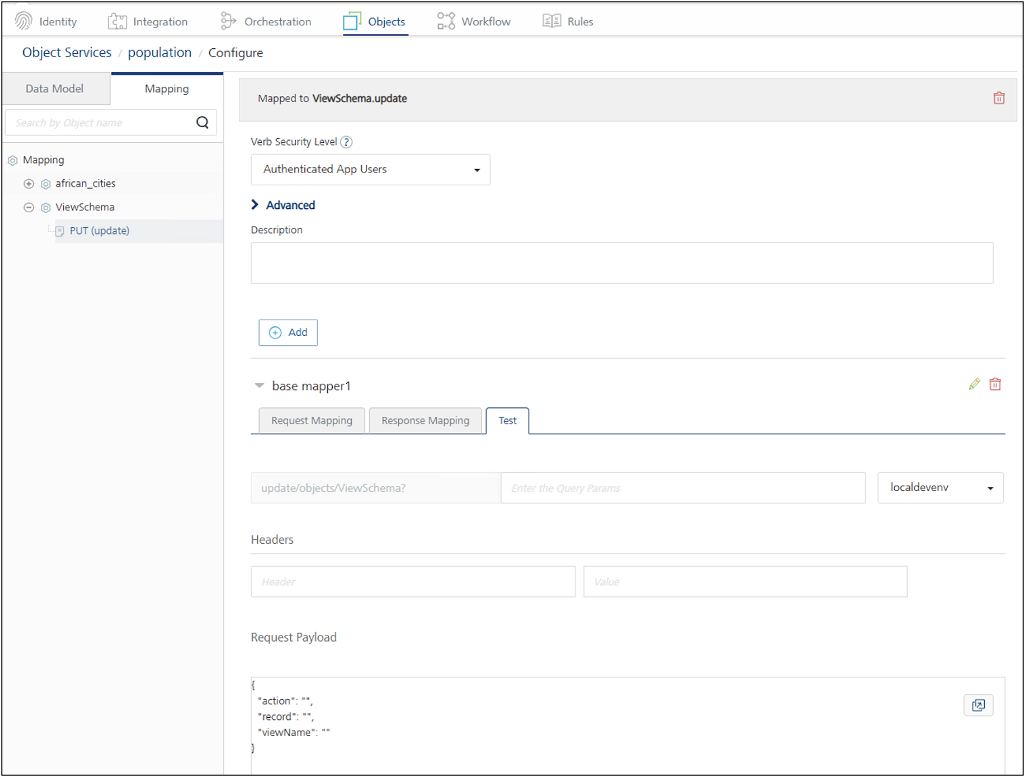

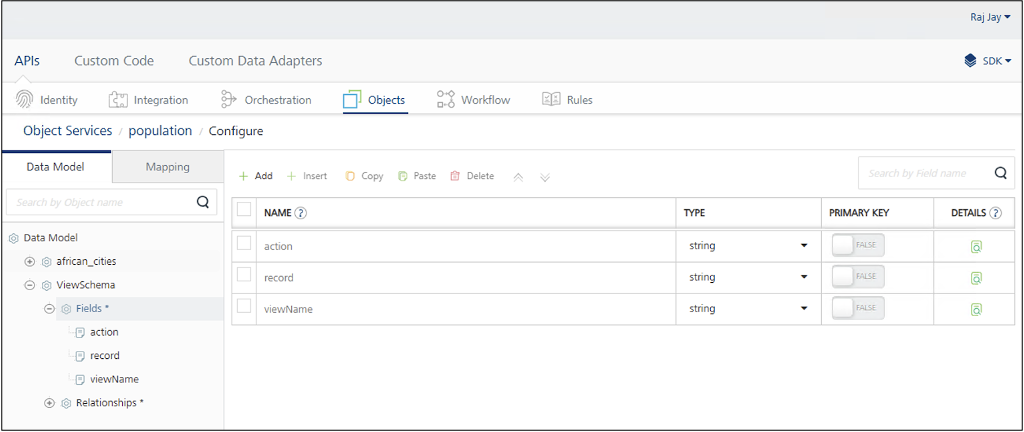

The ViewSchema endpoint includes the fields action, record, and viewName fields, and supports only the PUT method. The Request Payload for the PUT method follows the structure shown in the example image.

---
