Set up the Java Maven project

You will install the Domino REST API dependencies, configure a pom.xml and the Maven standard directory structure. The manual steps are outlined. Your IDE might have some automation that works faster.

Prerequisites

  • You need a matching JDK installed as Domino doesn't ship a JDK;
  • Java 8 for Domino 12
  • Java 17 for Domino 14
  • Java 21 for Domino 14.5
  • Apache Maven latest 3.9 edition
  • Version control, we presume Git for this tutorial
  • An IDE, but you could just use vi if you know how to exit it

Be careful when installing a JDK, it might have license requirements, such as the Oracle version, so stick with OpenJDK.

Locate and install DRAPI dependencies

Maven at compile time relies on dependencies in the ~/.m2 directory structure, so you need to install DRAPI's jar files there manually since they're not published to Maven central and can't be automagically downloaded.

Locate the DRAPI installation directory and change into it. It typically is something like /opt/hcl/keep or C:\Program files\HCL\restapi. Make sure you see the following files:

  • keep-core-*.jar
  • keep-extension-*.jar
  • keep-core-*-javadoc.jar
  • keep-extension-*-javadoc.jar

where * stands for the internal build number, such as 1.38.0 for DRAPI v1.1.2.

You can use the installer

An easy way to get the files is to run the installer using the parameters -a -n -s to "install" the files to a temp directory. Make sure you have the matching installer for your Domino version.

Install the jars to ~/.m2 using this command (all OS):

mvn install:install-file -dfile=keep-core-1.38.0.jar
mvn install:install-file -dfile=keep-core-1.38.0-javadoc.jar
mvn install:install-file -dfile=keep-extension-1.38.0.jar
mvn install:install-file -dfile=keep-extension-1.38.0-javadoc.jar

Create the directory structure

Keep all the code in ~/Code (%HOME%\Code for Windows). Don't put files under version control in your Documents or Desktop folder. You only risk conflicts between version control and cloud sync (Google Drive, OneDrive, iCloud, etc.).

Decide on your organization, usually it's the reverse URL, so when your url is acme.com, you use com.acme as org, which is the entry to your packet hierarchy, for the purpose of this tutorial we will use io.projectkeep. Please do not use it for your actual code.

Decide on your organization. Usually, it's the reverse URL, so when your URL is acme.com, you use com.acme as org, which is the entry to your packet hierarchy. For the purpose of this tutorial, io.projectkeep is used. Do not use it for your actual code.

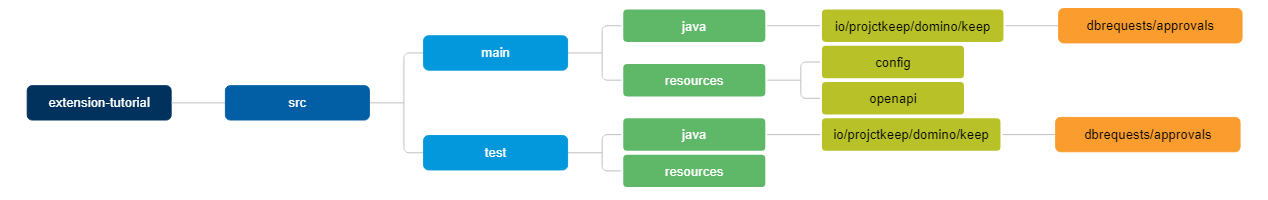

Directory Structure

For macOS or Linux:

mkdir -p extension-tutorial/src/main/java/io/projectkeep/domino/keep/dbrequests/approvals
mkdir -p extension-tutorial/src/main/resources/config
mkdir -p extension-tutorial/src/main/resources/openapi
mkdir -p extension-tutorial/src/test/java/io/projectkeep/domino/keep/dbrequests/approvals
mkdir -p extension-tutorial/src/test/resources

For Windows:

mkdir "extension-tutorial\src\main\java\io\projectkeep\domino\keep\dbrequests\approvals"
mkdir "extension-tutorial\src\main\resources\config"
mkdir "extension-tutorial\src\main\resources\openapi"
mkdir "extension-tutorial\src\test\java\io\projectkeep\domino\keep\dbrequests\approvals"
mkdir "extension-tutorial\src\test\resources"

The structure follows the Maven defaults and the package naming used in DRAPI.

Add the pom.xml

In this tutorial, only the absolutely needed pieces are added. Depending on your corporate standards, you might add additional entries, listing developers, version control, check style, documentation creation, etc.

pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>io.projectkeep.domino.keep</groupId>
    <artifactId>extension-tutorial</artifactId>
    <version>1.0.0-SNAPSHOT</version>
    <packaging>pom</packaging>
    <name>Keep API Extension Example</name>

    <properties>
    <!-- Adjust Domino & Java version to your environment -->
    <domino.version>14.0.0</domino.version>
    <java.version>17</java.version>
    <keep.version>1.38.0</keep.version> <!-- your Keep version -->
    <maven.compiler.plugin.version>3.13.0</maven.compiler.plugin.version>
    <maven.surefire.plugin.version>3.5.1</maven.surefire.plugin.version>
    <mockito.version>5.15.2</mockito.version>
    <restassured.version>5.5.0</restassured.version>
    <smallrye.jandex.version>3.2.3</smallrye.jandex.version>
    <!-- IMPORTANT: Encoding all UTF-8 -->
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>com.hcl.domino.keep</groupId>
            <artifactId>keep-core</artifactId>
            <version>${keep.version}</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>com.hcl.domino.keep</groupId>
            <artifactId>keep-extension</artifactId>
            <version>${keep.version}</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>

    <build>
    <plugins>
                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>${maven.compiler.plugin.version}</version>
                    <configuration>
                        <source>${java.version}</source>
                        <target>${java.version}</target>
                    </configuration>
                </plugin>

                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-surefire-plugin</artifactId>
                    <version>${maven.surefire.plugin.version}</version>
                    <configuration>
                        <testFailureIgnore>false</testFailureIgnore>
                        <includes>
                            <include>**/*Test.java</include>
                            <include>**/*Tests.java</include>
                        </includes>
                        <forkNode
                            implementation="org.apache.maven.plugin.surefire.extensions.SurefireForkNodeFactory" />
                    </configuration>
                </plugin>

                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-surefire-report-plugin</artifactId>
                    <version>${maven.surefire.plugin.version}</version>
                </plugin>

                <plugin>
                    <groupId>org.jetbrains.dokka</groupId>
                    <artifactId>dokka-maven-plugin</artifactId>
                    <version>2.0.0</version>
                    <executions>
                        <execution>
                            <id>site-gen</id>
                            <phase>pre-site</phase>
                            <goals>
                                <goal>javadocJar</goal>
                            </goals>
                        </execution>
                        <execution>
                            <id>package</id>
                            <phase>prepare-package</phase>
                            <goals>
                                <goal>javadocJar</goal>
                            </goals>
                        </execution>
                    </executions>
                </plugin>

                <plugin>
                    <groupId>org.cyclonedx</groupId>
                    <artifactId>cyclonedx-maven-plugin</artifactId>
                    <version>2.9.0</version>
                </plugin>

                <plugin>
                    <groupId>io.smallrye</groupId>
                    <artifactId>jandex-maven-plugin</artifactId>
                    <version>${smallrye.jandex.version}</version>
                    <executions>
                        <execution>
                            <id>make-index</id>
                            <goals>
                                <goal>jandex</goal>
                            </goals>
                        </execution>
                    </executions>
                </plugin>
        </plugins>
    </build>
</project>

Configure version control

Create the file .gitignore in the root of your project. Take inspiration from existing files here or here. It's also strongly recommended to create the file .gitattributes. Once created, you initialize and populate the repository:

git init
git add --all
git commit -m 'initial creation'

By frequently committing to your local Git, you work with the assurance that you can respawn in the event of any issues or errors.

Next

Proceed to OpenAPI specification.
